AM864TW Allied Moulded Products Electrical Enclosures
Part#:AM864TW
Manufacturer:Allied Moulded Products
Category:Electrical Enclosures
Product Lifecycle:Active
Get a quick Quote!

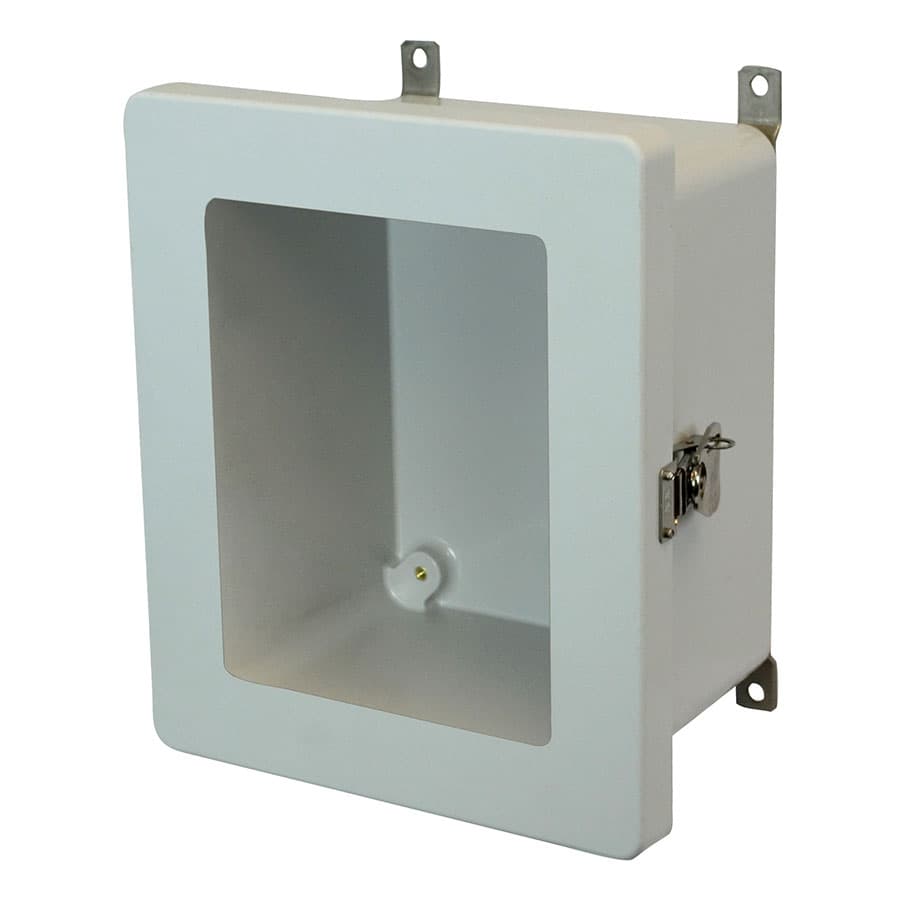

8"x6"x4" AM Series fiberglass wall mount enclosure assembly with hinged window cover and stainless steel twist latch
About the manufacturer: Allied Moulded Products is one of the manufacturers that offers Electrical Enclosures that you can order at Advantage Electric Supply site. Allied Moulded offers a wide range of products for residential and manufactured housing, including fiberglass range/dryer receptacle boxes, floor boxes, lampholders, luminaires, and more. These products are designed to meet the needs of both electrical professionals and DIY enthusiasts.
Check out the AM864TW Allied Moulded Products price in the box on the right side or send a quick quote.
Product Details
- UL Standard 508A
- UL CCN NITW
- UL File No. E120175
- Width 6.13 in
- Height 8 in
- Depth 4.01 in
- NEMA Rating 4X
- Material Fiberglass
- Color Gray
- Type Wallmount
- Door Qty 1
- Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
- Cover Type: Opaque with Viewing Window
- Additional Materials: 316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
- Country of Origin: United States of America
- Application: Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
- Enclosure Type: JIC Size
- Color: Gray (RAL 7035) with clear window
- Carton Weight: 4 lbs
- Usable Depth: 3.6 in
- Features: Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
- Closure Type: Metal Twist Latch
- Carton Quantity: 1
- Brand: AM Series
- UNSPSC: 39121324
- Height: 8 in
- UPC: 85339908708
- Volume: 203 cu. in.
- Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
- Depth: 4.01 in
- Width: 6.13 in
- Mounting Description: Stainless steel feet fastened to back side brass inserts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents AM864TW Specs
