AM363616L3PT Allied Moulded Products Electrical Enclosures
Part#:AM363616L3PT
Manufacturer:Allied Moulded Products
Product Lifecycle:Active
Get a quick Quote!

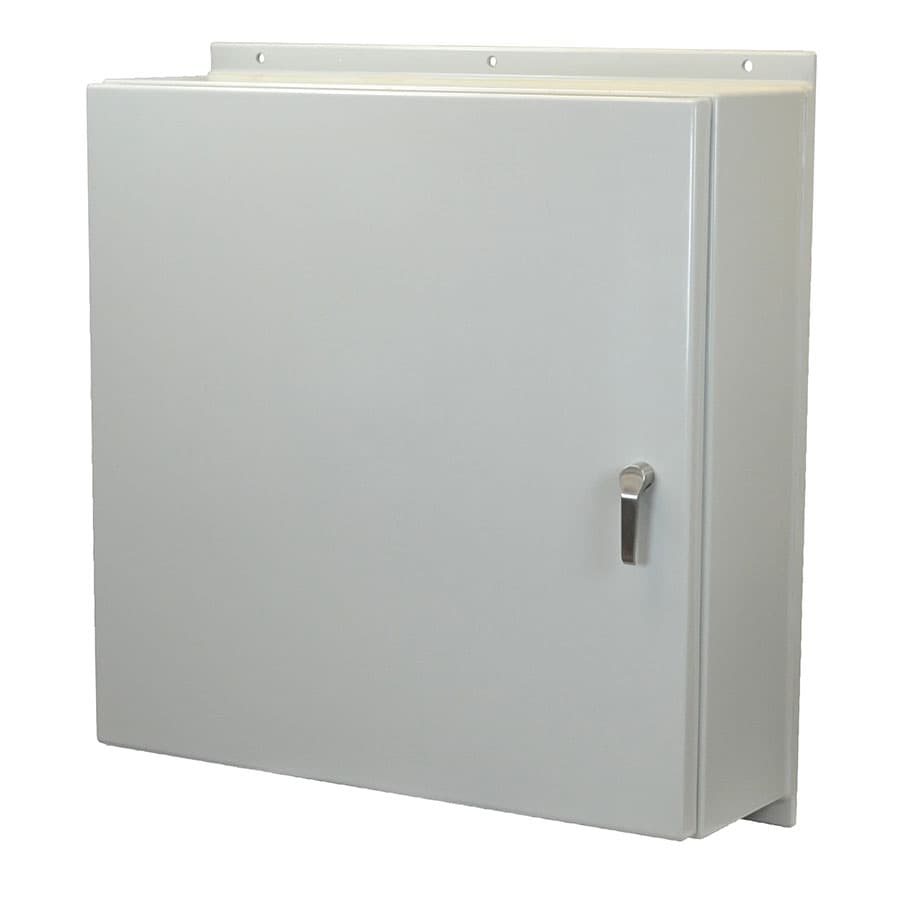

36"x36"x16" Empire Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel 3-point latching handle
About the manufacturer: Allied Moulded Products is one of the manufacturers that offers Electrical Enclosures that you can order at Advantage Electric Supply site. Allied Moulded offers a wide range of products for residential and manufactured housing, including fiberglass range/dryer receptacle boxes, floor boxes, lampholders, luminaires, and more. These products are designed to meet the needs of both electrical professionals and DIY enthusiasts.
Check out the AM363616L3PT Allied Moulded Products price in the box on the right side or send a quick quote.
Product Details
- UL Standard 508A
- UL CCN NITW
- UL File No. E120175
- Width 36.04 in
- Height 36.04 in
- Depth 14.14 in
- NEMA Rating 4X
- Material Fiberglass
- Color Gray
- Type Wallmount
- Door Qty 1
- Color: Gray (RAL 7035)
- Country of Origin: United States of America
- Carton Weight: 81 lbs
- Carton Quantity: 1
- Additional Materials: 316 stainless steel external 3-point latching handle, 316 stainless steel external hardware (hinges/latches/fasteners), EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware
- Features: Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.
- Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
- Application: Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
- Brand: Empire Series
- UNSPSC: 39121324
- Mounting Description: Molded flange
- UPC: 85339994831
- Cover Type: Opaque
- Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
- Usable Depth: 14.27 in
- Height: 36.04 in
- Enclosure Type: Wall Cabinets
- Volume: 20366 cu. in.
- Closure Type: 3-Point Handle
- Depth: 14.14 in
- Width: 36.04 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents AM363616L3PT Specs
