AC/DC Power Supplies

PULS CS5.244 is a DIN rail mounting power supply unit enclosed in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -10 to +70°C and consumes 1.16A at 230Vac input for full 24Vdc output, with a peak inrush current of 38A at 230Vac input. The unit boasts an efficiency of 0.902 at 230Vac input and has dimensions of W32mm x H124mm x D117mm. It features a 130ms start-up delay, an 8ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 25ms rise time under the same conditions with 5mF load capacitance. Protection functions include output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection with a minimum of 10A and a maximum of 14A at load impedance. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.2W at 230Vac input with full output load, and the output stage capacitance is 1800µF. The electrical durability ranges from 42,000 to 408,000 hours depending on the conditions, with a ripple of 50mVpp. This AC/DC power supply unit, part of the C-Line series, includes a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage of 180Vac-264Vac, with a rated current of 6A at 24Vdc in ambient temperatures less than 45°C and 5A at 24Vdc in temperatures less than 60°C. The rated power is 144W in ambient temperatures less than 45°C and 120W in temperatures less than 60°C, with an adjustable output voltage of 24Vdc-28Vdc and a 78ms hold time at 230Vac input.

PULS CT10.241-C1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a current consumption of 0.6A with a 3 x 480Vac input for full 24Vdc output, and 0.7A with a 3 x 400Vac input for full 24Vdc output, with a peak inrush current of 10A for both input conditions. The unit boasts an efficiency of 0.929 and 0.928 for 3x480Vac and 3x400Vac inputs respectively. It is designed to resist harsh environments with its conformal coated PCB. The dimensions are W62mm x H124mm x D117mm. It features a 90ms start-up delay, a 40ms rise time under nominal input with a constant full current load and 0mF load capacitance, and an 85ms rise time under the same conditions with 10mF load capacitance. The power supply unit includes protection functions such as output overvoltage protection and is capable of series/parallel operation for increased output power. It has a power dissipation/loss of 18.3W and 18.6W for 3x480Vac and 3x400Vac inputs respectively, with an output stage capacitance of 6500µF. The electrical durability ranges from 36,000 to 410,000 hours depending on the operating conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter offers a 20% power reserve and is part of the CT-series, featuring a conformal coating, 20% power reserve, and a DC-OK relay contact output. It utilizes screw-clamp connections and supports a supply voltage of 323Vac-576Vac with a wide range, 3-phase input. The rated current is 12A at 24Vdc from -25 to +45°C and 7.5A at 24Vdc from -25 to +70°C, with a rated power of 240W. The output voltage is adjustable between 24Vdc and 28Vdc, and the hold time is 54ms at 3x480Vac input and 34ms at 3x400Vac input.

PULS ML100.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 7.5A at 12Vdc. This unit features spring-clamp connections for secure and efficient connectivity. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 184Vac to 264Vac across various nominal values (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac) with auto-selection and a frequency range of 47-63Hz, as well as DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML100.102 is housed in a PC / ABS blend, ensuring durability, and measures W72.5mm x H75mm x D103mm. It is suitable for single-phase (1AC) or DC networks, with a net width of 72.5 mm. The unit's rated power is 90W, and it provides an adjustable output voltage range of 12Vdc to 15Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of 0.885 with a 230Vac input, and has a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are calculated at 11.7 W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

PULS ML50.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac; 47-63Hz), a turn-ON voltage of 65Vac, and a shutdown voltage of 55Vac. Additionally, it can operate with DC supply voltages between 82Vdc and 380Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The PSU's housing is made from a PC / ABS blend, and it is compatible with single-phase (1AC) or DC networks. Its dimensions are W45mm x H75mm x D91mm, and it has a net width of 45 mm. The rated power is 50W, and the output voltage is adjustable between 24Vdc and 28Vdc, with a 400mV turn-ON overshoot. It features protection functions including an NTC (input inrush current limiter) and boasts efficiencies of 0.89 (230Vac input), 0.884 (120Vac input), and 0.875 (100Vac input). The current consumption can reach up to 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The PSU has a 32ms start-up delay for 100-230Vac input, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 45-60ms under the same conditions with 2mF load capacitance. Power dissipation/losses are calculated at 6.2 W, and the electrical durability is rated at a minimum of 54kh (54,000 hours) at +40°C. The ripple is specified as 50mVpp (20Hz...20MHz; 50Ω), and the output stage capacitance is 1600 µF.

PULS ML50.101 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is optimized for parallel use with a DC-OK relay contact output. This unit has a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.101 features a PC / ABS blend housing, is compatible with single-phase (1AC) or DC networks, and has dimensions of W45mm x H75mm x D91mm. It offers a rated power of 50W and an adjustable output voltage range from 24Vdc to 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency is rated at 0.885 with a 230Vac input, and it has a maximum current consumption of 17A inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The unit exhibits a 32ms start-up delay, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a 45-60ms rise time with 2mF load capacitance. Power dissipation/losses are calculated at 6.8W, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600μF.

PULS ML50.111 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a plug connector NEC Class 2 optimized for parallel use, including a DC-OK relay contact output. The unit has a rated current of 2.1A at 24Vdc and utilizes screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.111 is housed in a PC / ABS blend, measuring 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 50W, and provides an adjustable output voltage from 24Vdc to 28Vdc with a 400mV turn-ON overshoot. Protection is ensured by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.885 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with power dissipation/losses at 6.8W and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. The output stage capacitance is 1600µF.

PULS QS10.241-D1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and includes an extended DC input for the same power reserve, along with a DC-OK relay contact output. The unit provides a rated current of 10A at 24Vdc and 9A at 28Vdc, utilizing spring-clamp connections for secure attachment. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS10.241-D1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing for durability. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 240W at 24V, 252W at 28V, and a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions against overvoltage, overload, and short-circuit conditions. Efficiency rates vary with input voltage, achieving up to 0.935 at 230Vac. The unit exhibits a start-up delay between 340-800ms, with a hold time of 28ms at 230Vac input, and demonstrates electrical durability up to 200,000 hours at 25°C with a 10A output and 1AC 230Vac input. Output ripple is maintained at 50mVpp, with an output stage capacitance of 7000µF.

PULS QS10.481-D1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and includes an extended DC input for enhanced versatility. The unit provides a rated current of 5A at 48Vdc and 4.3A at 56Vdc, with a derating of 6W from +60°C to +70°C. Connection is facilitated through spring-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a broad spectrum. The QS10.481-D1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, and is housed in aluminium for durability. It is compatible with single-phase AC or DC networks and offers a rated power of 240W, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 56Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output power. Efficiency rates vary by input voltage, achieving up to 0.92 at 230Vac. The unit exhibits a peak inrush current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 28ms at 230Vac input. Power dissipation is noted at 20.9W for 230Vac input under full load. Electrical durability spans up to 228000 hours under specific conditions, with a ripple of 100mVpp and an output stage capacitance of 3000µF.

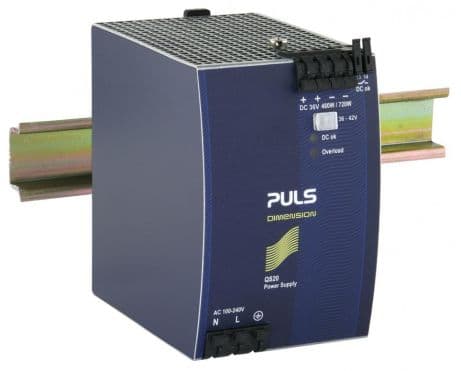

PULS QS20.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and boasts ATEX approval and conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS20.241-A1, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, with an aluminium housing that contributes to its robustness. It delivers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds, and an adjustable output voltage between 24Vdc and 28Vdc. Protection features include output overvoltage protection and active input inrush current limiting, alongside capabilities for overload, short-circuit protection, and series or parallel operation for increased output power. The unit demonstrates high efficiency rates up to 93.9% depending on the input voltage and is designed for single-phase or DC networks. Electrical durability is rated up to 200,000 hours at 25°C with a 20A output, and the power supply unit includes a comprehensive protection function suite to ensure stable operation under various conditions.

PULS QS20.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure and efficient connectivity. It supports a supply voltage range of 180Vac to 264Vac, with specific nominal values including 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz. The QS20.244, part of the Q-series, measures 70mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase networks and offers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage, overload, and short-circuit conditions. It allows for series or parallel operation to increase output power, with a notable efficiency of 0.945 at 230Vac input. The unit's current consumption peaks at 52A max during inrush at 230Vac, with a start-up delay of 140ms, and offers a hold time of 46ms at 230Vac input. Power dissipation is calculated at 28.3W under full output load at 230Vac input. Its electrical durability spans up to 307,000 hours at 40°C with a 10A output. The QS20.244 also features a ripple of 100mVpp across a 20Hz to 20MHz range and an output stage capacitance of 8500µF.
