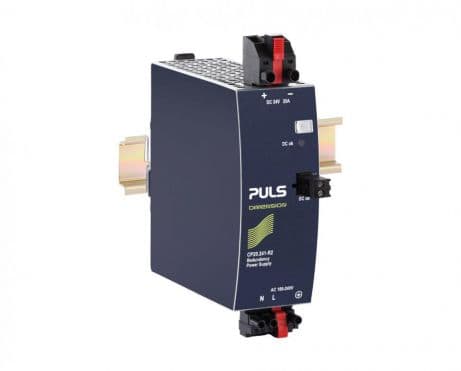

| CP20.241-R2-C1 PULS CP20.241-R2-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 48 mm. The unit consumes current differently based on the input, including 2.25A with 230Vac input, 4.28A with 120Vac input, 5.17A with 100Vac input, and 4.64A with 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A and 12A for 230Vac and 120Vac inputs respectively. It features an IP20 degree of protection and achieves efficiencies of 0.952 and 0.938 with 230Vac and 120Vac inputs, respectively. The power supply is resistant to harsh environments, thanks to its conformal coated PCB, and has dimensions of W48mm x H124mm x D127mm. It includes a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and resistance to back-feeding loads up to 35V. Power dissipation losses are 24.2W and 31.7W for 230Vac and 120Vac inputs, respectively, with an output stage capacitance of 8000 µF. Electrical durability varies with conditions, offering up to 465,000 hours at 25°C with a 10A output and 1AC 230Vac input. The ripple is specified as 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, hot-swappable connectors, ATEX approval, and a 20% power reserve. It supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific shutdown and turn-on voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It provides a fixed 24Vdc output voltage and includes a 32ms hold time at standard AC inputs. | Puls | | |
| CP20.481 PULS CP20.481 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 48mm. The unit features a current consumption of 5.5A peak max. inrush at 230Vac input and 12A peak max. inrush at 120Vac input. Its efficiency rates are 0.963 at 230Vac input, 0.95 at 120Vac input, and 0.944 at 100Vac input. The dimensions of the CP20.481 are W48mm x H124mm x D127mm. It has a 450ms start-up delay and a rise time of 120ms under nominal input with a constant full current load and 0mF load capacitance, and 170ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.4W at 230Vac input and 25.1W at 120Vac input with full output load. The output stage capacitance is 2500µF. Electrical durability varies with conditions, reaching up to 509000 hours at 25°C and 5A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 10A at 48Vdc, and a rated power of 480W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input. It is suitable for single-phase (1AC) or DC networks. | Puls | | |

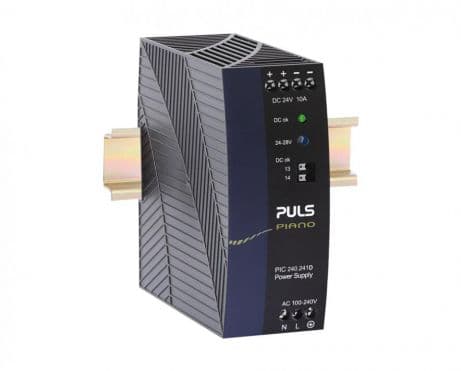

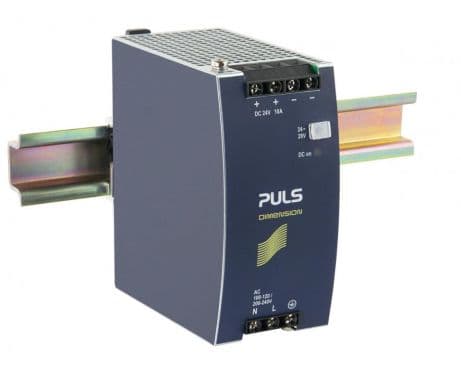

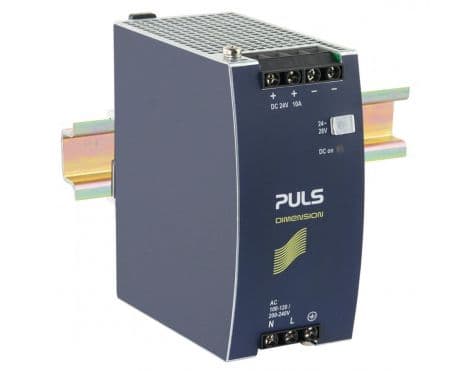

| PIC480.241C Power Supply, 480W, AC 200-240V input, 1 phase, 24-28Vdc output, 20A, DC-OK relay contact | Puls | | |
| CP20.241-R1 PULS CP20.241-R1 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -40 to +70°C. It features a net width of 48 mm and offers a degree of protection rated at IP20. This unit consumes current at rates of 2.25A with a 230Vac input, 4.28A with a 120Vac input, 5.17A with a 100Vac input, and 4.64A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A at 230Vac input and 12A at 120Vac input. It boasts an efficiency of 0.952 at 230Vac input and 0.938 at 120Vac input. The dimensions of this power supply are W48mm x H124mm x D127mm. It has a 450ms start-up delay for 100-230Vac input, with rise times of 145ms and 160ms under specified conditions. The CP20.241-R1 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation losses are 24.2 W and 31.7 W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 8000 µF. Electrical durability ranges from 25,000 to 465,000 hours under various conditions. The ripple is specified at 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, ATEX approval, and features a 20% power reserve, DC-OK relay contact output, and spring-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It is suitable for single-phase (1AC) or DC networks, providing a rated power of 576W at temperatures up to +45°C, and features a fixed 24Vdc output voltage with a 1000mV turn-ON overshoot and a hold time of 32ms. | Puls | | |
| CP20.241-S1 PULS CP20.241-S1 is a power supply unit designed for DIN rail mounting with an aluminium housing. It features a net width of 48 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.956 at 230Vac input, 0.942 at 120Vac input, and 0.936 at 100Vac input. The dimensions of the CP20.241-S1 are W48mm x H124mm x D127mm. It includes a 450ms start-up delay and a rise time of 145ms to 160ms under nominal input conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit current protection. It supports series and parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. The power dissipation/losses are 22.1 W at 230Vac input and 29.6 W at 120Vac input, with an output stage capacitance of 8500 µF. Its electrical durability ranges from 31,000 to 488,000 hours depending on the operating conditions. The ripple is 50mVpp, and it functions as an AC/DC power supply unit with a 20% power reserve. The CP-series unit has ATEX approval, a DC-OK relay contact output, and spring-clamp connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with a rated current of 20A at 24Vdc. It is suitable for single-phase (1AC) or DC networks, has a rated power of 480W, and an adjustable output voltage of 24Vdc-28Vdc. The hold time is 32ms at 120/230Vac input. | Puls | | |
| | Puls | | |
| ML30.100 PULS ML30.100 is a power supply unit designed for AC/DC conversion with a primary function to supply power. It supports DIN rail mounting for easy installation and operates within an ambient air temperature range of -10 to +70°C. This unit is designed according to NEC Class 2 standards, offering a rated current of 1.3A at 24Vdc, and utilizes spring-clamp connections for secure attachment. It accepts a wide range of supply voltages from 85Vac to 264Vac (covering standard voltages like 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz, with a turn-ON voltage of 46Vac and a shutdown voltage of 44Vac) and also operates on DC supply voltages from 88Vdc to 375Vdc. The ML30.100 is housed in a PC/ABS blend, ensuring durability, and measures 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 30W, and provides an adjustable output voltage range of 24Vdc to 28Vdc with a 250mV turn-ON overshoot. The unit features protection functions including an NTC for input inrush current limiting, achieves an efficiency of 0.875 at 230Vac input, and has a maximum inrush current consumption of 17A at 120Vac input and 35A peak at 230Vac input. Power dissipation/losses are rated at 4.3W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω. | Puls | | |
| QT40.241 PULS QT40.241 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features a DC-OK relay contact output and offers rated currents of 40A at 24Vdc and 34.3A at 28Vdc, with a power derating from 24W at +60°C to +70°C. Connection is facilitated through screw-clamp connections. The supply voltage accommodates a wide range of AC inputs from 323Vac to 576Vac, including nominal values of 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac at 47-63Hz, with a 3-phase input. It has a turn-ON voltage of 3 x 305Vac and a shutdown voltage of 3 x 275Vac in steady-state conditions. The QT40.241, part of the Q-series, measures 110mm in width, 124mm in height, and 127mm in depth, and is housed in aluminium. It is designed for a 3-phase network, with a net width of 110mm. The rated power is 960W at both 24Vdc and 28Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with a turn-ON overshoot of 500mV. Protection functions include output overvoltage protection, active input inrush current limiting, and overload/short-circuit protection. It supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 35V. The efficiency rates are 0.952 and 0.953 for 3x480Vac and 3x400Vac inputs, respectively. Peak inrush current consumption is 6A for both 3x400Vac and 3x480Vac inputs. The start-up delay ranges from 500 to 600 seconds, with rise times of 35ms and 40ms under nominal input conditions. The hold time is 25ms for both 3x480Vac and 3x400Vac inputs. Power dissipation losses are 48.4W and 47.3W for 3x480Vac and 3x400Vac inputs, respectively, at full output load. Electrical durability varies with temperature and load conditions, offering up to 322,000 hours of operation at 25°C and 20A output under 3AC 400Vac input. The ripple is 100mVpp across a 20Hz to 20MHz range, with an output stage capacitance of 10200µF. | Puls | | |
| QS20.241 PULS QS20.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values listed for both. The QS20.241, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, and is housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offers a rated power of 480W with a short-term capacity of 720W for up to 4 seconds, and provides an adjustable DC output voltage of 24Vdc-28Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection. The unit allows for series or parallel operation for increased output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, and the unit exhibits specific current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance characteristics as detailed in the specifications. | Puls | | |
| ML50.101 PULS ML50.101 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is optimized for parallel use with a DC-OK relay contact output. This unit has a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.101 features a PC / ABS blend housing, is compatible with single-phase (1AC) or DC networks, and has dimensions of W45mm x H75mm x D91mm. It offers a rated power of 50W and an adjustable output voltage range from 24Vdc to 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency is rated at 0.885 with a 230Vac input, and it has a maximum current consumption of 17A inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The unit exhibits a 32ms start-up delay, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a 45-60ms rise time with 2mF load capacitance. Power dissipation/losses are calculated at 6.8W, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600μF. | Puls | | |
