GH2011 WEG DC Motors

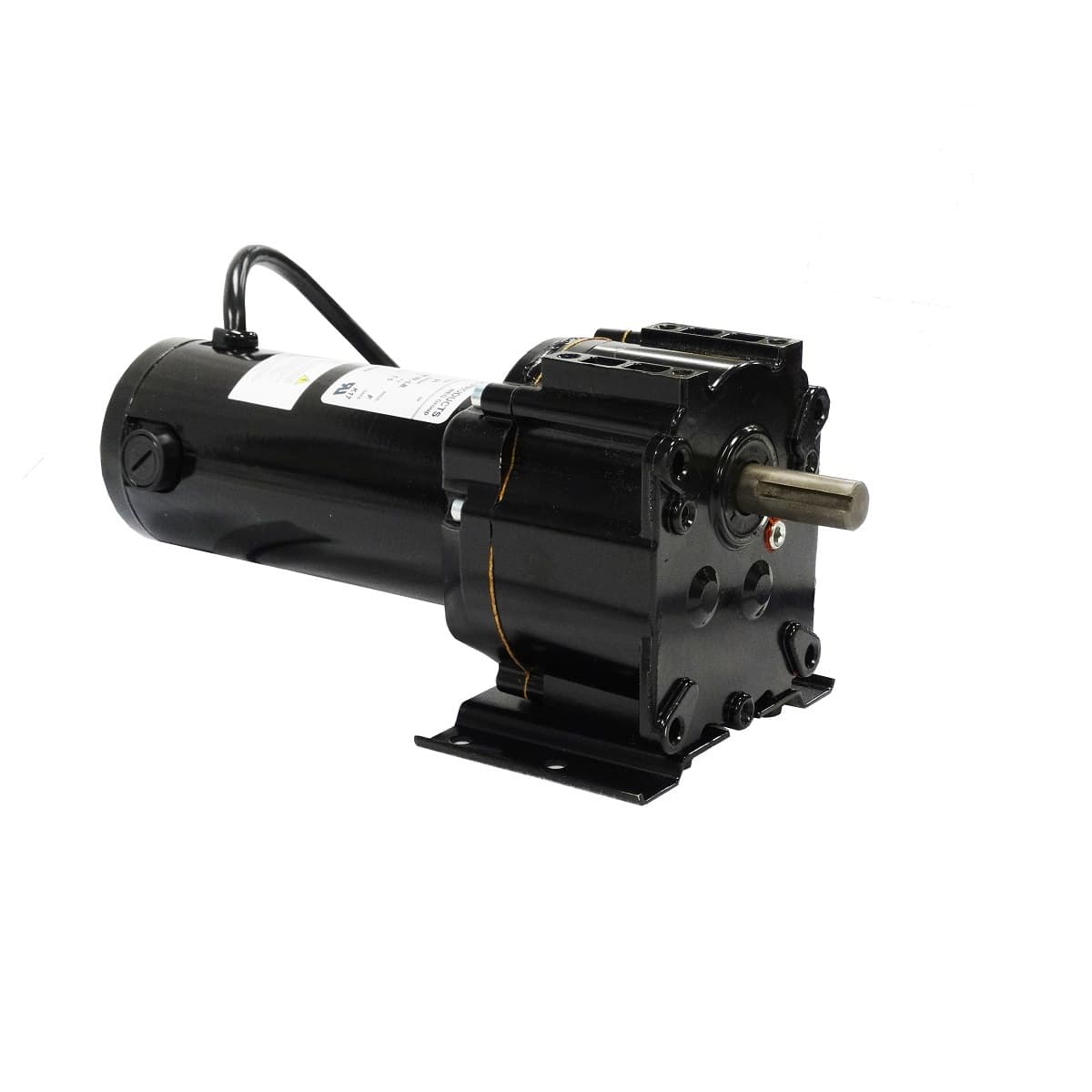

WEG GH2011 GH2011 1/8 HP 90 Vcc 4P
WEG

Part#:GH2011

Manufacturer:WEG

Alt. Part#:7909492478799

Product Lifecycle:Active

Get a quick Quote!

GH2011 1/8 HP 90 Vcc 4P

Check out the GH2011 WEG price in the box on the right side or send a quick quote.

Product Details

  • Number of Poles
    4 Pole
  • Voltage
    90 Vcc
  • Output Rating
    45299 HP
  • Current
    1.55 A
  • Synchronous speed
    1750 rpm
  • Number of poles
    4
  • Type
    GH2011
  • Output rating
    1/8 HP
  • Degree of Protection
    IP55
  • Voltage
    90 Vcc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
