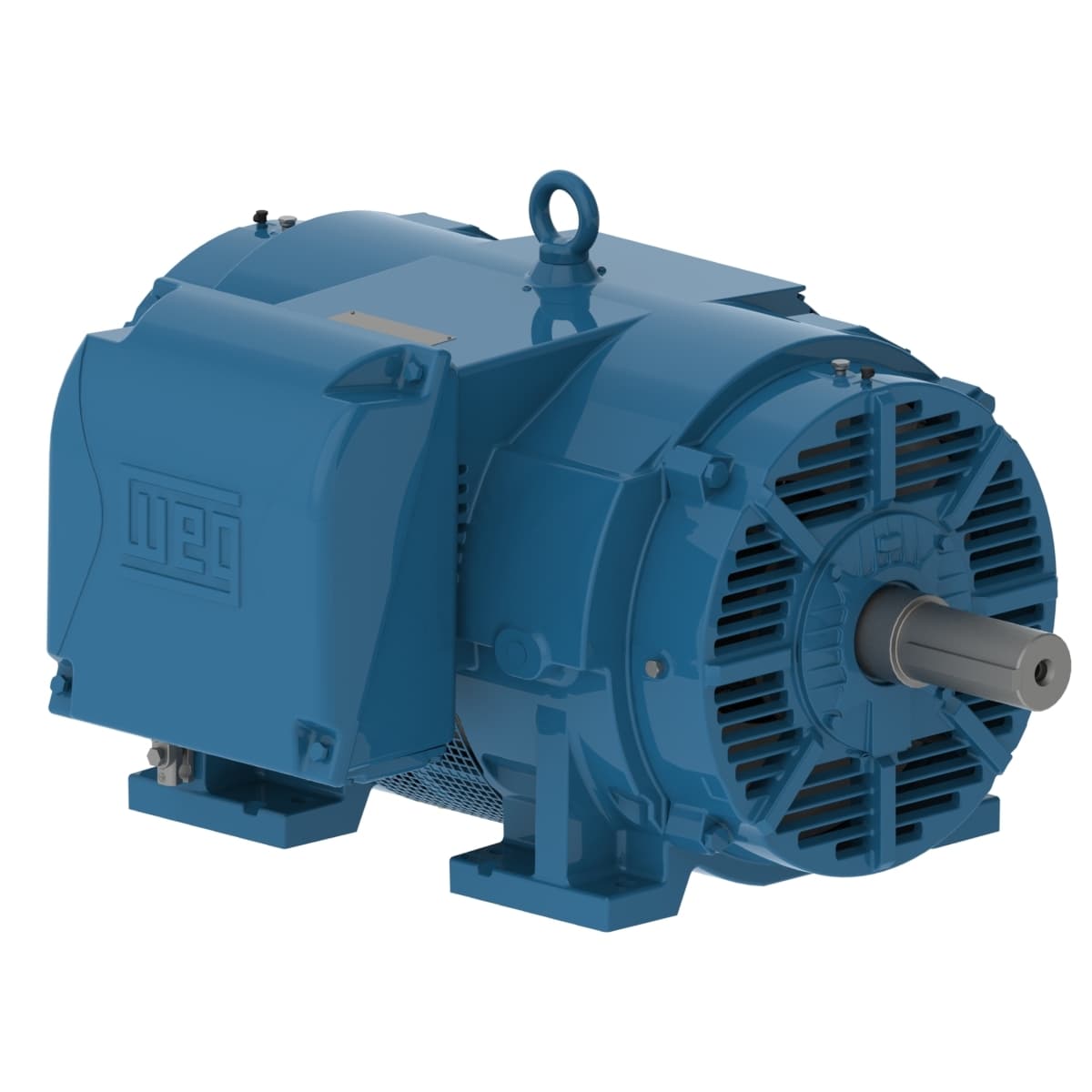

35036OT3G449TS-RFW40 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  460 V
• Output Rating
  350 HP
• Rated Speed
  3565 rpm
• Flange Type
  Without
• Terminal box¹
  Left position
• Flange
  Without
• Number of poles
  2
• Synchronous speed
  3600 rpm
• Output rating
  350 HP
• Approx. weight³
  1983 lb
• Voltage
  460 V
• Standard
  NEMA MG-1
• Rotation¹
  Both (CW and CCW)
• Degree of Protection
  IP23
• Noise level²
  87.0 dB(A)
• Ambient temperature
  -20°C to +40°C
• Mounting
  F-1
• Enclosure
  IC01 - ODP
• Altitude
  1000 m.a.s.l.
Starting Method
Direct On Line
Insulation Class
F
Temperature rise
80 K
Duty Cycle
Cont.(S1)
Service factor
1.15
Breakdown torque
250 %
Design
A
Moment of inertia (J)
35.7 sq.ft.lb
Locked rotor torque
170 %
Locked rotor time
25s (cold) 14s (hot)
Rated torque
516 ft.lb
No load current
88.0 A
L. R. Amperes
2496 A
LRC
6.5x(Code G)
Rated current
384 A
Rated speed
3565 rpm
Slip
0.97 %
Rated voltage
460 V
Output
350 HP (260 kW)
Frequency
60 Hz
Number of Poles
2
Frame
447/9TS
