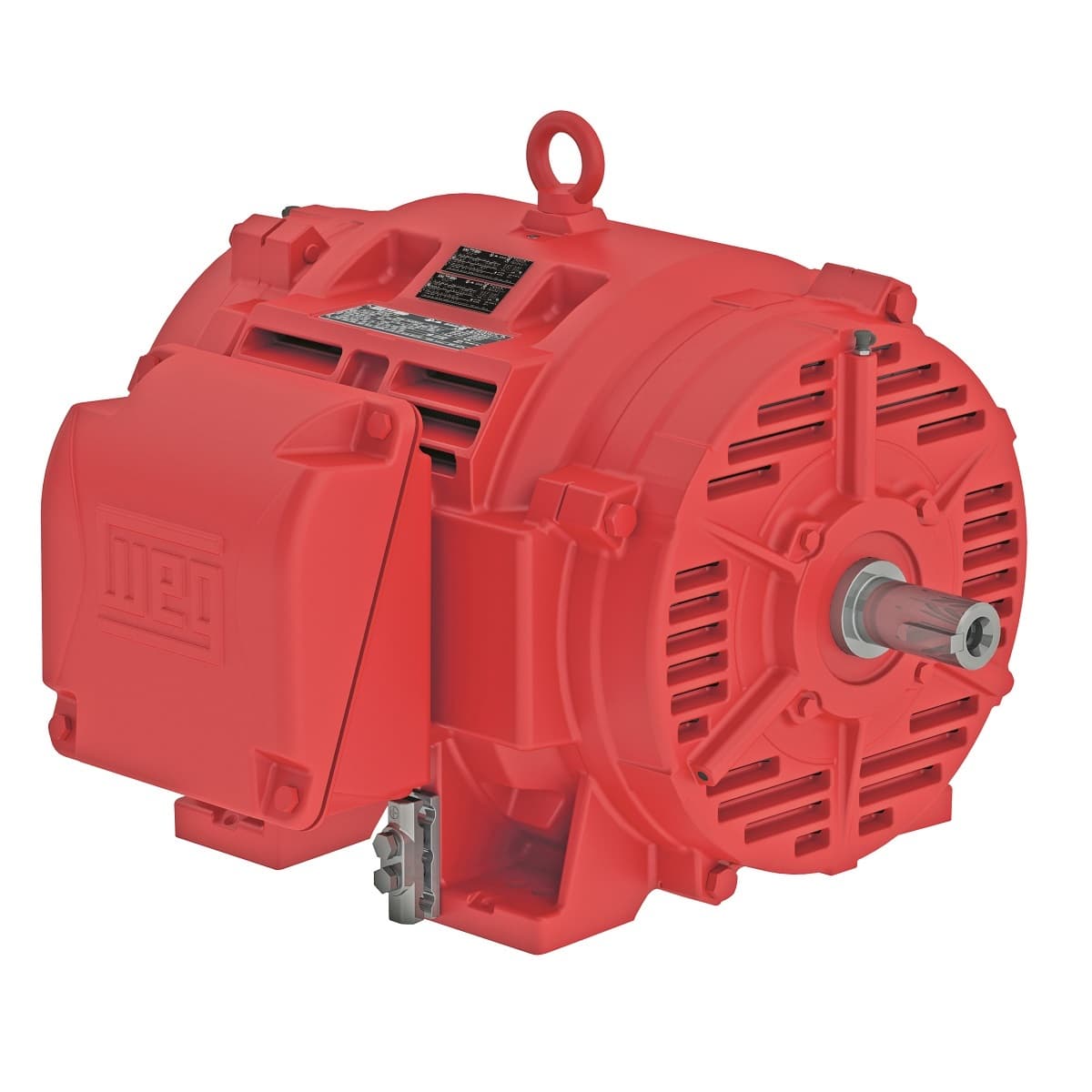

35012ET3GRB449T-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 460 V
- Output Rating 350 HP
- Rated Speed 1190 rpm
- Flange Type Without
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Flange Without
- Number of poles 6
- Output rating 350 HP
- Synchronous speed 1200 rpm
- Standard NEMA MG-1
- Voltage 460 V
- Approx. weight³ 3616 lb
- Altitude 1000 m.a.s.l.
- Noise level² 71.0 dB(A)
- Mounting F-1
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Service factor 1.15
- Locked rotor time 41s (cold) 23s (hot)
- Insulation Class F
- Moment of inertia (J) 278 sq.ft.lb
- Locked rotor torque 250 %
- No load current 160 A
- Rated torque 1540 ft.lb
- Design A
- Breakdown torque 270 %
- LRC 6.9x(Code H)
- Frame L447/9T
- Number of Poles 6
- L. R. Amperes 2864 A
- Rated voltage 460 V
- Frequency 60 Hz
- Slip 0.83 %
- Rated speed 1190 rpm
- Rated current 415 A
- Output 350 HP (260 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
