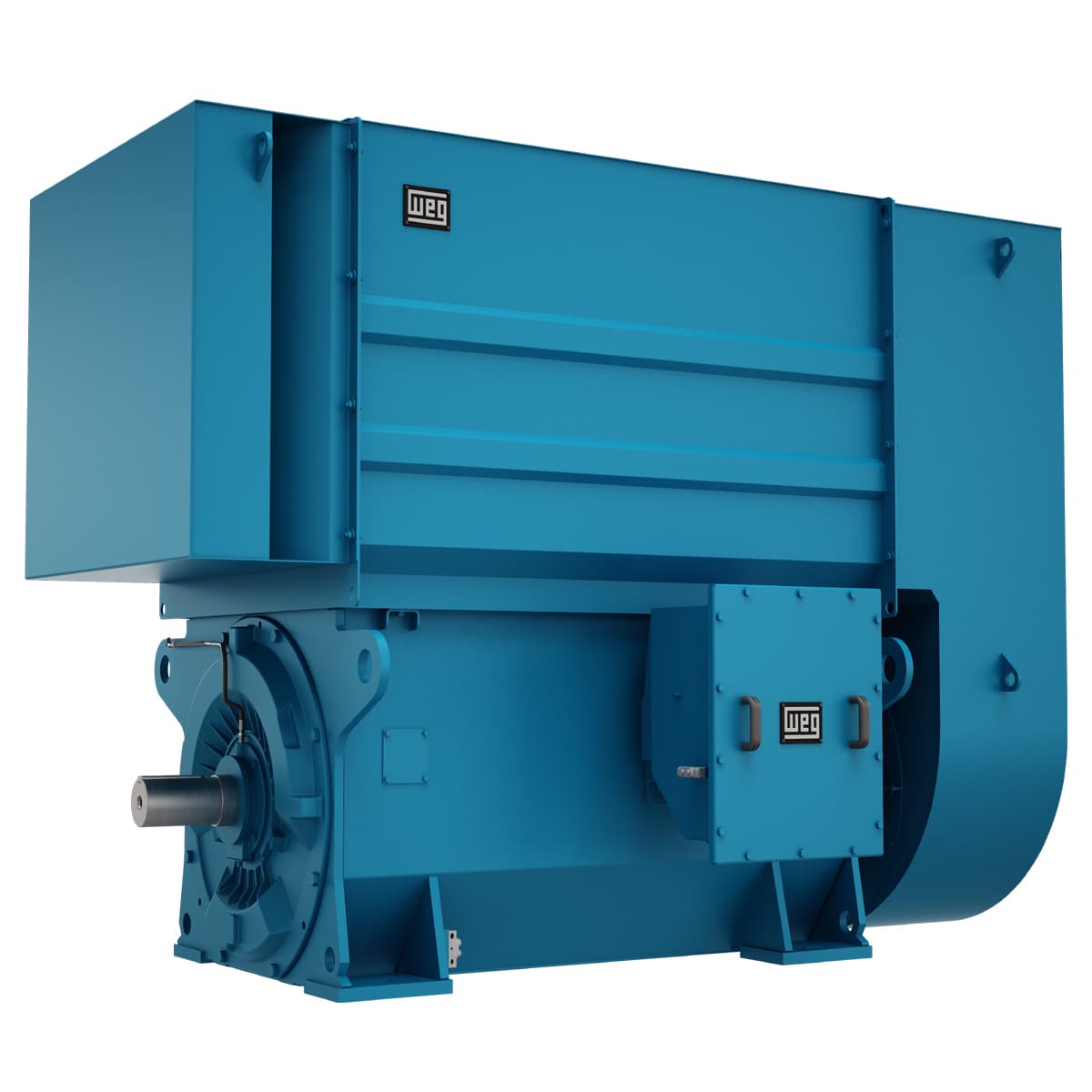

16166649 WEG AC Motors
Product Details
- Flange Without
- Terminal box¹ Left position
- Synchronous speed 1200 rpm
- Output rating 800 HP
- Number of poles 6
- Standard NEMA MG-1
- Voltage 460 V
- Approx. weight³ 6174 lb
- Mounting F-1
- Degree of Protection IP24
- Noise level² 77.0 dB(A)
- Rotation¹ CW
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Temperature rise 80 K
- Locked rotor time 54s (cold) 30s (hot)
- Insulation Class F
- Moment of inertia (J) 242 sq.ft.lb
- No load current 335 A
- Service factor 1.00
- Locked rotor torque 100 %
- Breakdown torque 210 %
- Rated torque 3550 ft.lb
- LRC 7.0x(Code H)
- Slip 1.25 %
- Output 800 HP (590 kW)
- L. R. Amperes 6763 A
- Rated voltage 460 V
- Frame 5810/11
- Frequency 60 Hz
- Rated speed 1185 rpm
- Rated current 966 A
- Number of Poles 6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
