10009XT3G445T WEG AC Motors
Part#:10009XT3G445T
Manufacturer:WEG
Category:AC Motors
Alt. Part#:7892304607367
Product Lifecycle:Active
Get a quick Quote!

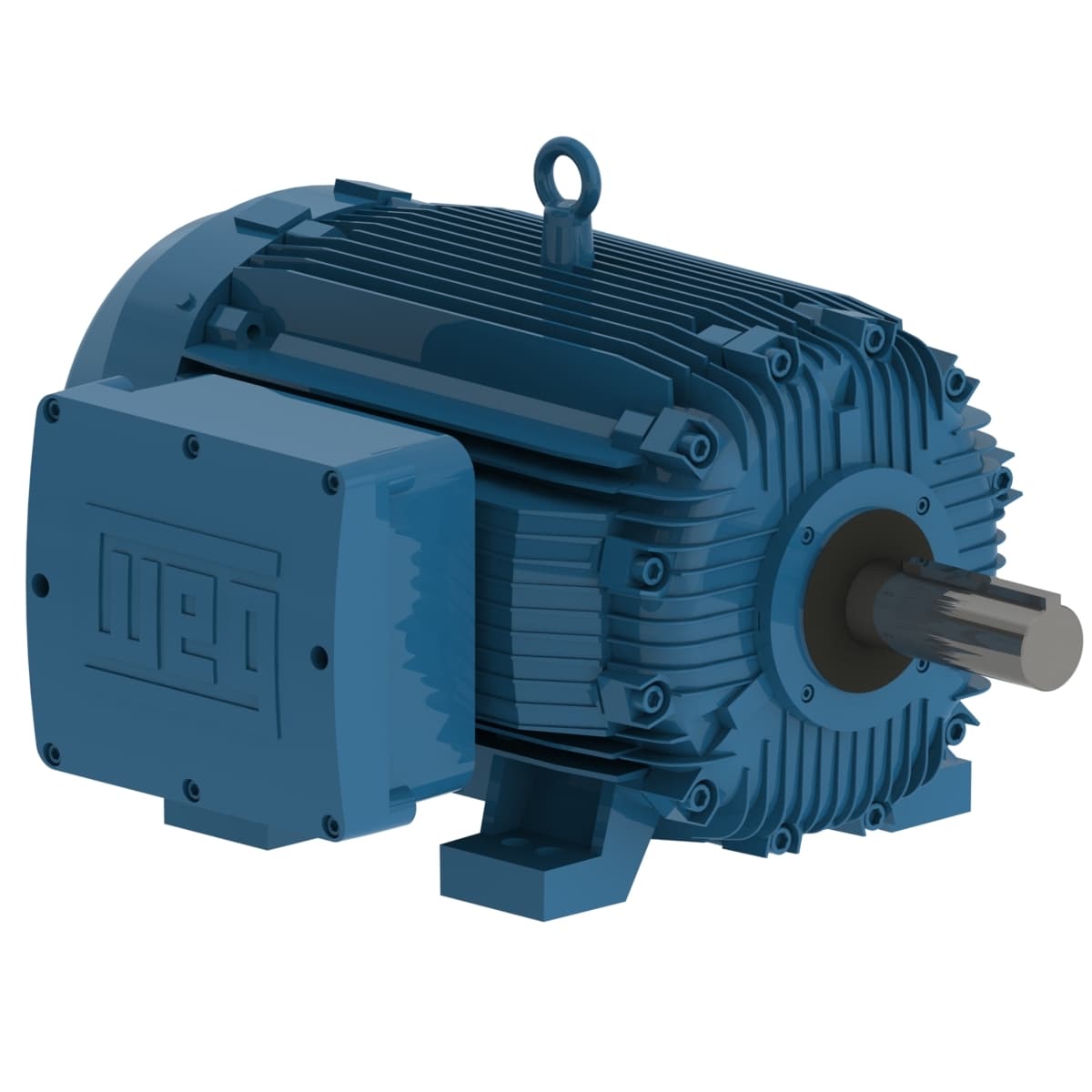

W21 Explosion-proof Motor NEMA Premium Efficiency 100 HP 8P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10009XT3G445T WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 8 Pole
- Voltage 460 V
- Output Rating 100 HP
- Rated Speed 890 rpm
- Flange Type Without
- Terminal box¹ Left position
- Service factor 1.15
- Flange Without
- Mounting F-1
- Output rating 100 HP
- Synchronous speed 900 rpm
- Voltage 460 V
- Temperature rise 80 K
- Number of poles 8
- Standard NEMA MG-1
- Approx. weight³ 2081 lb
- Starting Method Direct On Line
- Noise level² 64.0 dB(A)
- Enclosure IC411 - TEFC
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Locked rotor torque 170 %
- LRC 6.1x(Code G)
- Degree of Protection IP55
- Design B
- Rotation¹ Both (CW and CCW)
- Breakdown torque 200 %
- Moment of inertia (J) 87.3 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Locked rotor time 28s (cold) 16s (hot)
- L. R. Amperes 763 A
- No load current 47.5 A
- Rated torque 590 ft.lb
- Rated voltage 460 V
- Rated current 125 A
- Slip 1.11 %
- Output 100 HP (75 kW)
- Frequency 60 Hz
- Number of Poles 8
- Rated speed 890 rpm
- Frame 444/5T
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 10009XT3G445T Specs
