07536ST3QIE365TS-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 75 HP
- Rated Speed 3550 rpm
- Flange Type Without
- Terminal box¹ Left position
- Flange Without
- Output rating 75 HP
- Standard NEMA MG-1
- Approx. weight³ 907 lb
- Number of poles 2
- Synchronous speed 3600 rpm
- Voltage 460 V
- Noise level² 79.0 dB(A)
- Mounting F-1
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP56
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Service factor 1.25
- Locked rotor time 18s (cold) 10s (hot)
- Insulation Class F
- Design B
- Rated torque 111 ft.lb
- No load current 19.0 A
- Moment of inertia (J) 11.9 sq.ft.lb
- Locked rotor torque 220 %
- Breakdown torque 270 %
- Number of Poles 2
- Frame 364/5TS
- LRC 6.6x(Code G)
- Frequency 60 Hz
- Slip 1.39 %
- Output 75 HP (55 kW)
- Rated voltage 460 V
- Rated current 81.9 A
- L. R. Amperes 541 A
- Rated speed 3550 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
07536ST3QIE365TS-W22 Related Documents
Manufacturer warranty
07536ST3QIE365TS-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

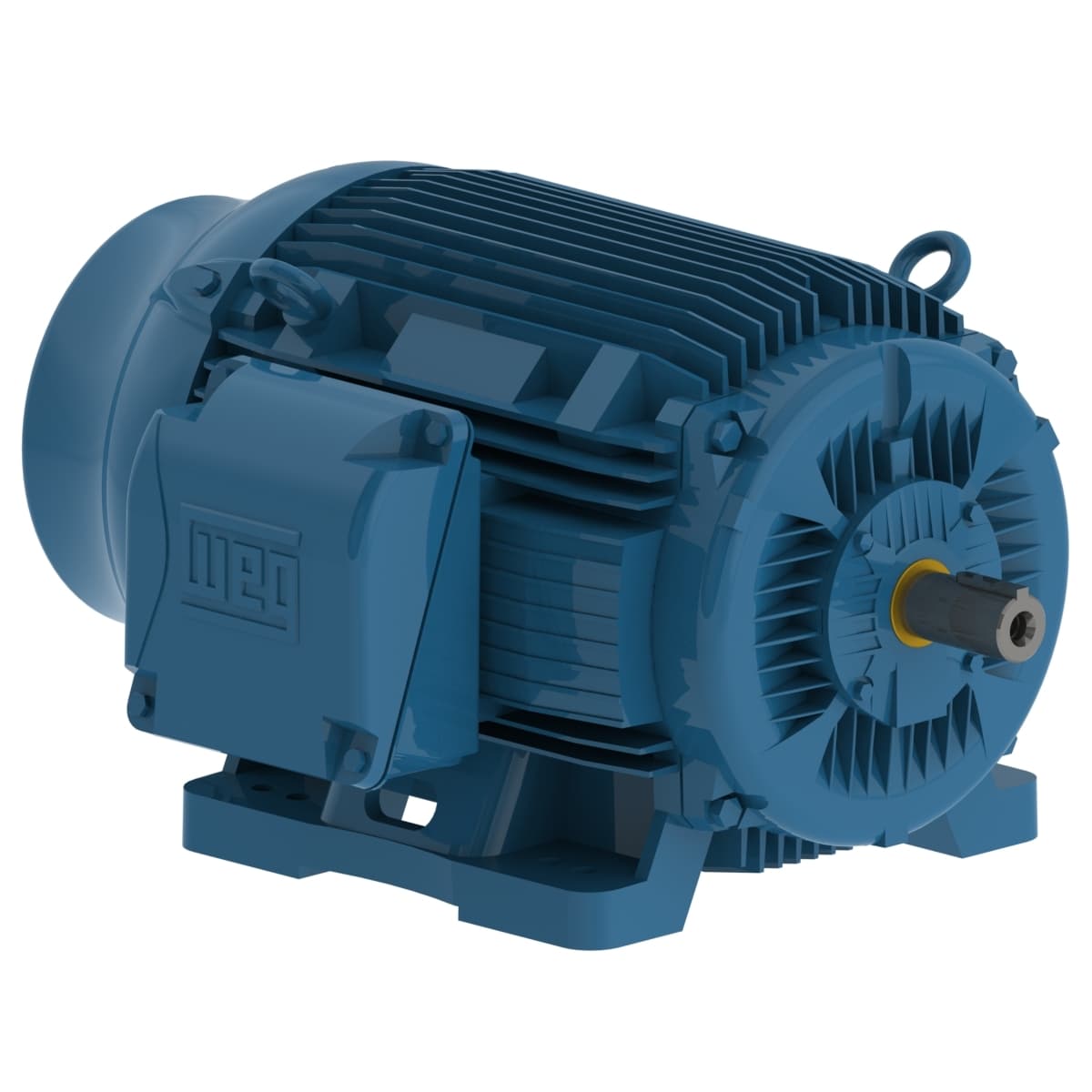

W22 IEEE 841 NEMA Premium Efficiency 75 HP 2P 364/5TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
