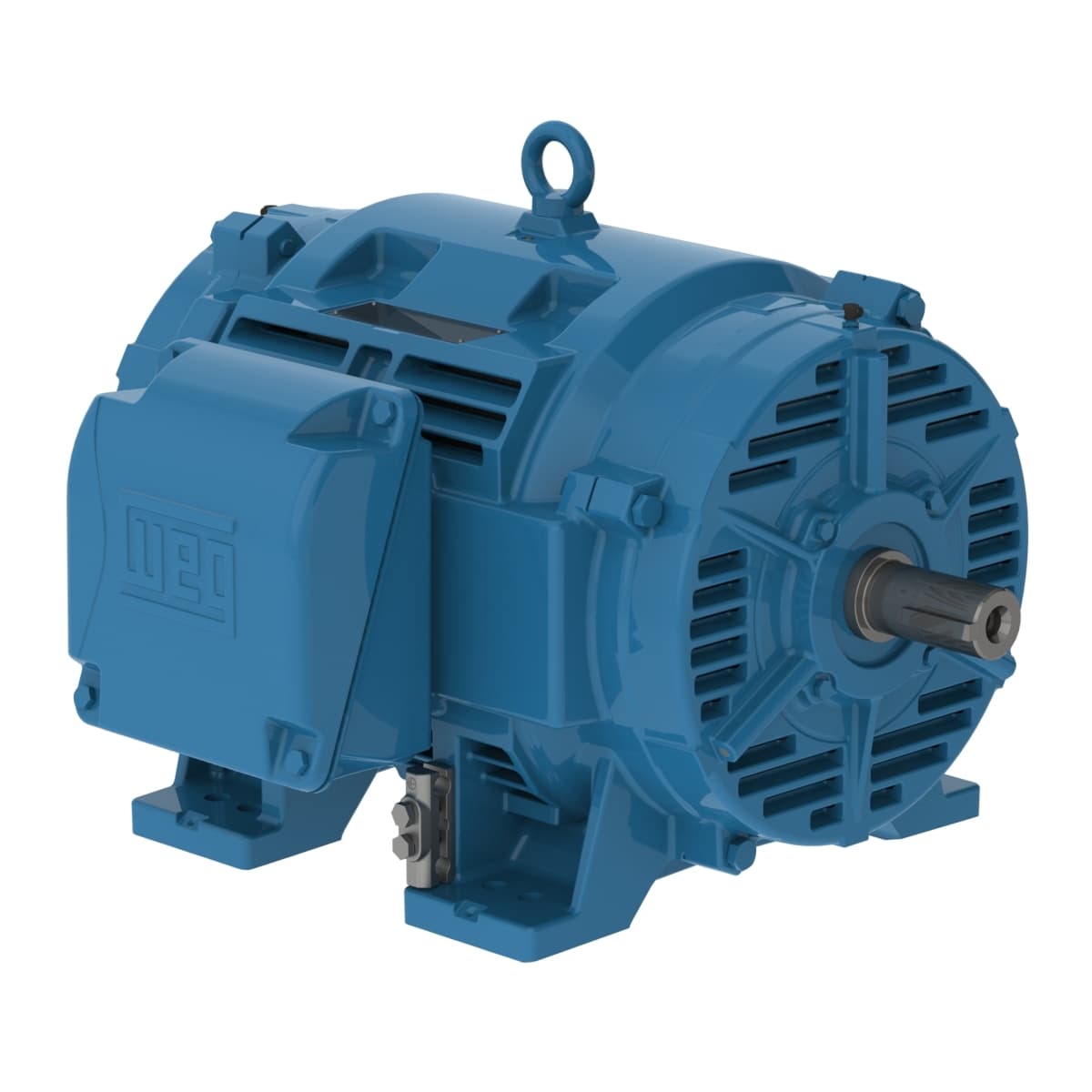

07536OT3E364TS-RFW40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 208-230/460 V
- Output Rating 75 HP
- Rated Speed 3555 rpm
- Flange Type Without
- Terminal box¹ Left position
- Synchronous speed 3600 rpm
- Flange Without
- Number of poles 2
- Output rating 75 HP
- Standard NEMA MG-1
- Approx. weight³ 736 lb
- Noise level² 84.0 dB(A)
- Voltage 208-230/460//380 V
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Starting Method Direct On Line
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Service factor 1.25
- Insulation Class F
- LRC 6.6x(Code G)
- Design B
- No load current 37.1-43.0/21.5 A
- Locked rotor time 34s (cold) 19s (hot)
- Rated torque 111 ft.lb
- Locked rotor torque 200 %
- Moment of inertia (J) 6.40 sq.ft.lb
- L. R. Amperes 1241-1122/560 A
- Breakdown torque 250 %
- Rated current 188-170/84.8 A
- Rated speed 3555 rpm
- Slip 1.25 %
- Number of Poles 2
- Rated voltage 208-230/460 V
- Frequency 60 Hz
- Output 75 HP (55 kW)
- Frame 364/5TS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
