07518ET3E365T-W22 WEG AC Motors

07518ET3E365T-W22 on Advantage Electric Supply
WEG

Part#:07518ET3E365T-W22

Alt. Part#:7890355673287

Manufacturer:WEG

Category:AC Motors

Product Lifecycle:Active

Product description

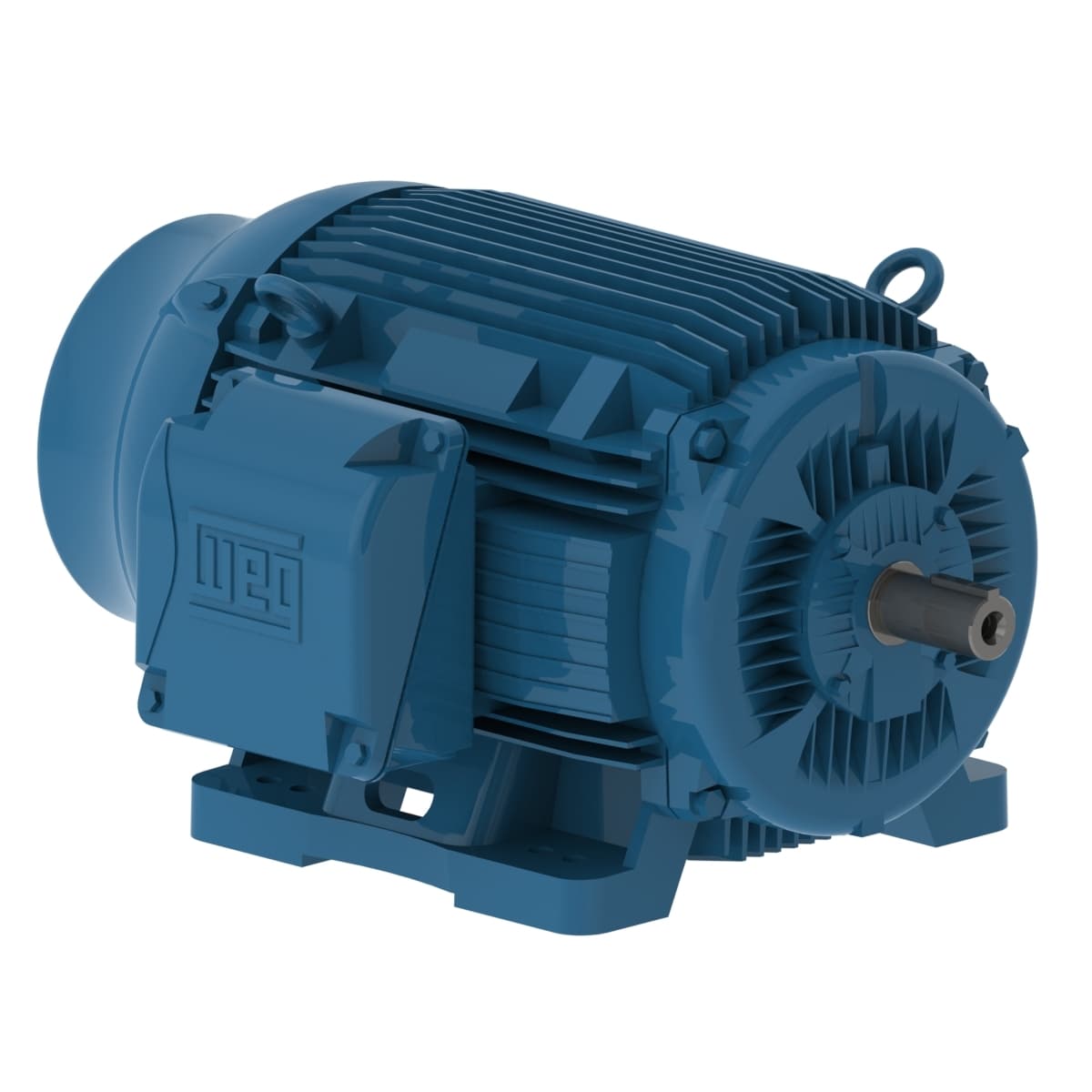

W22 NEMA Premium Efficiency 75 HP 4P 364/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

Product Details

  • Number of Poles
    4 Pole
  • Voltage
    230/460 V
  • Output Rating
    75 HP
  • Rated Speed
    1780 rpm
  • Flange Type
    Without
  • Terminal box¹
    Left position
  • Noise level²
    67.0 dB(A)
  • Synchronous speed
    1800 rpm
  • Flange
    Without
  • Number of poles
    4
  • Output rating
    75 HP
  • Voltage
    230/460//380 V
  • Rotation¹
    Both (CW and CCW)
  • Mounting
    F-1
  • Standard
    NEMA MG-1
  • Enclosure
    IC411 - TEFC
  • Ambient temperature
    -20°C to +40°C
  • Degree of Protection
    IP55
  • Starting Method
    Direct On Line
  • Duty Cycle
    Cont.(S1)
  • Altitude
    1000 m.a.s.l.
  • Moment of inertia (J)
    23.3 sq.ft.lb
  • LRC
    6.4x(Code G)
  • Service factor
    1.25
  • Locked rotor time
    25s (cold) 14s (hot)
  • Breakdown torque
    260 %
  • Design
    B
  • Number of Poles
    4
  • Insulation Class
    F
  • No load current
    66.0/33.0 A
  • Locked rotor torque
    240 %
  • Slip
    1.11 %
  • Rated torque
    221 ft.lb
  • Frame
    364/5T
  • Rated speed
    1780 rpm
  • Rated voltage
    230/460 V
  • Rated current
    174/87.2 A
  • Output
    75 HP (55 kW)
  • L. R. Amperes
    1116/558 A
  • Approx. weight³
    934 lb
  • Temperature rise
    80 K
  • Frequency
    60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
