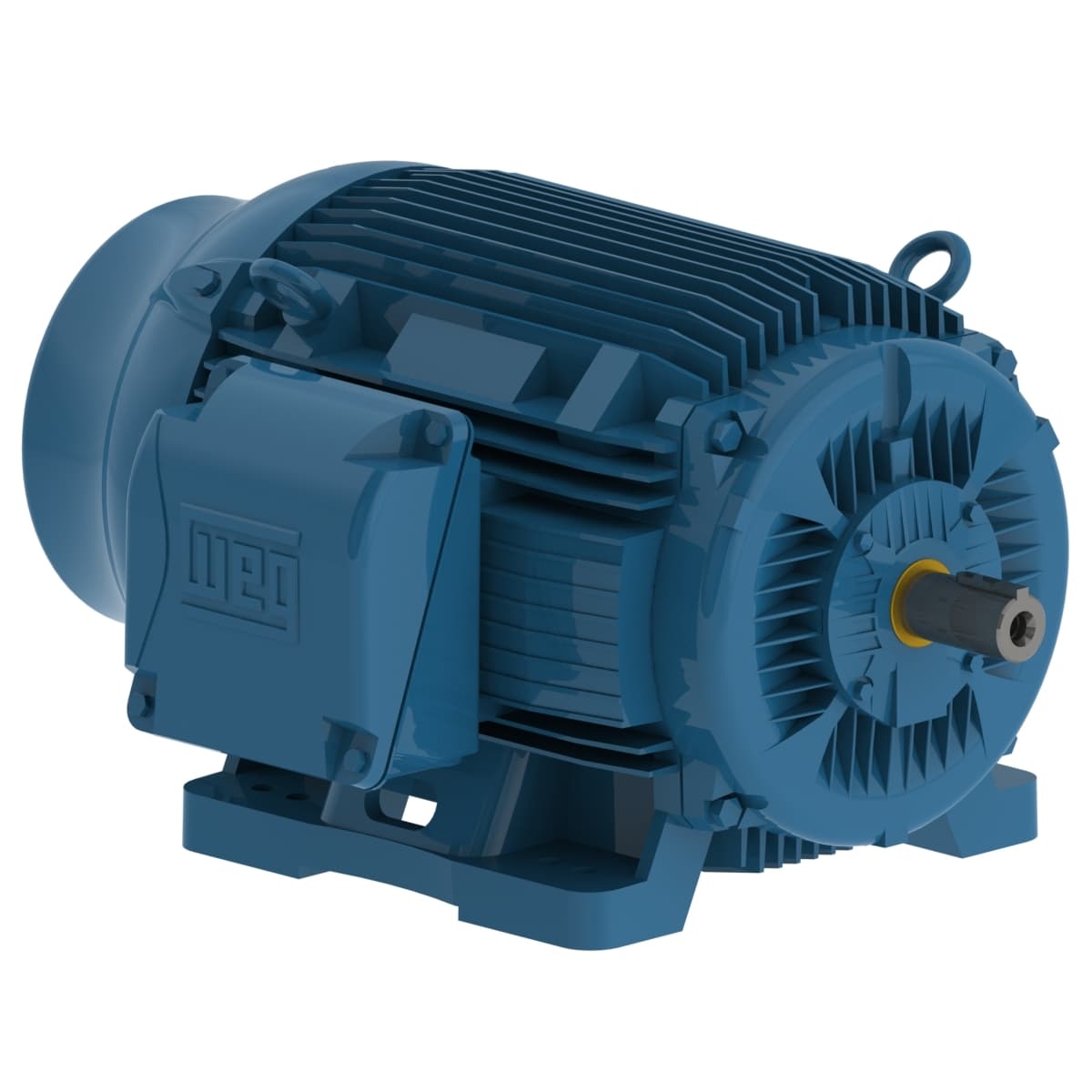

07512ST3QIE405T-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 460 V
- Output Rating 75 HP
- Rated Speed 1184 rpm
- Flange Type Without
- Flange Without
- Terminal box¹ Left position
- Output rating 75 HP
- Synchronous speed 1200 rpm
- Number of poles 6
- Voltage 460 V
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 1191 lb
- Mounting F-1
- Degree of Protection IP56
- Enclosure IC411 - TEFC
- Ambient temperature -20°C to +40°C
- Noise level² 68.0 dB(A)
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Insulation Class F
- Service factor 1.25
- No load current 28.0 A
- Breakdown torque 229 %
- Rated torque 333 ft.lb
- Locked rotor time 30s (cold) 17s (hot)
- Design B
- Moment of inertia (J) 40.2 sq.ft.lb
- Locked rotor torque 220 %
- Number of Poles 6
- LRC 6.4x(Code G)
- Rated speed 1184 rpm
- Rated current 84.9 A
- Rated voltage 460 V
- Slip 1.33 %
- Frequency 60 Hz
- L. R. Amperes 544 A
- Output 75 HP (55 kW)
- Frame 404/5T
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
