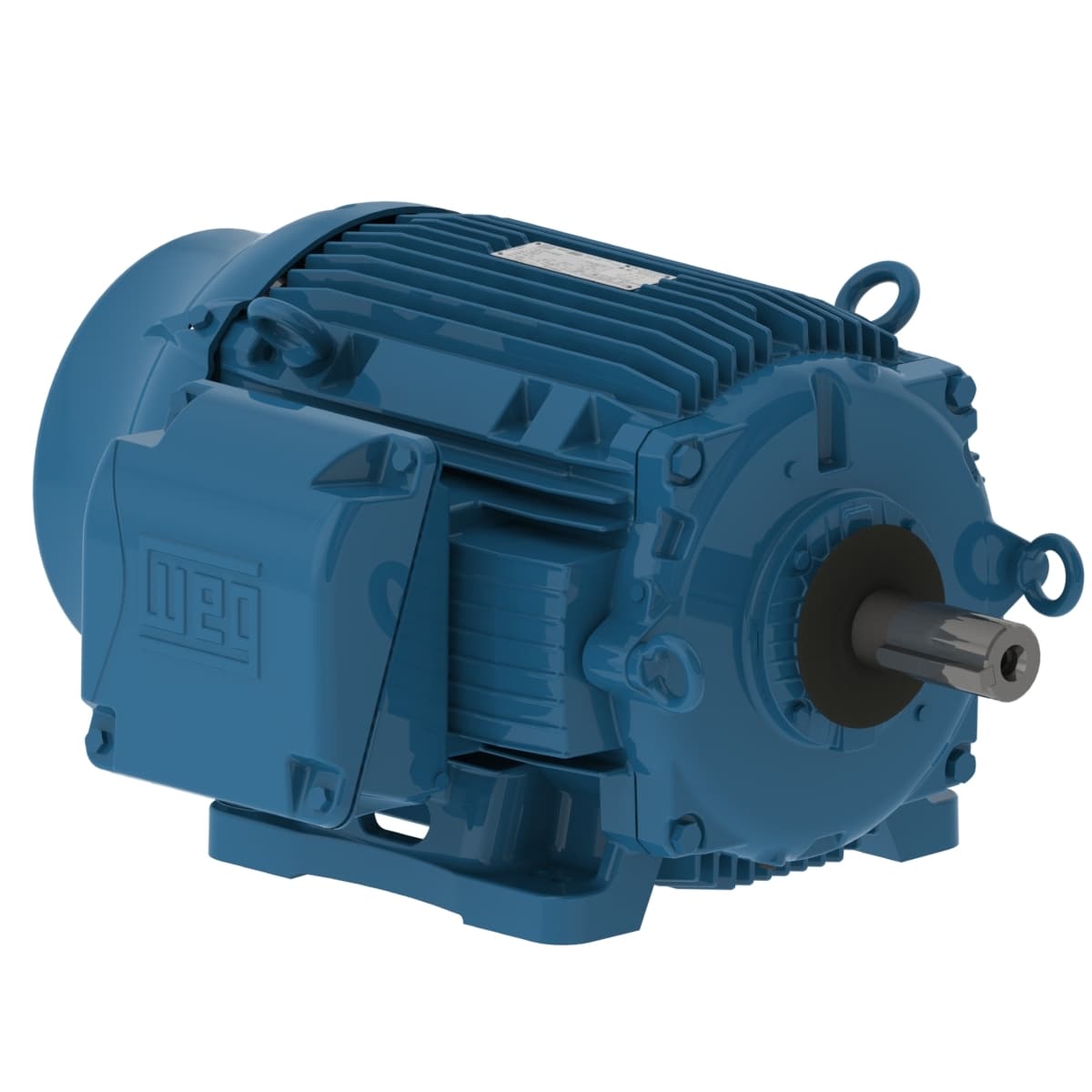

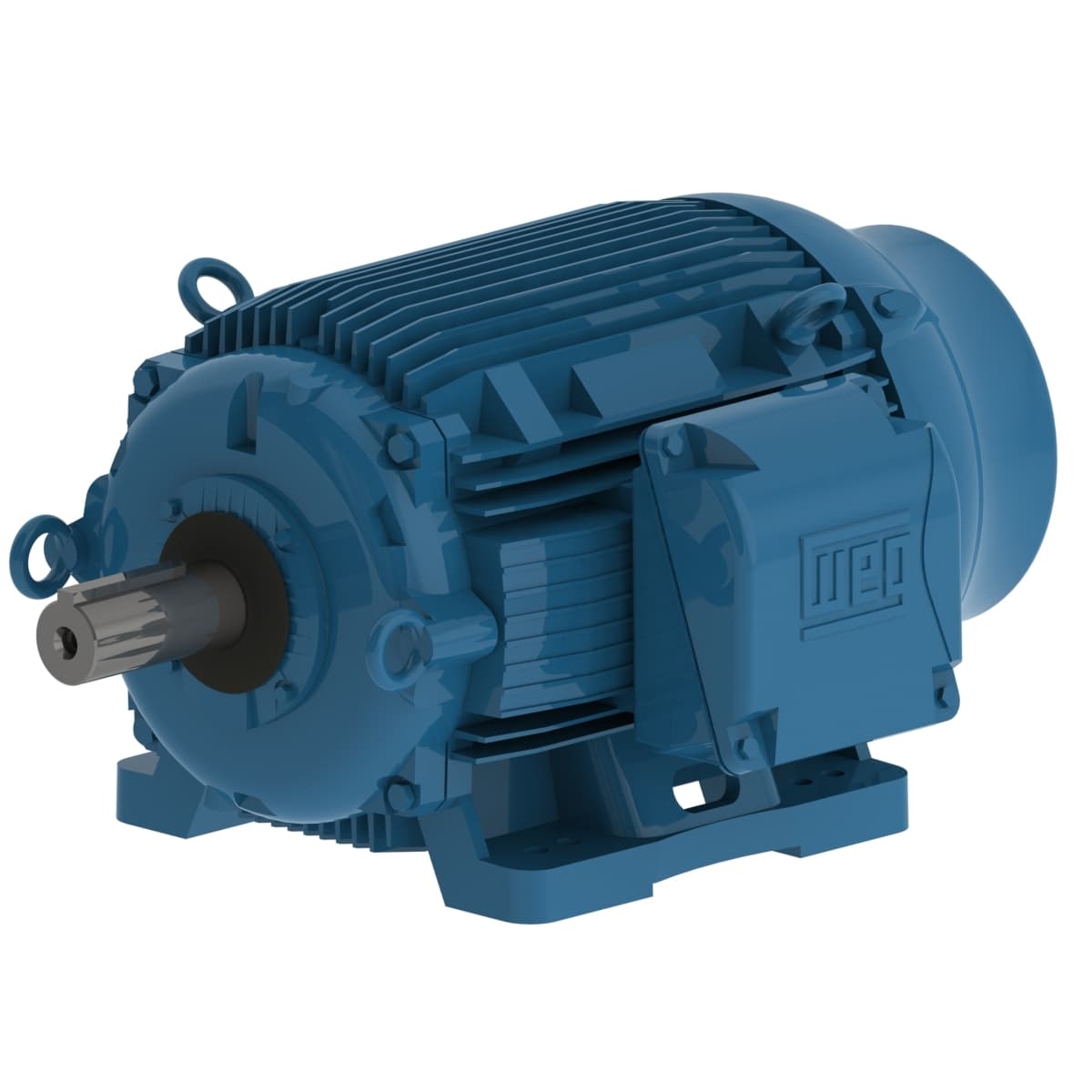

05089EP3QCT364VF1-W2 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  460 V
• Output Rating
  12.5/50 HP
• Rated Speed
  1780 rpm
• Flange Type
  Without
• Rated current
  59.8 A
• Terminal box¹
  Left position
• Approx. weight³
  838 lb
• Output rating
  12.5/50 HP
• Voltage
  460 V
• Synchronous speed
  900/1800 rpm
• Flange
  Without
• Number of poles
  8/4
• Rotation¹
  Both (CW and CCW)
• Noise level²
  71.0 dB(A)
• Standard
  NEMA MG-1
• Degree of Protection
  IP55
• Enclosure
  IC411 - TEFC
• Altitude
  1000 m.a.s.l.
• Duty Cycle
  Cont.(S1)
Mounting
F-1
Ambient temperature
-20°C to +40°C
Starting Method
Direct On Line
Temperature rise
80 K
Service factor
1.15
Locked rotor time
14s (cold) 8s (hot)
Locked rotor torque
310 %
Moment of inertia (J)
19.9 sq.ft.lb
Insulation Class
F
Rated torque
148 ft.lb
Breakdown torque
350 %
No load current
30.7 A
LRC
8.8x(Code K)
Number of Poles
8/4
Rated speed
1780 rpm
Rated voltage
460 V
Output
50 HP (37 kW)
L. R. Amperes
526 A
Frame
364/5T
Frequency
60 Hz
Slip
1.11 %
