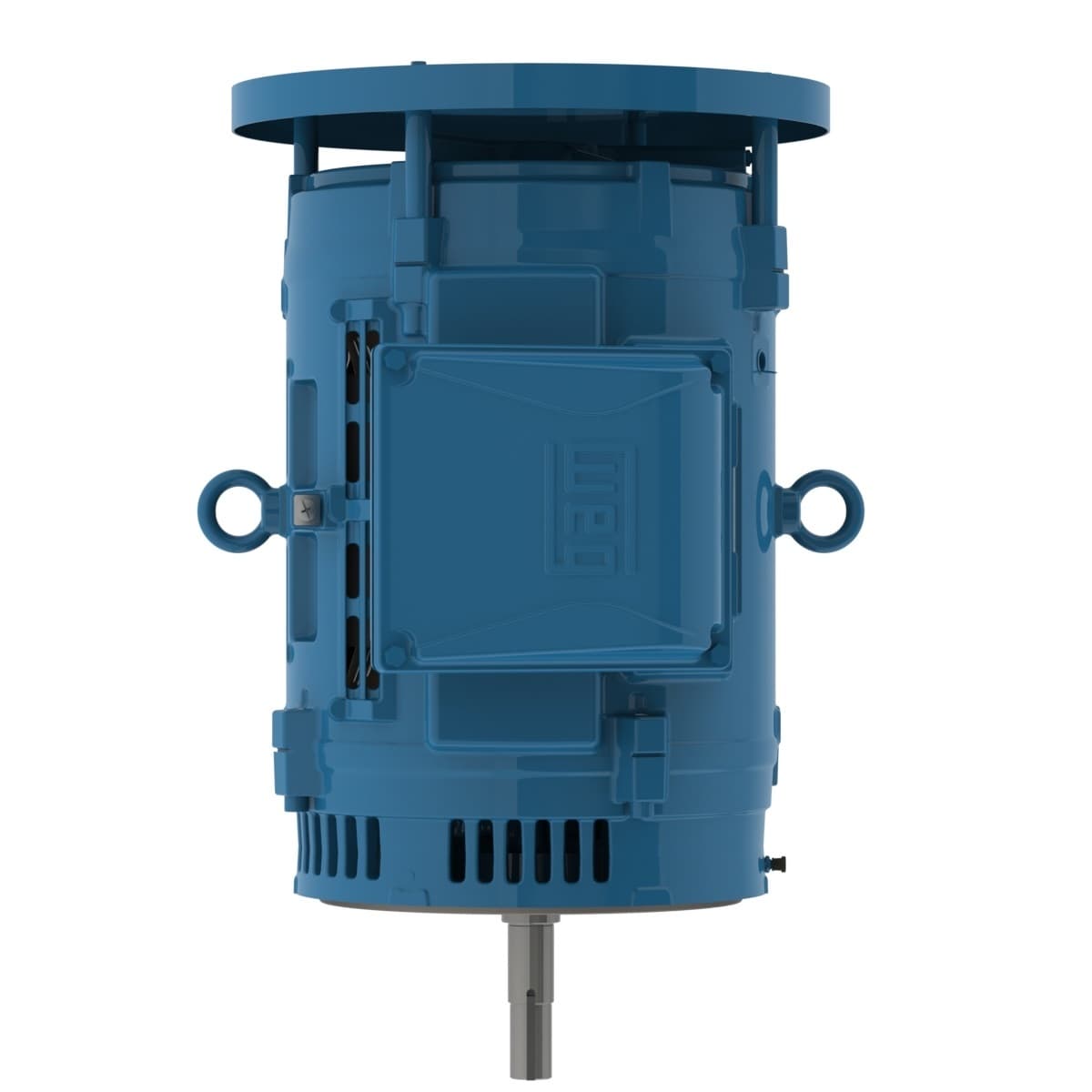

05036OT3V324JMV-W40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 200/400 V
- Output Rating 50 HP
- Rated Speed 3555 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Voltage 200/400 V
- Standard NEMA MG-1
- Synchronous speed 3600 rpm
- Number of poles 2
- Output rating 50 HP
- Approx. weight³ 443 lb
- Rotation¹ Both (CW and CCW)
- Noise level² 75.0 dB(A)
- Mounting W-6
- Enclosure IC01 - ODP
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Service factor 1.25
- Insulation Class F
- Rated torque 73.9 ft.lb
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 3.02 sq.ft.lb
- Locked rotor torque 200 %
- Design B
- No load current 44.8/22.4 A
- Breakdown torque 220 %
- LRC 6.3x(Code G)
- L. R. Amperes 861/431 A
- Number of Poles 2
- Rated current 137/68.4 A
- Output 50 HP (37 kW)
- Frequency 60 Hz
- Frame 324/6JM
- Rated speed 3555 rpm
- Rated voltage 200/400 V
- Slip 1.25 %
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
