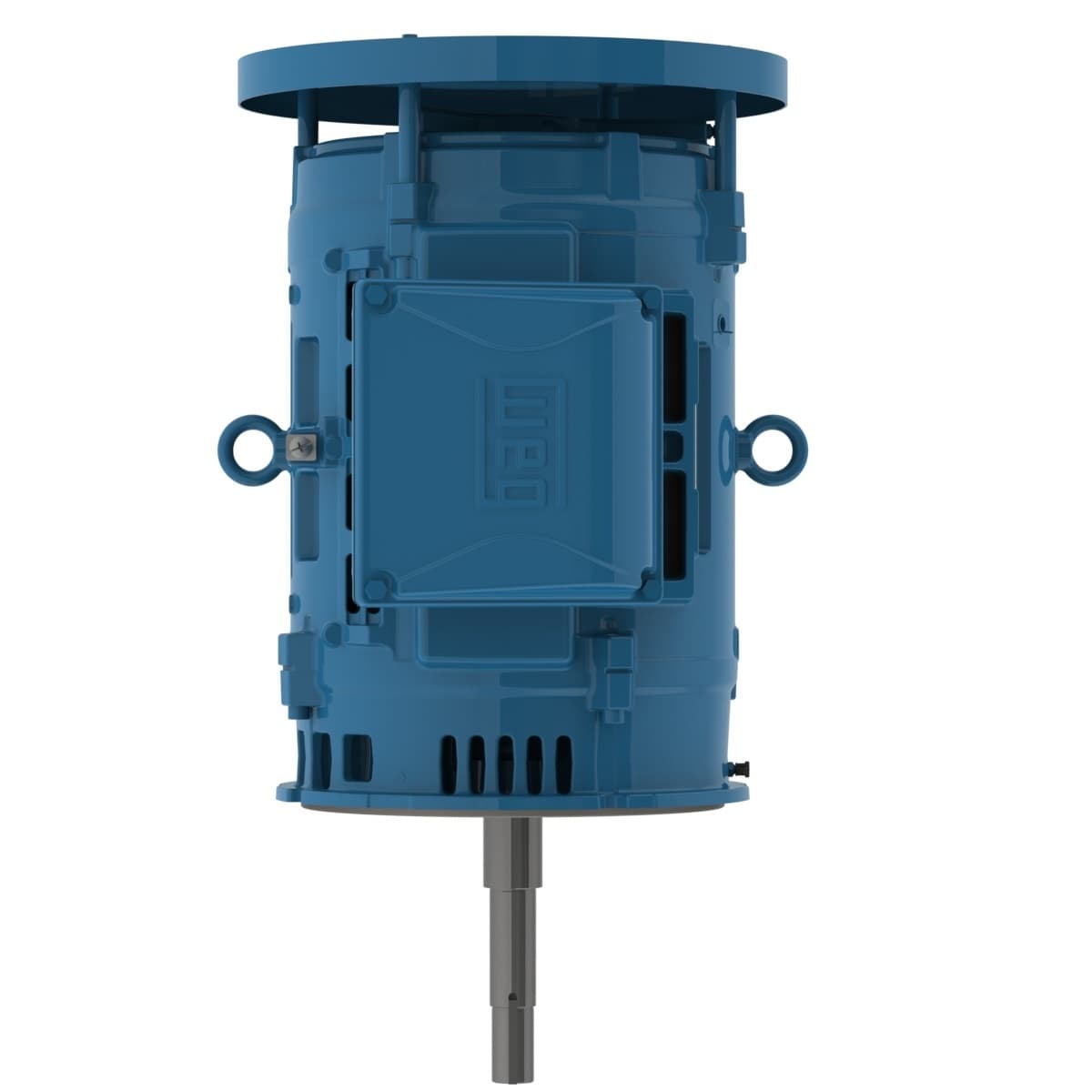

04036OP3VFP286JPV-W4 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 200/400 V
- Output Rating 40 HP
- Rated Speed 3540 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Output rating 40 HP
- Synchronous speed 3600 rpm
- Voltage 200/400 V
- Number of poles 2
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 374 lb
- Standard NEMA MG-1
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting W-6
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Service factor 1.15
- Insulation Class F
- Locked rotor torque 220 %
- Rated torque 59.3 ft.lb
- Moment of inertia (J) 1.91 sq.ft.lb
- Breakdown torque 220 %
- Design B
- Locked rotor time 18s (cold) 10s (hot)
- LRC 6.1x(Code G)
- No load current 29.9/15.0 A
- Frame 284/6JP
- Output 40 HP (30 kW)
- Frequency 60 Hz
- Number of Poles 2
- Rated speed 3540 rpm
- L. R. Amperes 662/331 A
- Slip 1.67 %
- Rated current 109/54.3 A
- Rated voltage 200/400 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
