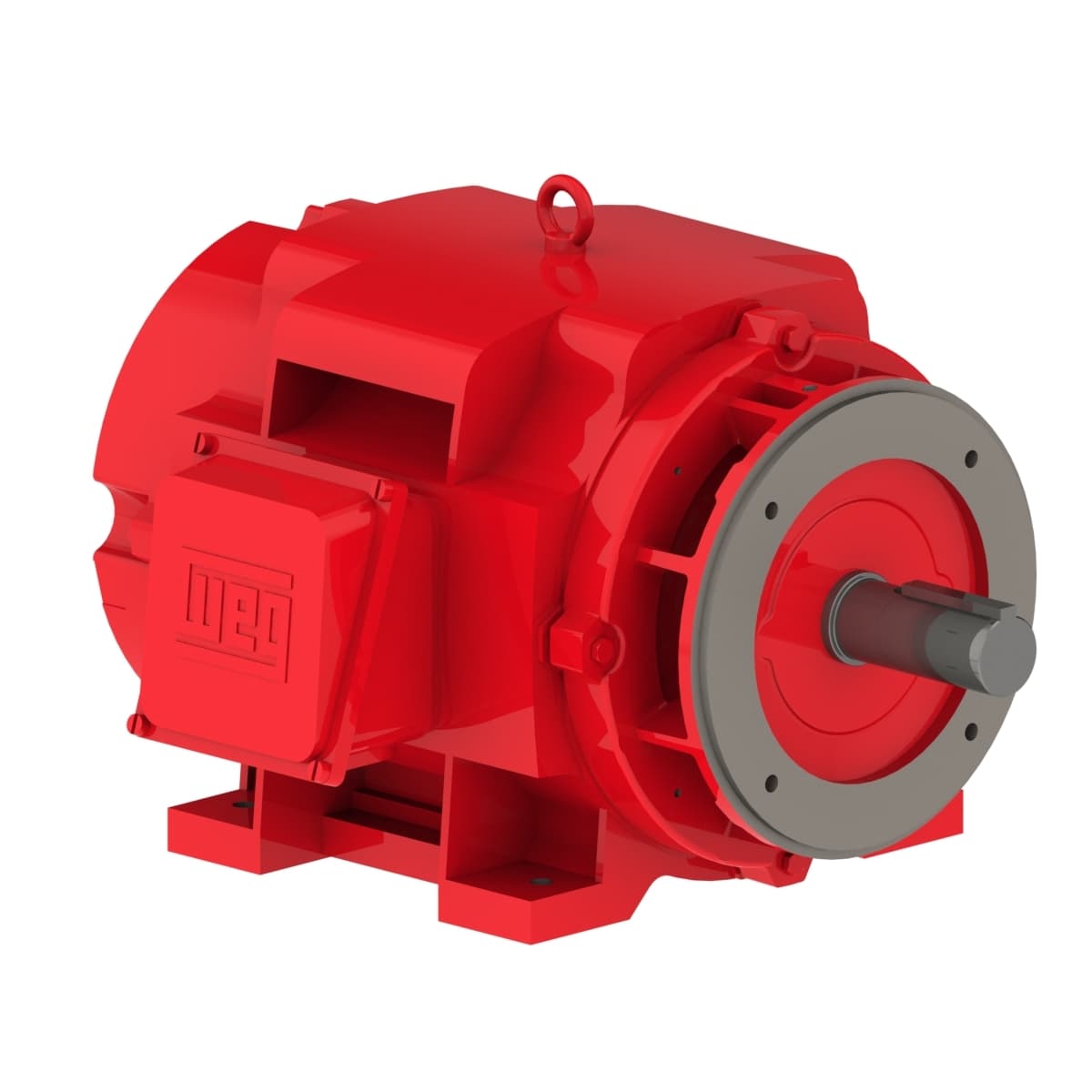

02536OP3EFP256TC WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 25 HP
- Rated Speed 3530 rpm
- Flange Type C
- Flange C
- Terminal box¹ Left position
- Output rating 25 HP
- Voltage 230/460 V
- Synchronous speed 3600 rpm
- Number of poles 2
- Approx. weight³ 231 lb
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Starting Method Direct On Line
- Noise level² 67.0 dB(A)
- Mounting F-1
- Enclosure IC01 - ODP
- Ambient temperature -20°C to +40°C
- Degree of Protection IP23
- Altitude 1000 m.a.s.l.
- Service factor 1.15
- Temperature rise 105 K
- Duty Cycle Cont.(S1)
- Moment of inertia (J) 0.9774 sq.ft.lb
- Rated torque 37.2 ft.lb
- Design B
- Locked rotor time 18s (cold) 10s (hot)
- Insulation Class F
- Breakdown torque 250 %
- Locked rotor torque 200 %
- LRC 6.0x(Code G)
- No load current 18.8/9.40 A
- Slip 1.94 %
- L. R. Amperes 352/176 A
- Rated voltage 230/460 V
- Frame 256TC
- Frequency 60 Hz
- Number of Poles 2
- Rated speed 3530 rpm
- Rated current 58.6/29.3 A
- Output 25 HP (18.5 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
