02036OP3VFP254JPV-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 200/400 V
- Output Rating 20 HP
- Rated Speed 3520 rpm
- Flange Type C
- Terminal box¹ Left position
- Voltage 200/400 V
- Synchronous speed 3600 rpm
- Flange C
- Output rating 20 HP
- Service factor 1.15
- Number of poles 2
- Standard NEMA MG-1
- Noise level² 70.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 169 lb
- Mounting W-6
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Temperature rise 80 K
- Insulation Class F
- Starting Method Direct On Line
- Breakdown torque 240 %
- Locked rotor torque 180 %
- Design B
- Moment of inertia (J) 0.6974 sq.ft.lb
- Locked rotor time 16s (cold) 9s (hot)
- No load current 21.0/10.5 A
- LRC 6.0x(Code G)
- Rated torque 29.8 ft.lb
- Slip 2.22 %
- Number of Poles 2
- Frame 254/6JP
- Output 20 HP (15 kW)
- L. R. Amperes 327/164 A
- Rated current 54.5/27.3 A
- Rated voltage 200/400 V
- Rated speed 3520 rpm
- Frequency 60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
02036OP3VFP254JPV-S Related Documents
Manufacturer warranty
02036OP3VFP254JPV-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

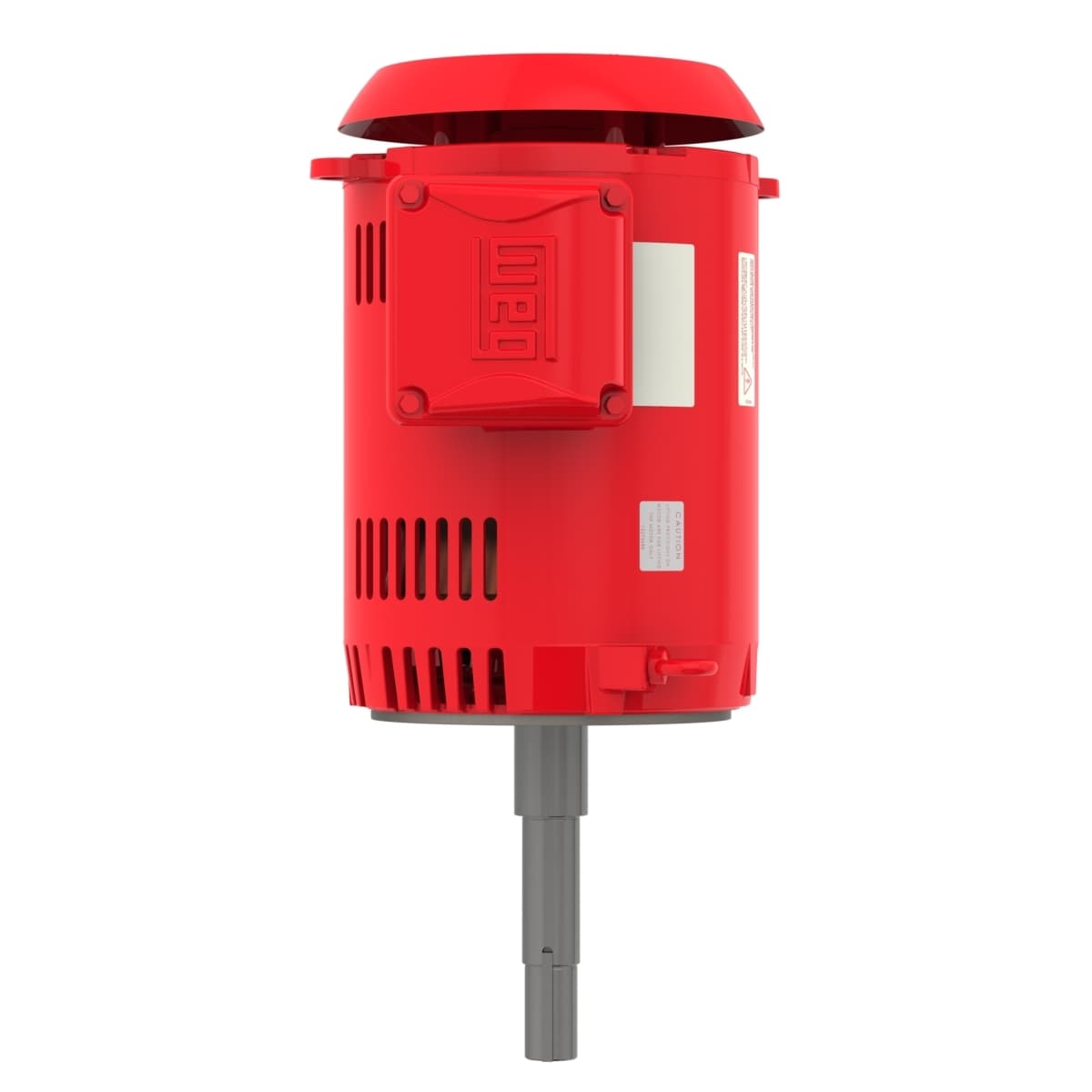

Rolled Steel JP Pump High Efficiency 20 HP 2P 254/6JP 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
