01512ST3QIE284T-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 460 V
- Output Rating 15 HP
- Rated Speed 1175 rpm
- Flange Type Without
- Terminal box¹ Left position
- Flange Without
- Output rating 15 HP
- Synchronous speed 1200 rpm
- Voltage 460 V
- Standard NEMA MG-1
- Number of poles 6
- Approx. weight³ 401 lb
- Rotation¹ Both (CW and CCW)
- Noise level² 59.0 dB(A)
- Mounting F-1
- Degree of Protection IP56
- Enclosure IC411 - TEFC
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Service factor 1.25
- Insulation Class F
- Design B
- Breakdown torque 260 %
- Moment of inertia (J) 7.85 sq.ft.lb
- Locked rotor time 36s (cold) 20s (hot)
- Locked rotor torque 229 %
- LRC 6.4x(Code G)
- L. R. Amperes 115 A
- Rated torque 67.0 ft.lb
- Rated current 17.9 A
- No load current 7.00 A
- Rated voltage 460 V
- Rated speed 1175 rpm
- Slip 2.08 %
- Frequency 60 Hz
- Frame 284/6T
- Number of Poles 6
- Output 15 HP (11 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
01512ST3QIE284T-W22 Related Documents
Manufacturer warranty
01512ST3QIE284T-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

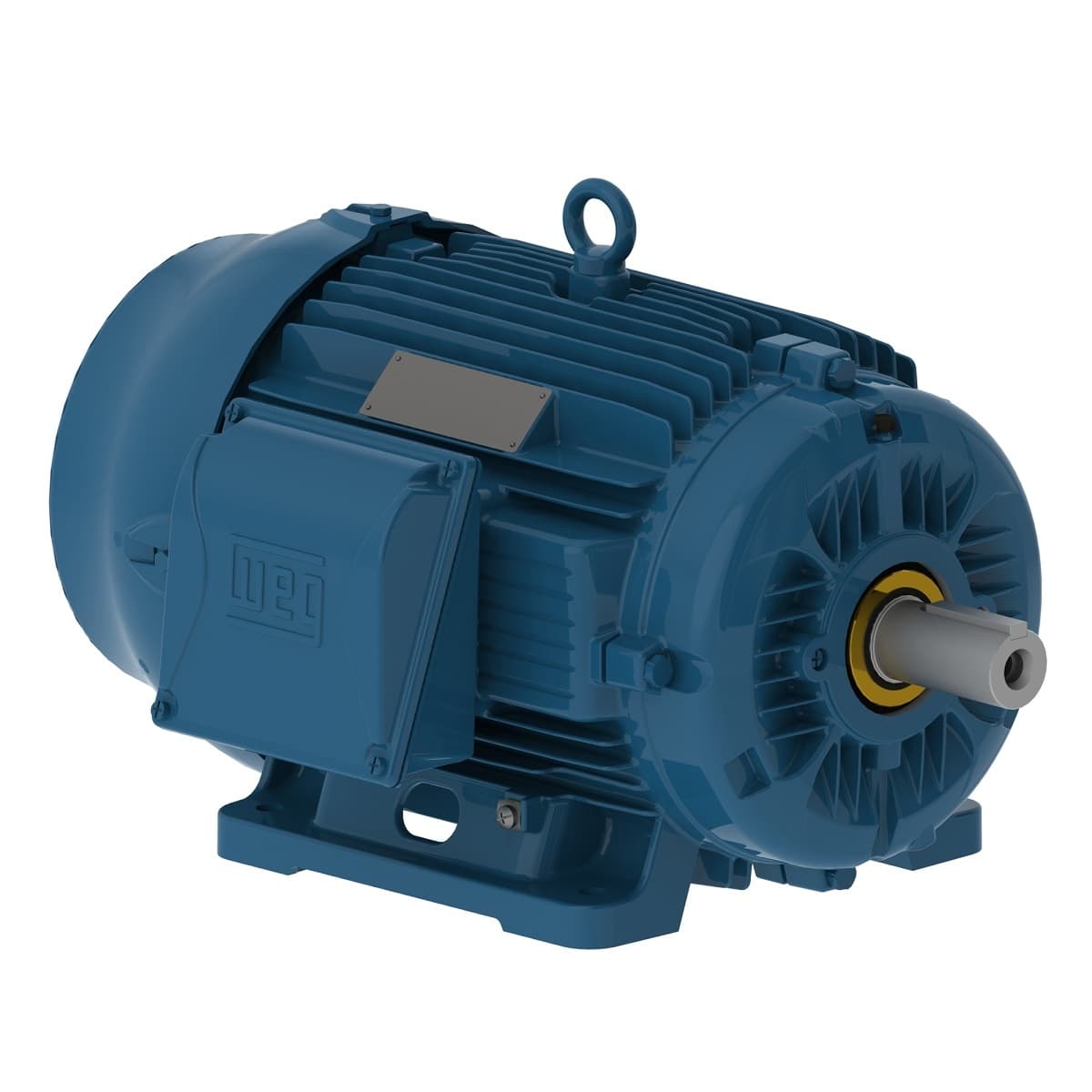

W22 IEEE 841 NEMA Premium Efficiency 15 HP 6P 284/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
