01089EP3HCT215V-W22 WEG AC Motors
Product Details
- Number of Poles 45508 Pole
- Voltage 575 V
- Output Rating 2.5/10 HP
- Rated Speed 1765 rpm
- Flange Type Without
- Frame 213/5T
- LRC 7.0x(Code J)
- Output 10 HP (7.5 kW)
- L. R. Amperes 72.8 A
- Ambient temperature -20°C to +40°C
- Output rating 2.5/10 HP
- Moment of inertia (J) 1.56 sq.ft.lb
- Enclosure IC411 - TEFC
- Rated speed 1765 rpm
- Rated torque 29.8 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 900/1800 rpm
- No load current 5.76 A
- Insulation Class F
- Voltage 575 V
- Number of Poles 8/4
- Service factor 1.15
- Mounting F-2
- Terminal box¹ Right position
- Duty Cycle Cont.(S1)
- Approx. weight³ 2.2 lb
- Frequency 60 Hz
- Breakdown torque 300 %
- Starting Method Direct On Line
- Number of poles 8/4
- Rated current 10.4 A
- Locked rotor torque 210 %
- Noise level² 61.0 dB(A)
- Flange Without
- Rated voltage 575 V
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Slip 1.94 %
- Locked rotor time 10s (cold) 6s (hot)
- Degree of Protection IP55
- Standard NEMA MG-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
01089EP3HCT215V-W22 Related Documents
Manufacturer warranty
01089EP3HCT215V-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

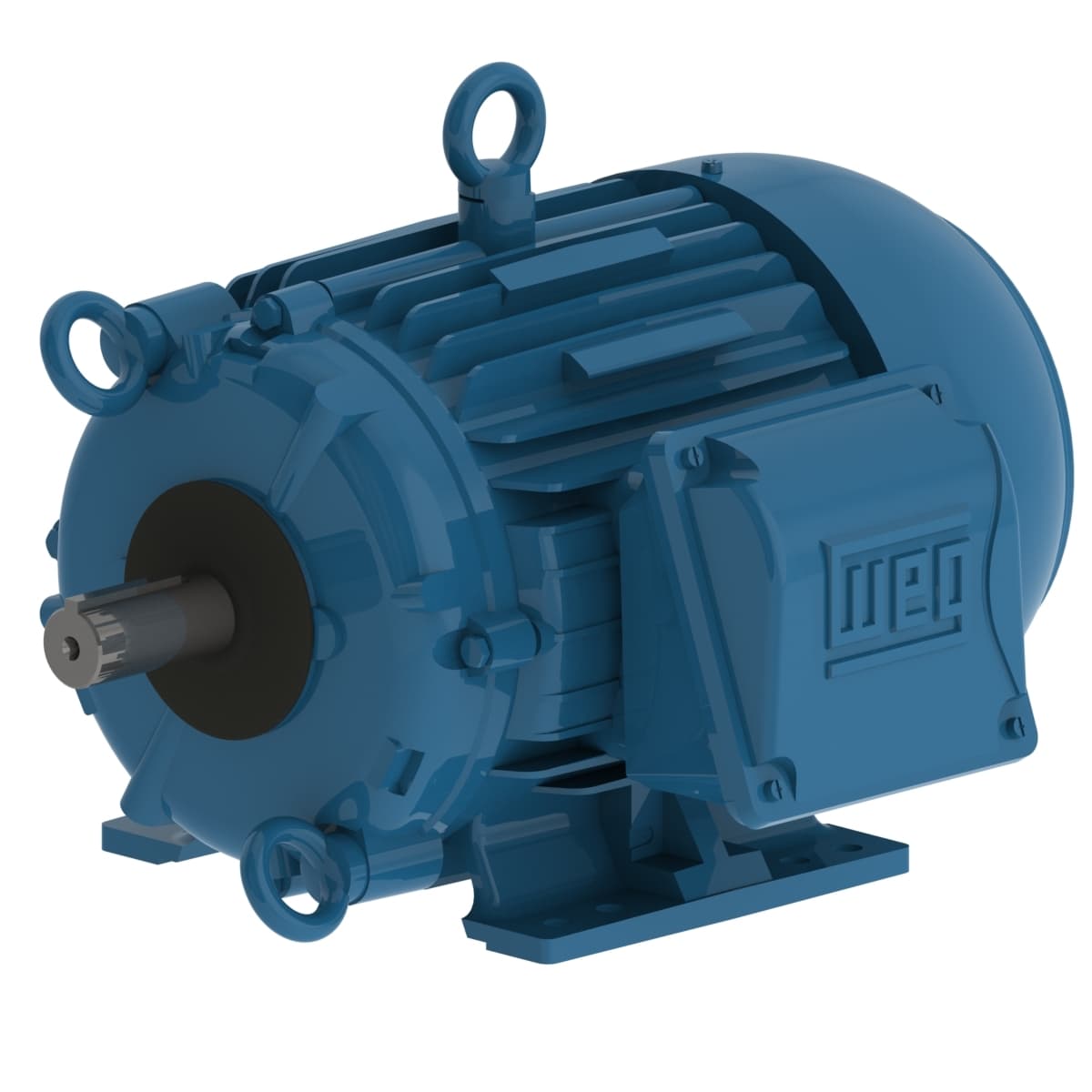

W22 Cooling Tower High Efficiency 2.5/10 HP 8/4P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
