01018ET3E215JM-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 10 HP
- Rated Speed 1760 rpm
- Flange Type C
- Terminal box¹ Left position
- Synchronous speed 1800 rpm
- Number of poles 4
- Standard NEMA MG-1
- Voltage 230/460//190-220/380-415 V
- Ambient temperature -20°C to +40°C
- Flange C
- Output rating 10 HP
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Noise level² 60.0 dB(A)
- Enclosure IC411 - TEFC
- Approx. weight³ 154 lb
- Mounting F-1
- Degree of Protection IP55
- Starting Method Direct On Line
- Locked rotor time 27s (cold) 15s (hot)
- Moment of inertia (J) 1.07 sq.ft.lb
- Insulation Class F
- Duty Cycle Cont.(S1)
- Breakdown torque 300 %
- Temperature rise 80 K
- Design B
- Rated torque 29.8 ft.lb
- Rated current 24.4/12.2 A
- LRC 7.0x(Code H)
- No load current 11.1/5.54 A
- Locked rotor torque 250 %
- Number of Poles 4
- Rated speed 1760 rpm
- Frame 213/5JM
- Slip 2.22 %
- Frequency 60 Hz
- L. R. Amperes 171/85.4 A
- Output 10 HP (7.5 kW)
- Rated voltage 230/460 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
01018ET3E215JM-S Related Documents
Manufacturer warranty
01018ET3E215JM-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

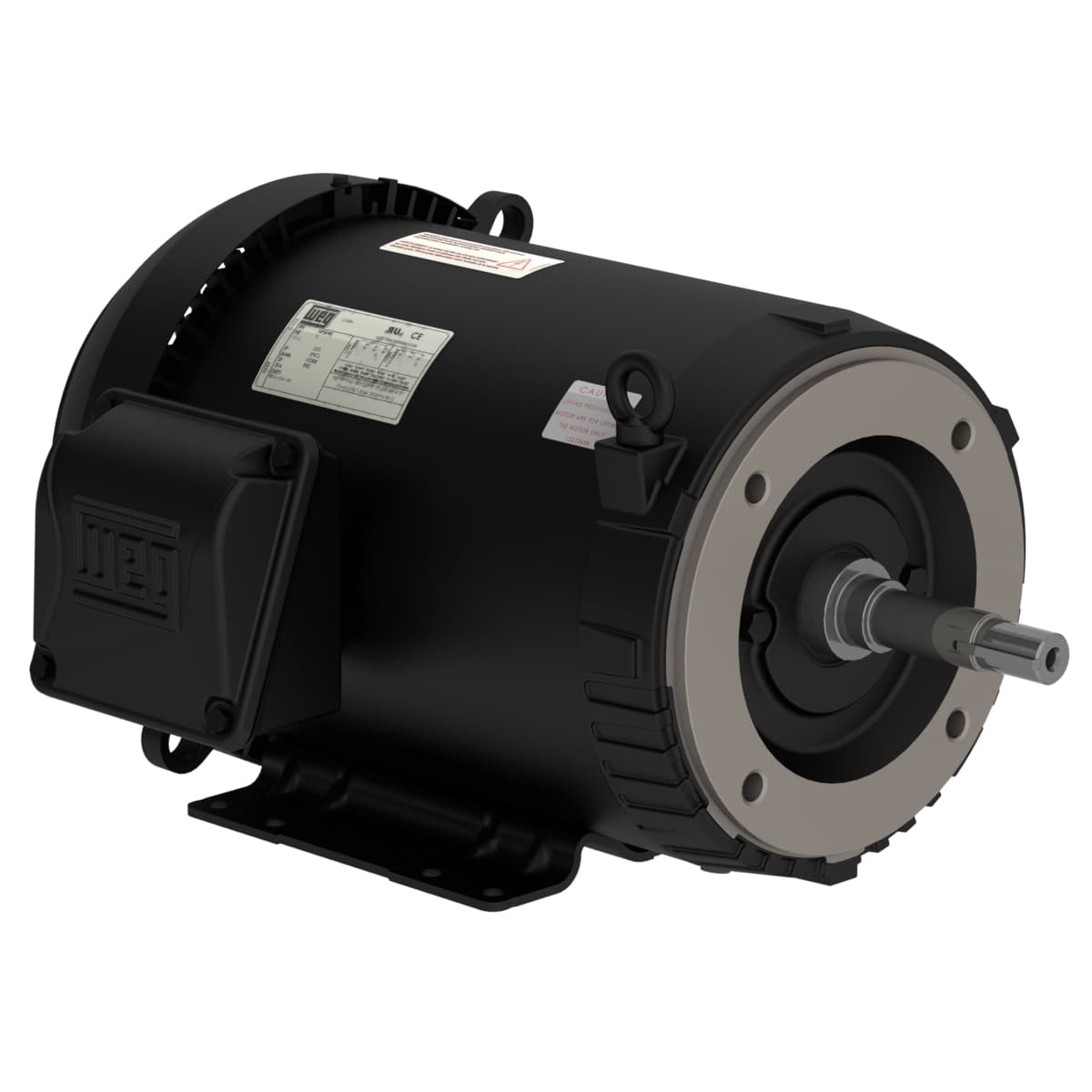

Rolled Steel JM Pump NEMA Premium Efficiency 10 HP 4P 213/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
