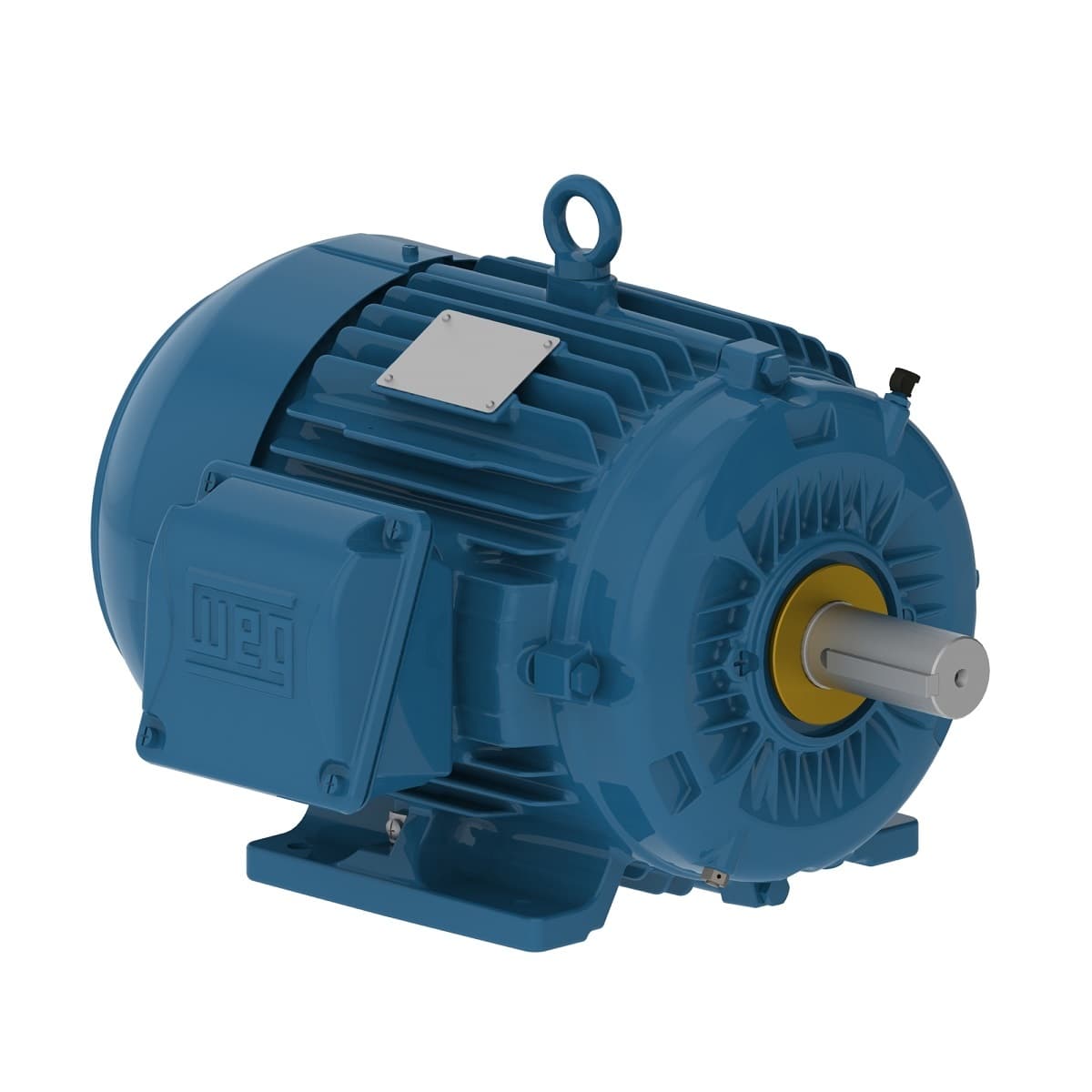

00736ST3QIE213T-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 7.5 HP
- Rated Speed 3525 rpm
- Flange Type Without
- Terminal box¹ Left position
- Output rating 7.5 HP
- Synchronous speed 3600 rpm
- Flange Without
- Noise level² 68.0 dB(A)
- Number of poles 2
- Standard NEMA MG-1
- Approx. weight³ 150 lb
- Voltage 460 V
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Mounting F-1
- Enclosure IC411 - TEFC
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Degree of Protection IP56
- Ambient temperature -20°C to +40°C
- Insulation Class F
- Moment of inertia (J) 0.4665 sq.ft.lb
- Temperature rise 80 K
- Service factor 1.25
- Breakdown torque 290 %
- Locked rotor torque 210 %
- Design B
- Locked rotor time 39s (cold) 22s (hot)
- No load current 3.20 A
- Rated torque 11.2 ft.lb
- LRC 7.2x(Code H)
- Rated speed 3525 rpm
- Rated current 8.97 A
- Frame 213/5T
- Number of Poles 2
- Frequency 60 Hz
- Rated voltage 460 V
- Slip 2.08 %
- Output 7.5 HP (5.5 kW)
- L. R. Amperes 64.6 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
