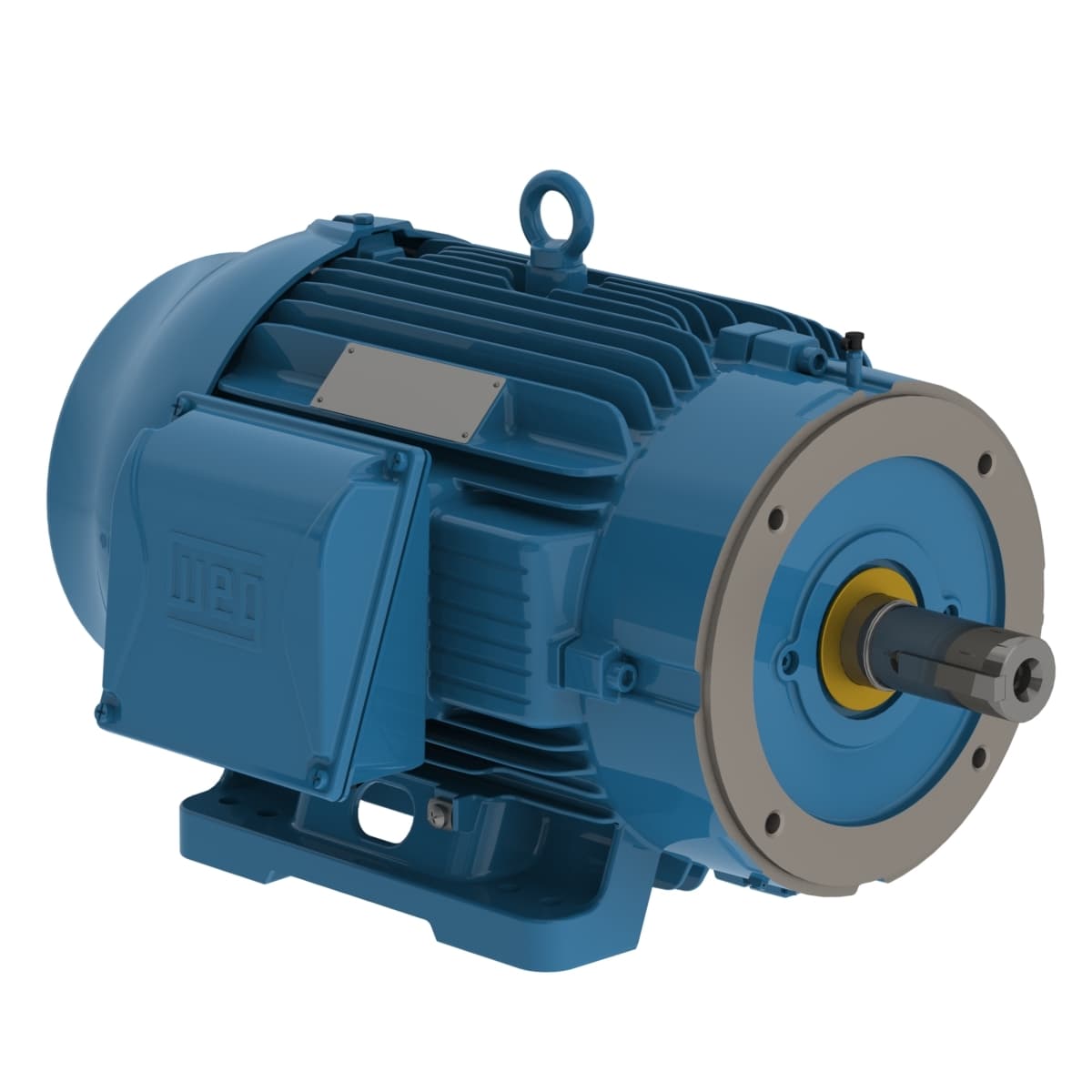

00709ST3QIE256TC-W22 WEG AC Motors
Product Details
- Number of Poles 8 Pole
- Voltage 460 V
- Output Rating 7.5 HP
- Rated Speed 880 rpm
- Flange Type C
- Terminal box¹ Left position
- Output rating 7.5 HP
- Number of poles 8
- Flange C
- Voltage 460 V
- Synchronous speed 900 rpm
- Standard NEMA MG-1
- Approx. weight³ 284 lb
- Noise level² 54.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Enclosure IC411 - TEFC
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Temperature rise 80 K
- Insulation Class F
- Service factor 1.25
- Moment of inertia (J) 4.43 sq.ft.lb
- Locked rotor torque 200 %
- Breakdown torque 250 %
- Locked rotor time 59s (cold) 33s (hot)
- No load current 6.50 A
- Design B
- Rated torque 44.8 ft.lb
- LRC 5.3x(Code G)
- Slip 2.22 %
- Frequency 60 Hz
- Number of Poles 8
- Frame 254/6TC
- L. R. Amperes 58.8 A
- Rated speed 880 rpm
- Output 7.5 HP (5.5 kW)
- Rated voltage 460 V
- Rated current 11.1 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
