00218ES1RFD182T WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 115/230 V
- Output Rating 2 HP
- Rated Speed 1725 rpm
- Flange Type Without
- Terminal box¹ Left position
- Flange Without
- Voltage 115/230 V
- Output rating 2 HP
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 83.7 lb
- Synchronous speed 1800 rpm
- Noise level² 55.0 dB(A)
- Number of poles 4
- Mounting F-1
- Standard NEMA MG-1
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Insulation Class F
- Locked rotor time 10s (cold) 6s (hot)
- Service factor 1.15
- Rated torque 6.09 ft.lb
- Moment of inertia (J) 0.2119 sq.ft.lb
- LRC 6.0x(Code H)
- Locked rotor torque 250 %
- Breakdown torque 240 %
- No load current 7.50/3.75 A
- L. R. Amperes 120/60.0 A
- Frequency 60 Hz
- Rated speed 1725 rpm
- Slip 4.17 %
- Number of Poles 4
- Output 2 HP (1.5 kW)
- Frame W182/4T
- Rated current 20.0/10.0 A
- Rated voltage 115/230 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00218ES1RFD182T Related Documents
Manufacturer warranty
00218ES1RFD182T WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

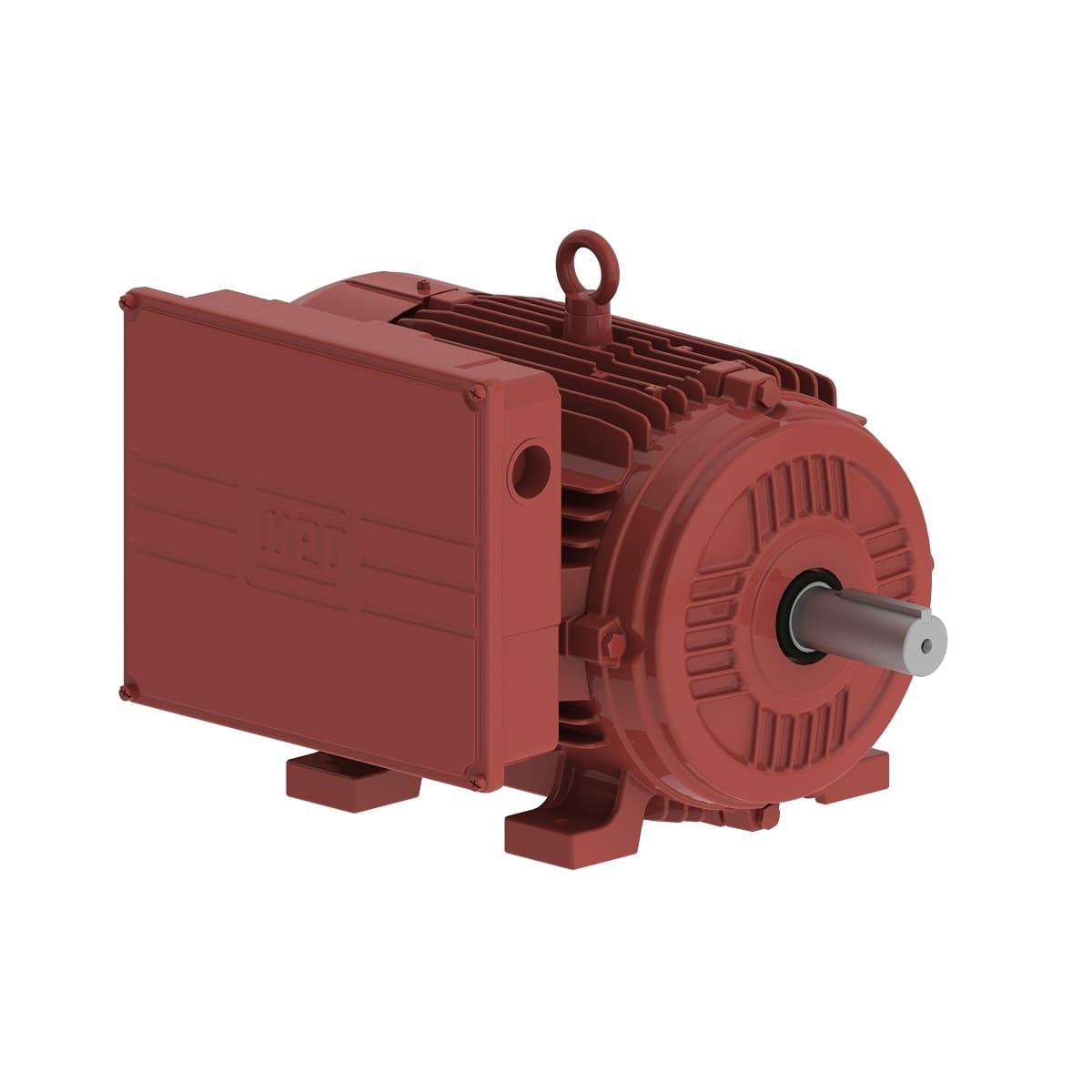

Farm Duty 2 HP 4P W182/4T 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted
