00118ET3V143T-SG WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 200/400 V
- Output Rating 1 HP
- Rated Speed 1765 rpm
- Flange Type Without
- Rotation¹ Both (CW and CCW)
- Flange Without
- Terminal box¹ Left position
- Noise level² 52.0 dB(A)
- Approx. weight³ 39.2 lb
- Number of poles 4
- Standard NEMA MG-1
- Output rating 1 HP
- Synchronous speed 1800 rpm
- Voltage 200/400 V
- Ambient temperature -20°C to +40°C
- Mounting F-1
- Altitude 1000 m.a.s.l.
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Service factor 1.15
- Starting Method Direct On Line
- Breakdown torque 300 %
- Duty Cycle Cont.(S1)
- Locked rotor time 34s (cold) 19s (hot)
- Locked rotor torque 280 %
- Design B
- Insulation Class F
- Moment of inertia (J) 0.1232 sq.ft.lb
- No load current 2.05/1.02 A
- LRC 8.6x(Code M)
- Rated torque 2.98 ft.lb
- L. R. Amperes 29.1/14.5 A
- Rated speed 1765 rpm
- Rated current 3.38/1.69 A
- Slip 1.94 %
- Frame 143/5T
- Frequency 60 Hz
- Rated voltage 200/400 V
- Number of Poles 4
- Output 1 HP (0.75 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00118ET3V143T-SG Related Documents
Manufacturer warranty
00118ET3V143T-SG WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

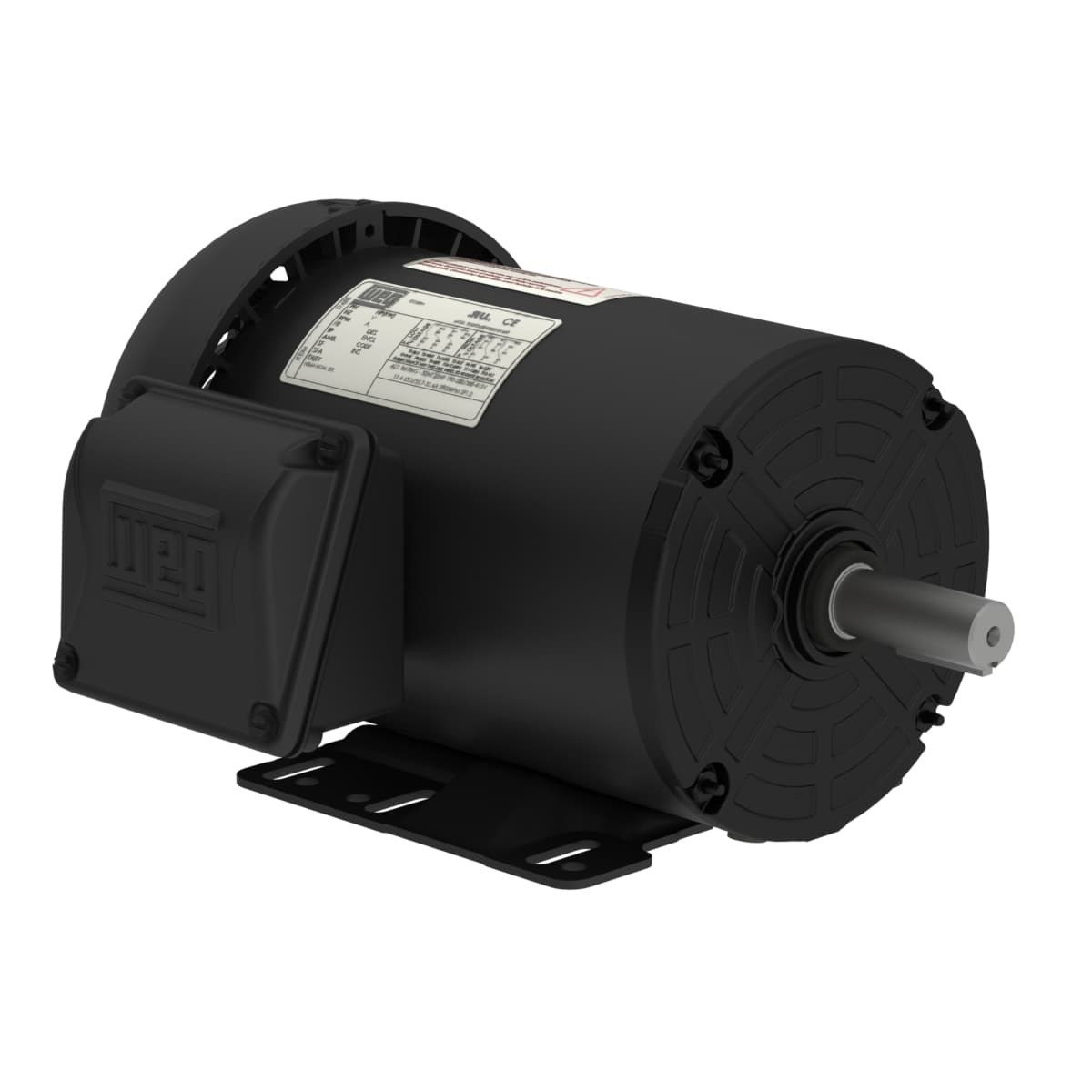

Rolled Steel NEMA Premium Efficiency 1 HP 4P 143/5T 3Ph 200/400 V 60 Hz IC411 - TEFC - Foot-mounted
