L9-2/2/C Sprecher + Schuh Miniature Circuit Breakers (MCBs)

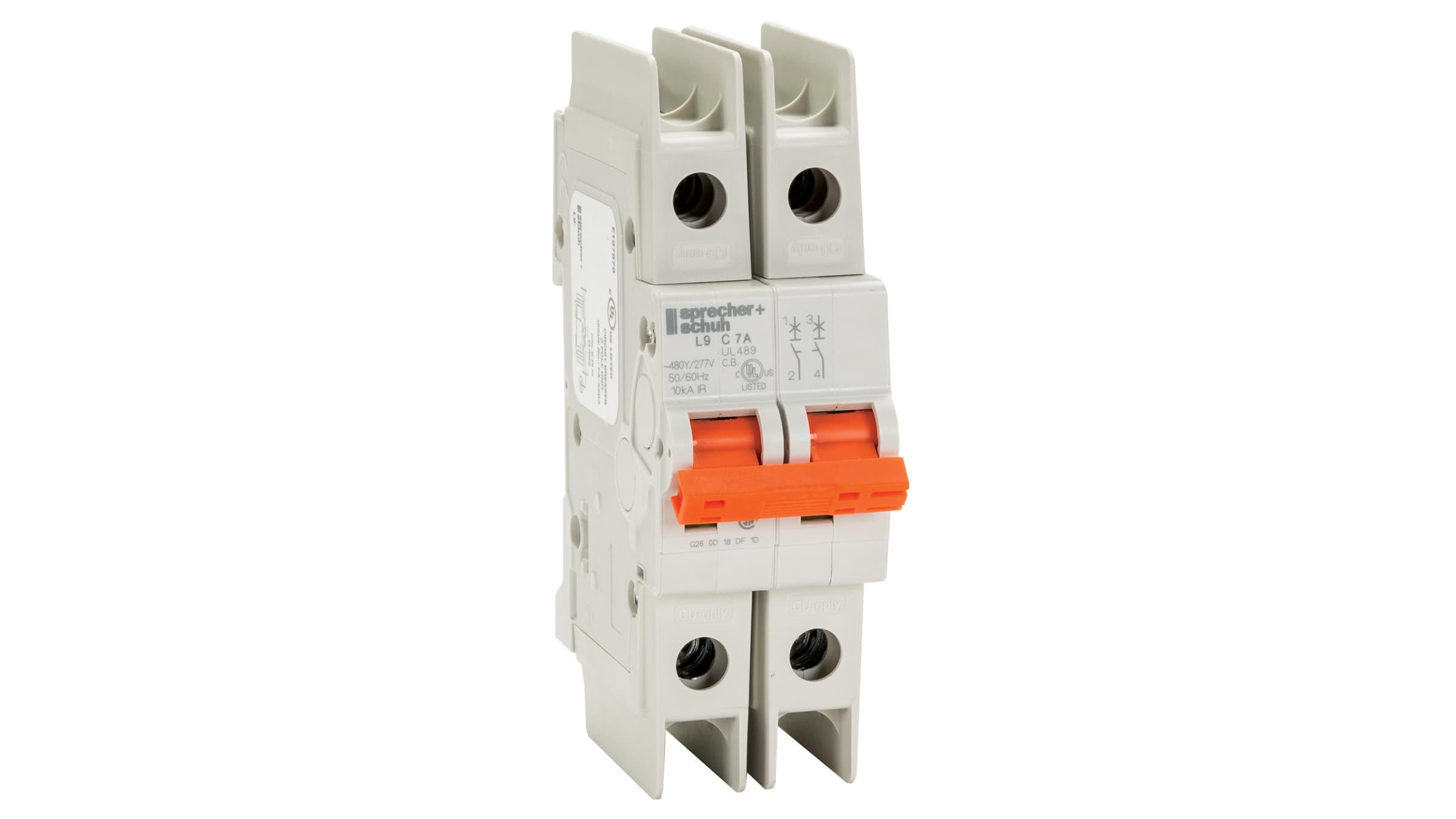

Sprecher + Schuh L9-2/2/C Sprecher + Schuh L9-2/2/C - Miniature Circuit Breakers, CURVE-C, 2A, 2-POLE, UL489/ CSA/ CE
Sprecher + Schuh

Part#:L9-2/2/C

Manufacturer:Sprecher + Schuh

Alt. Part#:L9-2/2/C

Product Lifecycle:Active

Get a quick Quote!

Sprecher + Schuh L9-2/2/C - Miniature Circuit Breakers, CURVE-C, 2A, 2-POLE, UL489/ CSA/ CE

About the manufacturer: Sprecher + Schuh is one of the manufacturers that offers Miniature Circuit Breakers (MCBs) that you can order at Advantage Electric Supply site. Sprecher + Schuh, established in Aarau, Switzerland in 1903 by two forward-thinking engineers, Carl Sprecher and Heinrich Schuh, has been providing reliable control and protection solutions to its clients for more than a hundred years.

Check out the L9-2/2/C Sprecher + Schuh price in the box on the right side or send a quick quote.

Product Details

  • Number of Poles
    2 Pole
  • Series
    L9
  • Weight
    999 g
  • Mounting
    DIN Rail
  • UL Certification
    YES
  • CSA Certification
    YES
  • CE Certification
    YES
  • Function
    Miniature Circuit Breakers
  • Current Rating
    2 A
  • Approvals
    UL489/ CSA/ CE
  • Trip Curve
    C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents L9-2/2/C Specs

L9-2/2/C L9_MiniCircuitBreakers.pdf

Manufacturer warranty

$183.22

Request a quote, and we will send availability within minutes.

Select Qty:

$183.22

$183.22 each

Average response time: 11 minutes
