D7P-LE4PN3RX02 Sprecher + Schuh Pushbuttons

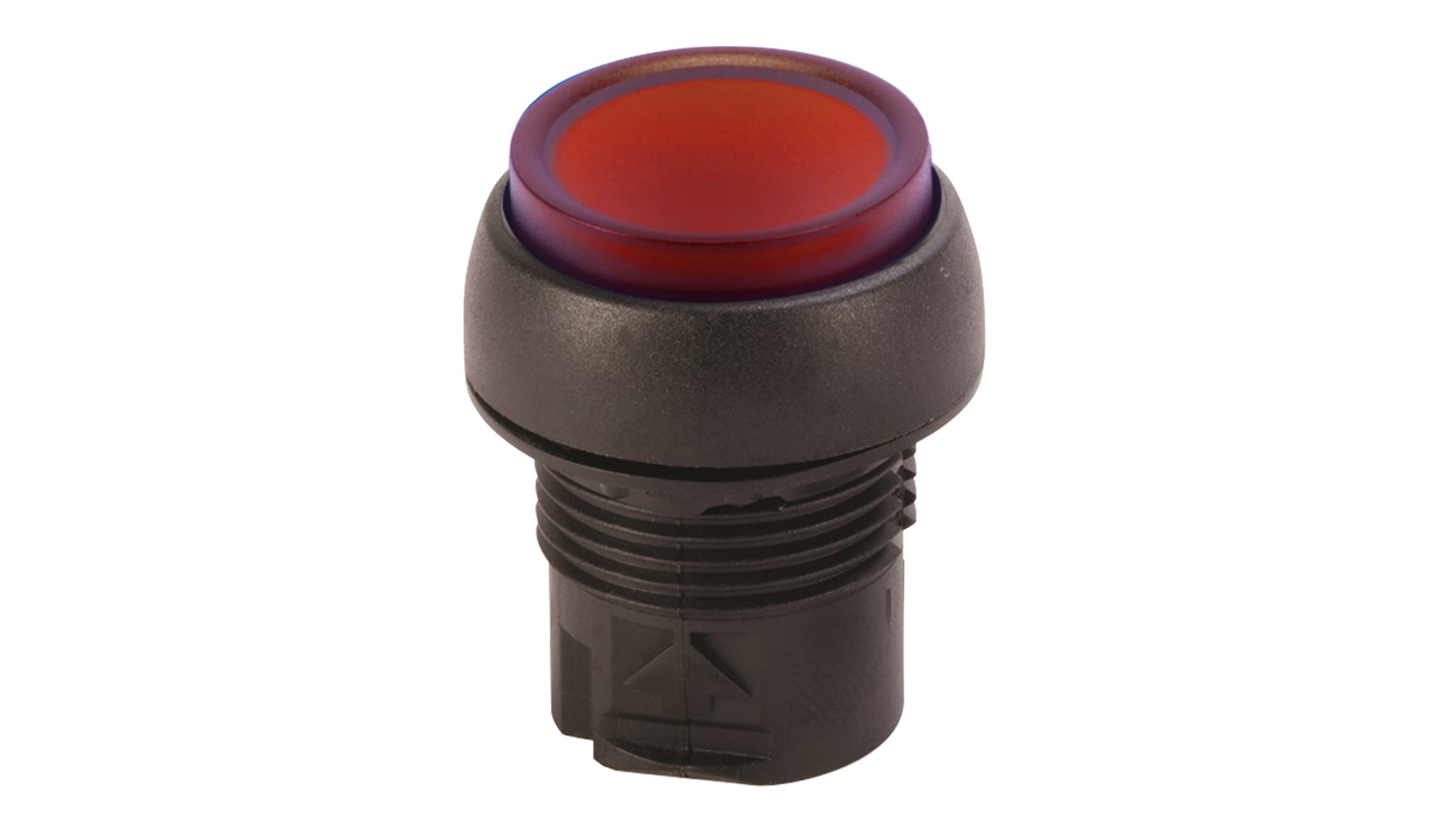

Sprecher + Schuh D7P-LE4PN3RX02 Sprecher + Schuh D7P-LE4PN3RX02 - D7 22mm Push Button, Illuminated, Plastic, Extended Momentary, Red, 24V AC/DC Red LED, Plastic Latch, 2NC Standard, UL Type 4/4X/13, IP66
Sprecher + Schuh

Part#:D7P-LE4PN3RX02

Manufacturer:Sprecher + Schuh

Alt. Part#:7P164PNBX02

Product Lifecycle:Active

Get a quick Quote!

Sprecher + Schuh D7P-LE4PN3RX02 - D7 22mm Push Button, Illuminated, Plastic, Extended Momentary, Red, 24V AC/DC Red LED, Plastic Latch, 2NC Standard, UL Type 4/4X/13, IP66

About the manufacturer: Sprecher + Schuh is one of the manufacturers that offers Pushbuttons that you can order at Advantage Electric Supply site. Sprecher + Schuh, established in Aarau, Switzerland in 1903 by two forward-thinking engineers, Carl Sprecher and Heinrich Schuh, has been providing reliable control and protection solutions to its clients for more than a hundred years.

Check out the D7P-LE4PN3RX02 Sprecher + Schuh price in the box on the right side or send a quick quote.

Product Details

  • Weight
    58.967 g
  • NEMA Rating
    Type 4/4X/13, IP66
  • Function
    Push Button, Illuminated
  • Contacts
    2NC
  • Panel hole diameter
    22.5 mm
  • Bezel Type
    Plastic
  • Operator Type
    Extended Momentary
  • Power Module
    24V AC/DC Red
  • Series
    D7P
  • Mounting
    Plastic Latch
  • Color
    Red
  • UL Certification
    YES
  • Illumination Type
    LED
  • CSA Certification
    YES
  • Approvals
    UL, CSA, CCC, CE
  • Terminal Type
    Screw - Standard
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents D7P-LE4PN3RX02 Specs

D7P-LE4PN3RX02 Section_H.pdf

Manufacturer warranty

$100.35

Request a quote, and we will send availability within minutes.

Select Qty:

$100.35

$100.35 each
