VIE-SS4P-M12-S-G-7,5M-GN-2-X-D-1 Schmersal Cable Assemblies
Part#:VIE-SS4P-M12-S-G-7,5M-GN-2-X-D-1
Alt. Part#:103013440
Manufacturer:Schmersal
Category:Cable Assemblies
Product Lifecycle:Active
Product description

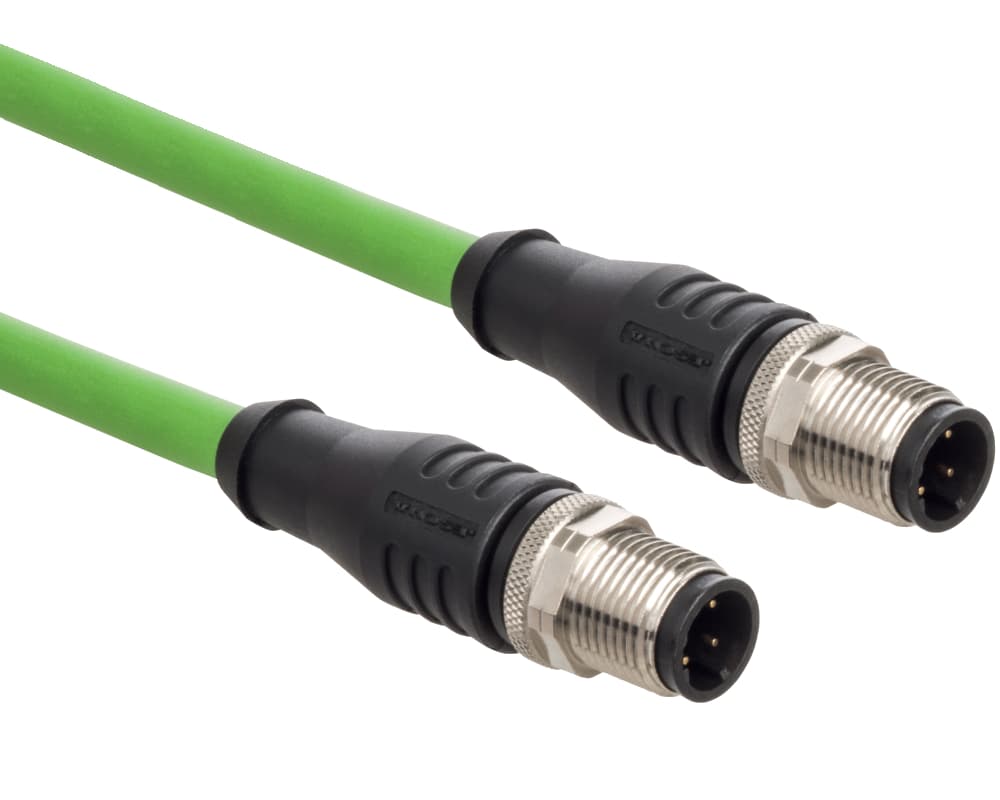

VIE-SS4P-M12-S-G-7,5M-GN-2-X-D-1 Schmersal - Ethernet cable, double ended M12 4-pole connections, 7.5 meters (SFB to SFB)
Product Details
- Rated operating voltage 60 V
- Temperature (repeated), minimum -30 °C
- Temperature (fixed), minimum -40 °C
- Temperature (fixed), maximum +75 °C
- Connector latching Screw locking
- Material of the Cable mantle PUR
- Connector typ Male connector, M12
- Material of the handle Plastic, TPU
- Material of the gland Metal, CuZn, nickel-plated
- Cable drag chain suitable Yes (1)
- Tightening torque, maximum 1 Nm
- Number of cable wires 4
- Thermal test current 4 A
- Temperature (repeated), maximum +70 °C
- Ambient temperature, maximum (Connector) +90 °C
- Ambient temperature, minimum (Connector) -30 °C
- Degree of protection IP65, IP67, IP68
- Colour of the handle Black
- Connector coding D
- Colour of the Cable mantle Green
- Bending radius (fixed) 4 x Ø-cable
- Design straight
- Bending radius (repeated) 8 x Ø-cable
- Cable diameter 6.5 mm
- Length of cable 7.5 m
- Wire cross-section 0.25 mm2
- Gross weight 489.2 g
- Versions straight
- Halogen free Yes (1)
- Standards IEC 61076-2-109
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VIE-SS4P-M12-S-G-7,5M-GN-2-X-D-1 on Advantage Electric Supply is $171.00. Order now.
