TFH 232-11UEDR Schmersal Electronic Components
Part#:TFH 232-11UEDR
Manufacturer:Schmersal
Category:Electronic Components
Alt. Part#:101181536
Product Lifecycle:Active
Get a quick Quote!

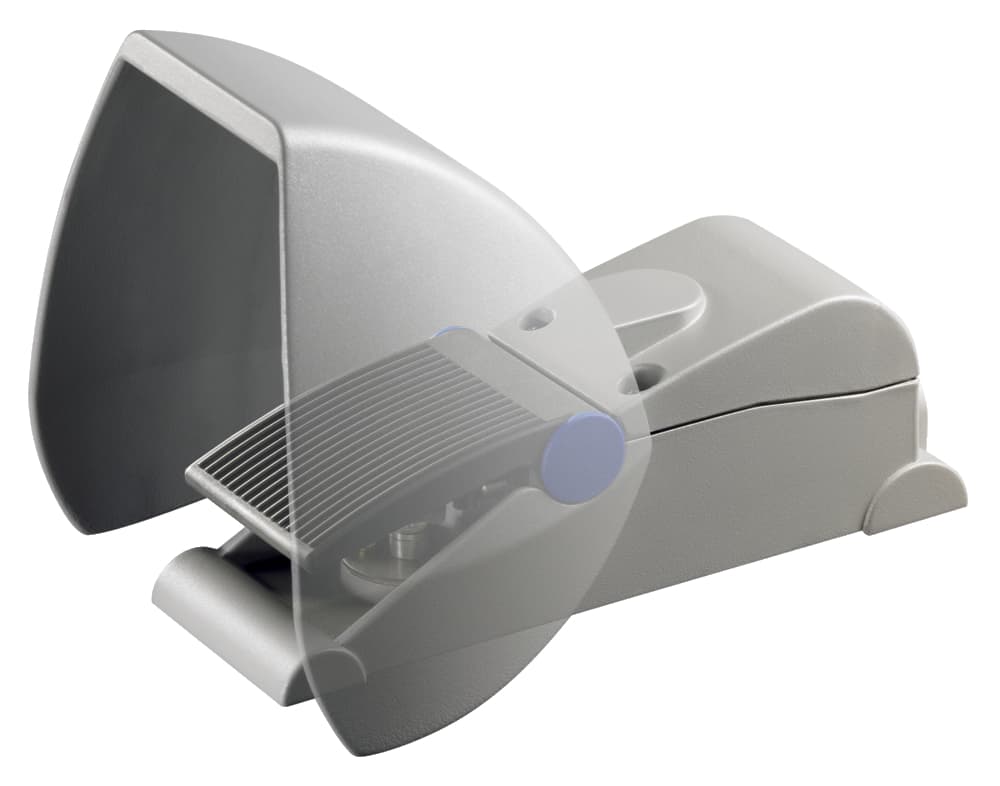

Foot switch; 2 Contacts; 1 Cable entry M 20 x 1.5; Protective shield with wide opening; Low operating height of pedal; High level of stability
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TFH 232-11UEDR Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching element NO contact, NC contact
- Switching frequency 3,600 /h
- Switching principle Creep circuit element
- Utilisation category DC-13 24 VDC
- Utilisation category AC-15 4 A
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Thermal test current 10 A
- Degree of pollution to VDE 0100 3
- Rated impulse withstand voltage Uimp 6 kV
- Restistance to shock 30 g / 11 ms
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz (0.35 mm / 5 g)
- Rated insulation voltage Ui 500 V
- Note (Relative humidity) non-condensing, non-icing
- Relative humidity, minimum 30 %
- Storage and transport temperature, maximum +85 °C
- Ambient temperature, maximum +60 °C
- Storage and transport temperature, minimum -25 °C
- Ambient temperature, minimum -25 °C
- Degree of protection IP65 to EN 60529
- Depth 274 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Cable section, maximum 2.5 mm²
- Material of the protective shield Aluminium
- Overvoltage category III
- Relative humidity, maximum 95 %
- Height 189 mm
- Width 170 mm
- Terminal Connector Screw connection
- Number of shutters 1
- Number of openers 1
- Mechanical life, minimum 1,000,000 Operations
- Suitable for EMERGENCY-OFF Yes
- Latching Yes
- Enclosure coating material powder-coated
- Standards EN 60947-5-1, DIN VDE 0660-200, BG-GS-ET-15
- Material of the pedal Glass-fibre, reinforced thermoplastic
- Gross weight 1,765 g
- Colour of the product White aluminum
- Probing possible Yes
- Enclosure material Aluminium
- Material of the cover Aluminium
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents TFH 232-11UEDR Specs
