TF 232-22 Schmersal Electronic Components

Name: TF 232-22
Brand: Schmersal

Part#:TF 232-22

Alt. Part#:151181525

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

Foot switch; 4 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types

Product Details

Switching principle
Slow action
Switching element
NO contact, NC contact
Utilisation category DC-13
24 VDC
Thermal test current
10 A
Rated impulse withstand voltage Uimp
6 kV
Utilisation category AC-15
4 A
Rated insulation voltage Ui
500 V
Ambient temperature, maximum
+70 °C
Ambient temperature, minimum
-25 °C
Degree of protection
IP65 to EN 60529
Depth
274 mm
Enclosure coating material
powder-coated
Height
189 mm
Probing possible
Yes
Standards
BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
Gross weight
1,200.6 g
Width
170 mm
Material of the cover
Aluminium
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Colour of the housing
RAL 9006 (White aluminum)

Cable section, maximum

1 x 2.5 mm²

Terminal Connector

Screw connection

Mechanical life, minimum

1,000,000 Operations

Enclosure material

Aluminium

Material of the protective shield

Aluminium

Number of shutters

Number of openers

Material of the pedal

Glass-fibre, reinforced thermoplastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TF 232-22 Related Documents

Datasheet-1637110901965.pdf

Similar products from: Schmersal Electronic Components

Z 6881-11-1-80R-I

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

3 in stock

Manufacturer warranty

TF 232-22 Schmersal

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare TF 232-22 with other Electronic Components products

Switching principle

Switching element

Utilisation category DC-1...

Thermal test current

Rated impulse withstand v...

Utilisation category AC-1...

Rated insulation voltage ...

Ambient temperature, maxi...

Ambient temperature, mini...

Degree of protection

Selected product

Backordered

Schmersal

Foot switch; 4 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable ...

Switching principleSlow action

Switching elementNO contact, NC contact

Utilisation category DC-1324 VDC

Thermal test current10 A

Rated impulse withstand voltage Uimp6 kV

Utilisation category AC-154 A

Rated insulation voltage Ui500 V

Ambient temperature, maximum+70 °C

Ambient temperature, minimum-25 °C

Degree of protectionIP65 to EN 60529

3 in stock

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

Switching principle-

Switching element-

Utilisation category DC-13-

Thermal test current-

Rated impulse withstand voltage Uimp-

Utilisation category AC-15-

Rated insulation voltage Ui-

Ambient temperature, maximum-

Ambient temperature, minimum-

Degree of protection-

11 in stock

Weidmuller

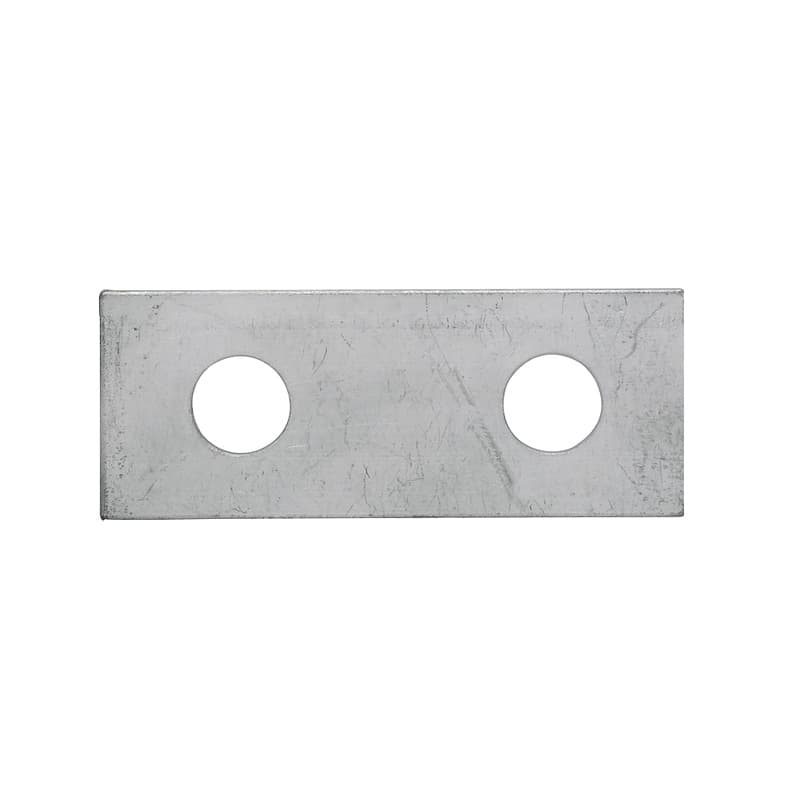

Bolt-type screw terminals, Cross-connector, No. of poles: 2, 269A, WQL 2 WF10
