TESZX1110/S Schmersal Safety Switches
Part#:TESZX1110/S
Alt. Part#:101031673
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

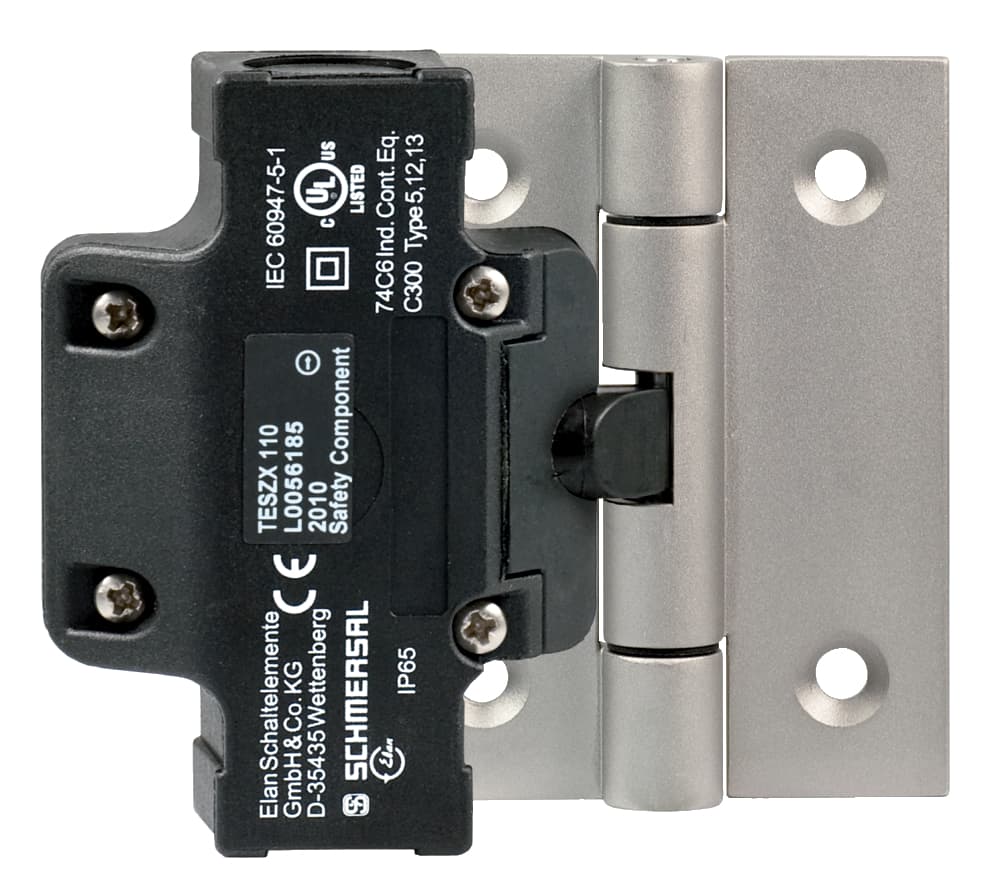

TESZX1110/S Schmersal - Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 40 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
Product Details
- Utilisation category DC-13 1 A
- Switching frequency 120 /h
- Switching element Opener (NC)
- Switching principle Creep circuit element
- Thermal test current 2.5 A
- Utilisation category AC-15 230 VAC
- Rated impulse withstand voltage Uimp 2.5 kV
- Rated insulation voltage Ui 250 V
- Ambient temperature, minimum -25 °C
- Ambient temperature, maximum +65 °C
- Degree of protection IP65
- Height of sensor 92 mm
- Material of the contacts, electrical Silver
- Width of sensor 111.5 mm
- Length of sensor 36 mm
- Length x Width x Height Suitable for mounting to profile systems: 40 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Cable section, maximum 1 mm²
- Cable section, minimum 0.5 mm²
- Terminal Connector Screw connection
- Positive break force, minimum 1 N
- Material of the hinge Stainless steel
- Gross weight 457 g
- Number of safety contacts 3
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Positive break angle 14 °
- mounting hinge Yes
- Standards IEC/EN 60947-5-1, BG-GS-ET-15
- Mechanical life, minimum 1,000,000 Operations
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
