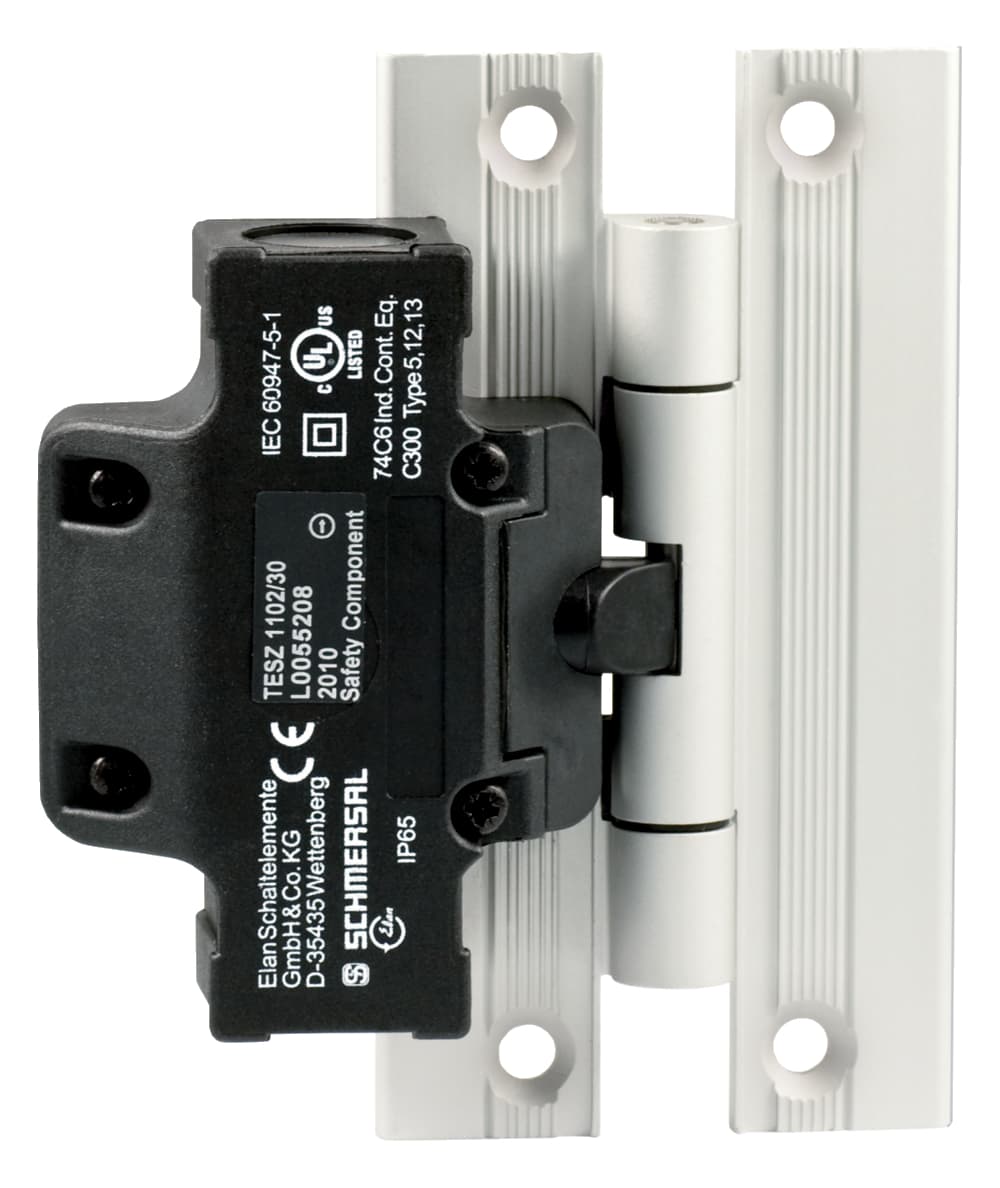

TESZ1102/S/30 Schmersal Safety Switches
Part#:TESZ1102/S/30
Manufacturer:Schmersal
Category:Safety Switches
Alt. Part#:101030509
Product Lifecycle:Active
Get a quick Quote!
TESZ1102/S/30 Schmersal - Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 30 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TESZ1102/S/30 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching frequency 120 /h
- Switching principle Creep circuit element
- Switching element NO contact, NC contact
- Utilisation category DC-13 1 A
- Positive break angle 14 °
- Rated insulation voltage Ui 250 V
- Utilisation category AC-15 2 A
- Thermal test current 2.5 A
- Rated impulse withstand voltage Uimp 2.5 kV
- Ambient temperature, minimum -25 °C
- Degree of protection IP65
- Ambient temperature, maximum +65 °C
- Height of sensor 92 mm
- Cable section, maximum 1 mm²
- Length x Width x Height Suitable for mounting to profile systems: 30 mm
- Width of sensor 111.5 mm
- Length of sensor 36 mm
- Number of safety contacts 2
- Terminal Connector Screw connection
- mounting hinge Yes
- Positive break force, minimum 1 N
- Cable section, minimum 0.5 mm²
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Number of auxiliary contacts 1
- Mechanical life, minimum 1,000,000 Operations
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Standards IEC/EN 60947-5-1, BG-GS-ET-15
- Material of the hinge Aluminium
- Material of the contacts, electrical Silver
- Gross weight 300 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TESZ1102/S/30 Description
TESZ1102/S/30 Schmersal - Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 30 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
