T4V7H 335-02ZH Schmersal Electronic Components
Part#:T4V7H 335-02ZH
Alt. Part#:101082573
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

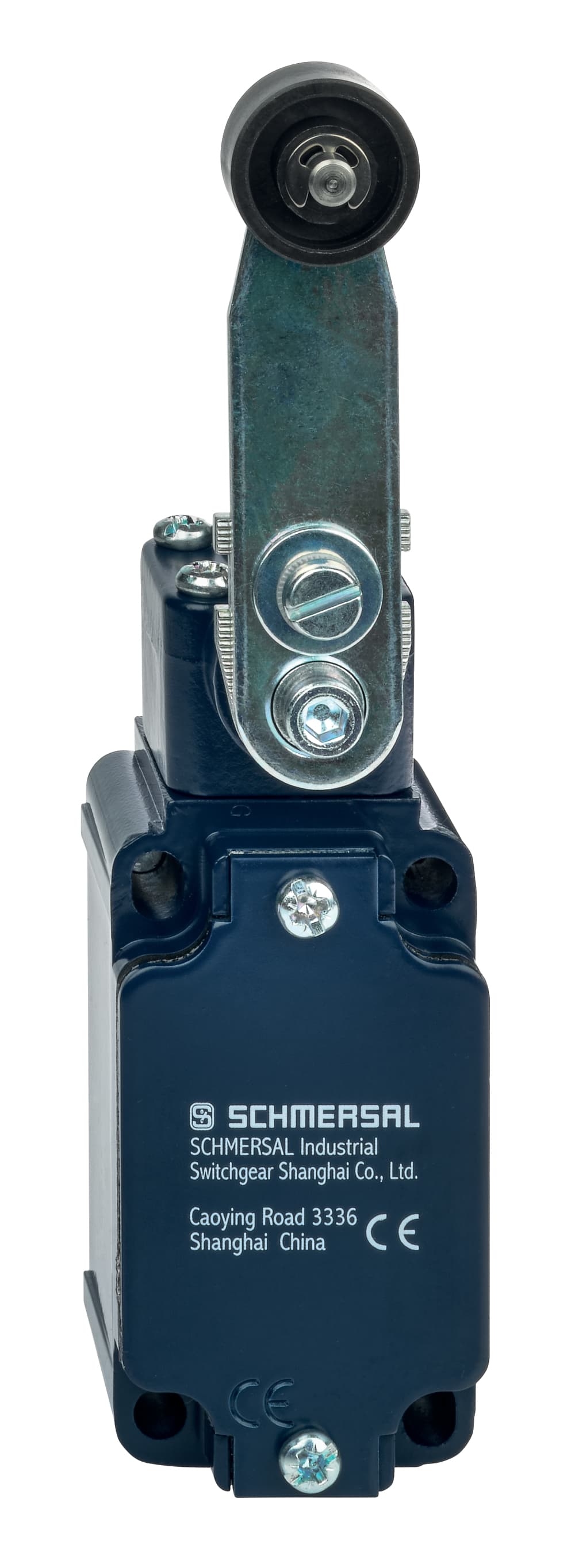

Position switch; 335; 1 Cable entry M 20 x 1.5; Metal enclosure; Wide range of alternative actuators; Good resistance to oil and petroleum spirit; 40,5 mm x 76 mm x 38 mm; Actuator heads can be repositioned by 4 x 90°; only for positioning tasks; Design t
Product Details
- Switching frequency 5,000 /h
- Rated impulse withstand voltage Uimp 6 kV
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Bounce duration, maximum 2 ms
- Switching principle Slow action with staggered contacts
- Switching element Opener (NC)
- Utilisation category DC-13 24 VDC
- Utilisation category AC-15 4 A
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Rated insulation voltage Ui 500 V
- Ambient temperature, maximum +80 °C
- Thermal test current 10 A
- Ambient temperature, minimum -30 °C
- Height of sensor 173.5 mm
- Width of sensor 40.5 mm
- Length of sensor 57.3 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Cable section, minimum 0.75 mm²
- Cable section, maximum 2.5 mm²
- Terminal Connector Screw connection
- Actuating torque, minimum 0.3 Nm
- Actuating speed, maximum 2.5 m/s
- Note (Switchover time) Switchover time in accordance with actuating speed
- Mechanical life, minimum 30,000,000 Operations
- Actuating element Roller lever
- Material of the contacts, electrical Silver
- Enclosure material Light alloy die-casting
- Housing construction form Norm construction design
- Lever material Metal film
- Gross weight 265 g
- Roller material Plastic
- Number of safety contacts 2
- Enclosure coating material painted
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
