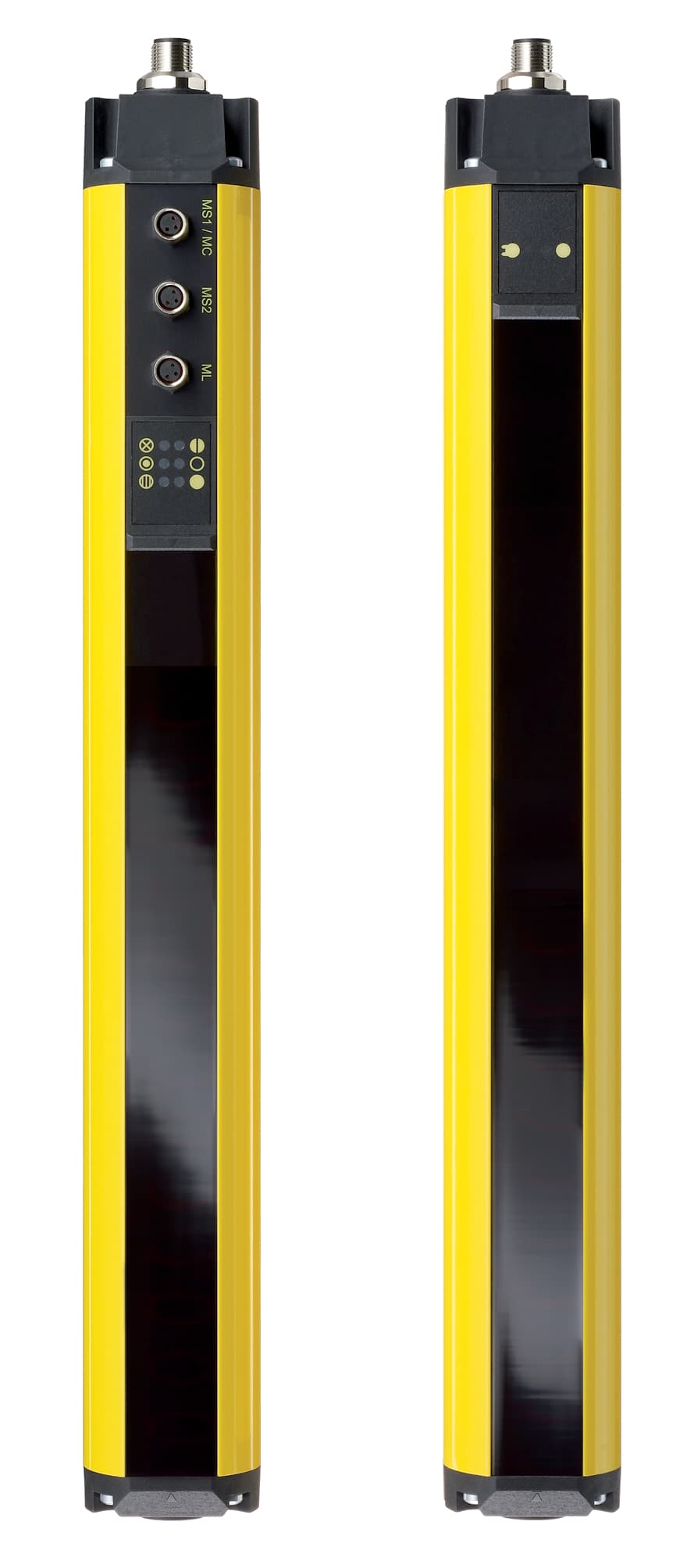

SLG 425I-E/R0900-04-RF Schmersal Electronic Components
Part#:SLG 425I-E/R0900-04-RF
Alt. Part#:101207665
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Safety light grids and curtains (Archive); Safety light grids (archive); Protection class IP67; Safety type 4 in accordance with IEC 61496-1; 2-, 3-, 4-beam; Range from 0,3 m … 18 m
Product Details
- Ambient temperature, maximum +50 °C
- Voltage type DC (direct current)
- Electrical power consumption of the transmitter 4 W
- Output current, (fail-safe output), maximum 0.5 A
- Versions p-type
- Protection rating III
- Switching voltage OSSD, HIGH signal 24 V
- Length of cable, maximum 100 m
- Electrical power consumption of the receiver 8 W
- Storage and transport temperature, maximum +70 °C
- Ambient temperature, minimum -10 °C
- Storage and transport temperature, minimum -25 °C
- Height of transmitter 1,124 mm
- Terminal connector, Recipient Connector plug M12, 8-pole
- Degree of protection IP67 to EN 60529
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Height of Receiver 1,188 mm
- Diameter of sensor 49 mm
- Length of cable 100 m
- Standards IEC/EN 61496-1/-2
- Wave length of the sensor 880 nm
- Range, protection field, maximum 18,000 mm
- Terminal Connector Connector
- Enclosure material Aluminium
- Range, protection field, minimum 300 mm
- Height of the protection field 900 mm
- Detection ability for test bodies at v = 1.6 m/s 900 mm
- Reaction time, maximum 15 ms
- Number of fail-safe digital outputs 2
- Restart interlock (manual reset) Yes
- Gross weight 4,000 g
- Integral System Diagnostics Yes
- Integral System Diagnostics, status Yes
- Override Yes
- Number of beams 4
- Beam coding available Yes
- Muting function Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
