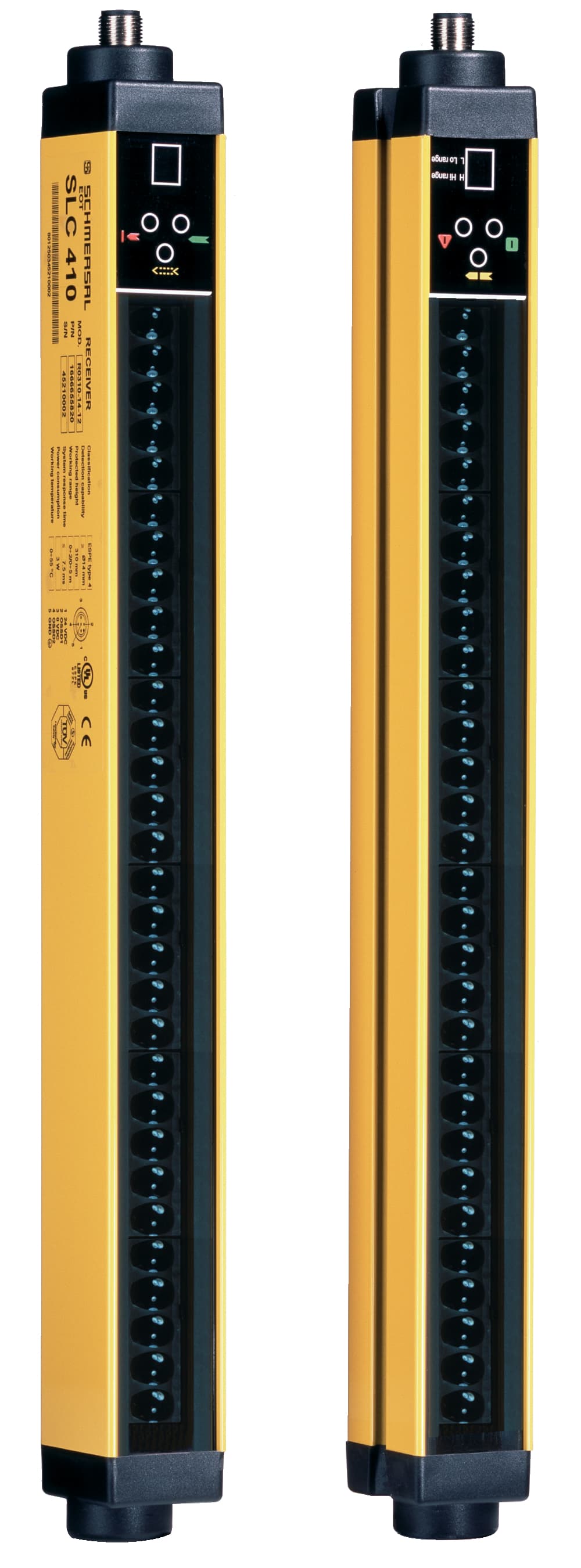

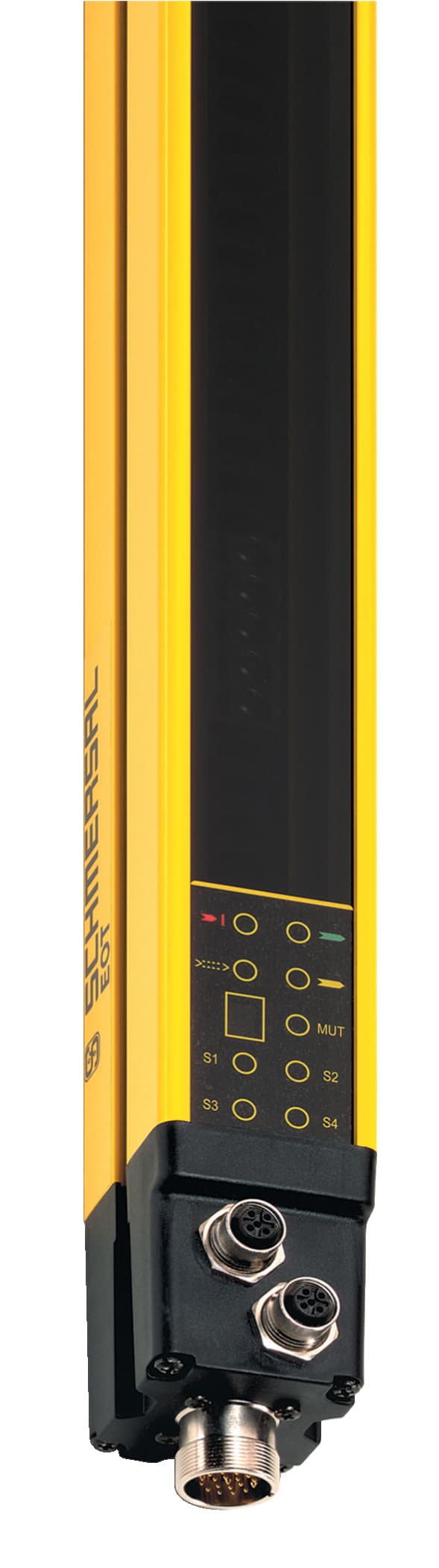

SLC 410-E/R0460-90-RF Schmersal Safety Light Curtains

Product Details

• Electrical power consumption of the transmitter
  2 W
• Output current, (fail-safe output), maximum
  0.5 A
• Versions
  p-type
• Electrical power consumption of the receiver
  3 W
• Switching voltage OSSD, HIGH signal
  24 V
• Voltage type
  DC (direct current)
• Protection rating
  III
• Ambient temperature, maximum
  +55 °C
• Storage and transport temperature, minimum
  -20 °C
• Storage and transport temperature, maximum
  +70 °C
• Degree of protection
  IP65 to EN 60529
• Ambient temperature, minimum
  +0 °C
• Height of sensor
  561 mm
• Length of the connectable cable, maximum
  100 m
• Terminal, Connector, Transmitter
  Connector plug M12, 5-pole
• Width of sensor
  45 mm
• Terminal connector, Recipient
  Connector plug M12, 8-pole
• Length of sensor
  35 mm
• Terminal Connector
  Connector
• Wave length of the sensor
  950 nm
Range, protection field, maximum
5,000 mm
Range, protection field, minimum
0 mm
Reaction time, maximum
6 ms
Number of beams
7
Integral System Diagnostics, status
Yes
Beam coding available
Yes
Enclosure material
Aluminium
Height of the protection field
460 mm
Detection ability for test bodies at v = 1.6 m/s
90 mm
Number of fail-safe digital outputs
2
Restart interlock (manual reset)
Yes
Integral System Diagnostics
Yes
Standards
IEC/EN 61496-1/-2

Related documents SLC 410-E/R0460-90-RF Specs
