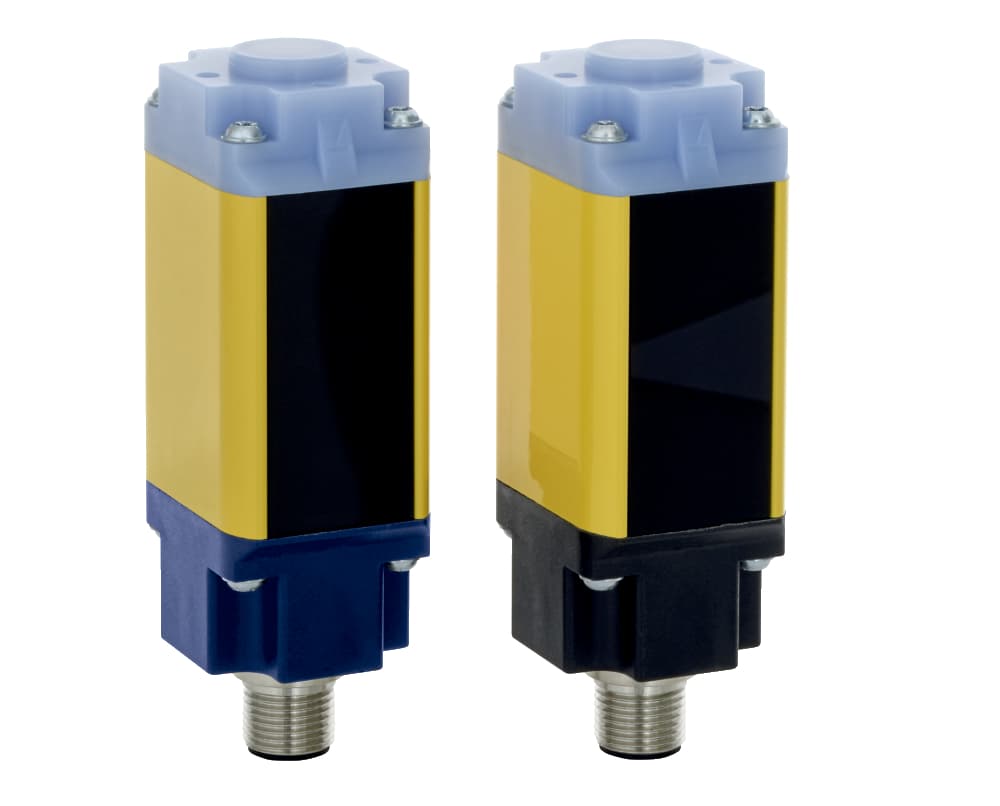

SLB240-ER-2-ST Schmersal Safety Light Curtains
Part#:SLB240-ER-2-ST
Manufacturer:Schmersal
Alt. Part#:103013803
Product Lifecycle:Active
Get a quick Quote!
SLB240-ER-2-ST Schmersal - Safety light barriers; SLB 240 Series -; Compact design With integral evaluation; Range 15 m; Safe OSSD outputs to PLc; Automatic start or restart interlock; Sturdy metal enclosure with M12 connector or cable; Set-up tool and diagnostic indication
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLB240-ER-2-ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Electrical power consumption of the transmitter, maximum 5 W
- Output current, (fail-safe output), maximum 0.2 A
- Electrical power consumption of the receiver, maximum 5 W
- Versions p-type
- Length of cable, maximum 100 m
- Switching voltage OSSD, HIGH signal 24 V
- Protection rating III
- Storage and transport temperature, minimum -30 °C
- Storage and transport temperature, maximum +70 °C
- Voltage type DC (direct current)
- Ambient temperature, minimum -30 °C
- Ambient temperature, maximum +50 °C
- Degree of protection IP67 to EN 60529
- Width 27.8 mm
- Height 91 mm
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Standards EN 61496-1, EN 61496-2
- Length 33 mm
- Terminal connector, Recipient Connector plug M12, 5-pole
- Wave length of the sensor 880 nm
- Enclosure material Aluminium
- Terminal Connector Connector M12
- Range, protection field, maximum 15,000 mm
- Reaction time, minimum 7 ms
- Detection ability for test bodies at v = 1.6 m/s 40 mm
- Range, protection field, minimum 300 mm
- Coding, light barrier beam 2
- Number of fail-safe digital outputs 2
- Restart interlock (manual reset) Yes
- Number of beams 1
- Integral System Diagnostics, status Yes
- Beam coding available Yes
- Reaction time, maximum 22 ms
- Gross weight 170 g
- Integral System Diagnostics Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLB240-ER-2-ST Description
SLB240-ER-2-ST Schmersal - Safety light barriers; SLB 240 Series -; Compact design With integral evaluation; Range 15 m; Safe OSSD outputs to PLc; Automatic start or restart interlock; Sturdy metal enclosure with M12 connector or cable; Set-up tool and diagnostic indication
