SDG01.1103 Schmersal Safety Switches

SDG01.1103 on Advantage Electric Supply
Schmersal

Part#:SDG01.1103

Alt. Part#:101016704

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

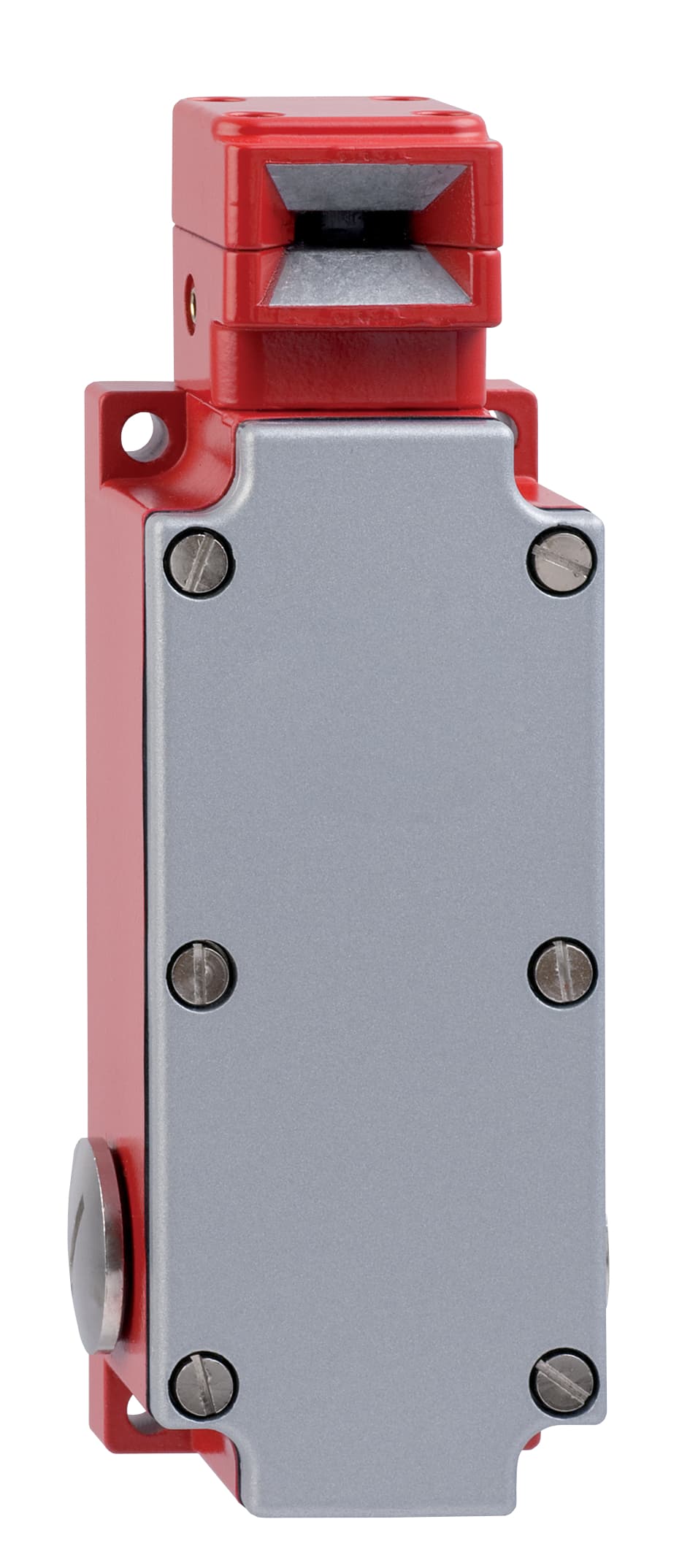

SDG01.1103 Schmersal - Safety switch with separate actuator; Head positioned to the front; Metal enclosure; 50 mm x 152 mm x 43 mm; Long life

Product Details

  • Utilisation category DC-13
    24 VDC
  • Switching principle
    Creep circuit element
  • Thermal test current
    10 A
  • Utilisation category AC-15
    8 A
  • Rated impulse withstand voltage Uimp
    2.5 kV
  • Ambient temperature, minimum
    -25 °C
  • Degree of protection
    IP67 to EN 60529
  • Rated insulation voltage Ui
    400 V
  • Height of sensor
    152 mm
  • Width of sensor
    50 mm
  • Length of sensor
    43 mm
  • Cable section, maximum
    2.5 mm²
  • Cable section, minimum
    0.5 mm²
  • Terminal Connector
    Screw connection
  • Positive break force, minimum
    5 N
  • Note (Positive break force)
    per NC
  • Number of safety contacts
    2
  • positive break travel
    11 mm
  • Mechanical life, minimum
    1,000,000 Operations
  • Number of auxiliary contacts
    1
  • Enclosure coating material
    painted
  • Standards
    EN 60947-5-1, EN ISO 14119, BG-GS-ET-15
  • Enclosure material
    Aluminium
  • Switching element
    NO contact, NC contact
  • Ambient temperature, maximum
    +70 °C
  • Note (Cable section)
    All indications about the cable section are including the conductor ferrules.
  • Material of the contacts, electrical
    Silver
  • Gross weight
    400 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
