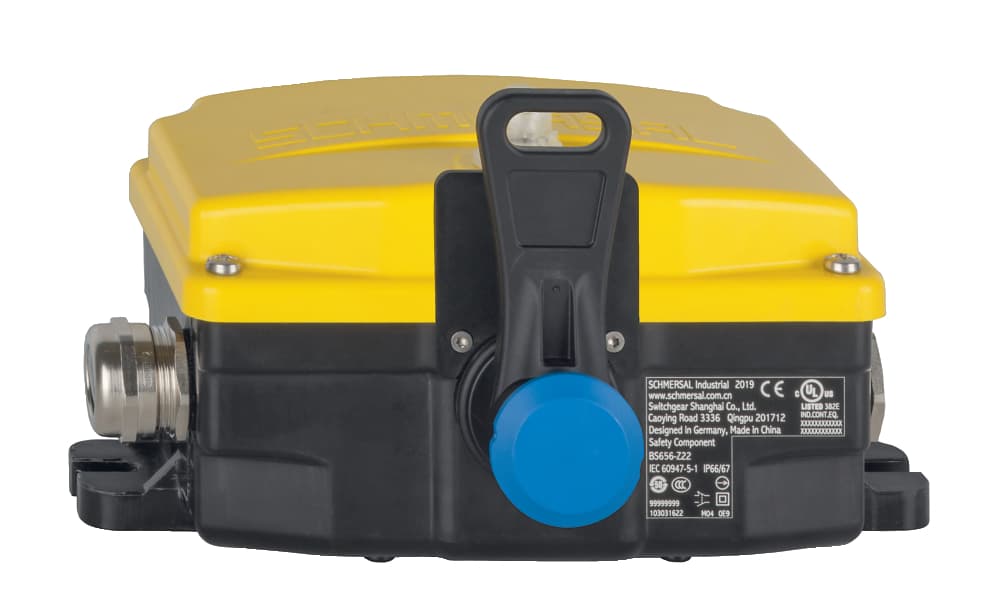

RS656-Z22-G230 Schmersal Safety Switches
Part#:RS656-Z22-G230
Alt. Part#:153031617
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
RS656-Z22-G230 Schmersal - Pull-wire emergency stop switches; Protection class IP66, IP67; Thermoplastic enclosure; wire pull and breakage detection; Central connection terminal; Mechanical switching position indication; two-side operation / wire up to 2 x 100 m
Product Details
- Utilisation category AC-15 3 A
- Utilisation category DC-13 3 A
- Thermal test current 6 A
- Degree of pollution to IEC/EN 60947-1 3
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Switching principle Snap switch element
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 300 V
- Ambient temperature, maximum +70 °C
- Cable section, minimum 0.5 mm², flexible
- Protection rating II
- Cable section, maximum 2.5 mm², flexible
- Ambient temperature, minimum -40 °C
- Cable entry 2 x M25 x 1.5
- Actuation direction Each time 75° right-hand side and left-hand side rotation
- Number of auxiliary contacts 2
- Indicator lamp Yes
- Number of safety contacts 2
- Terminal Connector Spring pulley connection
- Enclosure material thermosetting resin
- Actuating element Roller lever N300
- Mechanical life, minimum 100,000 Operations
- Material of the contacts, electrical Silver
- Length of the wire, maximum 100 m
- Material of the cover thermosetting resin
- Standards IEC 60947-5-1, IEC 60947-5-5, ISO 13850
- Gross weight 2,725 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RS656-Z22-G230 on Advantage Electric Supply is $850.00. Order now.
