RDRZ45GB Schmersal Pushbuttons
Part#:RDRZ45GB
Alt. Part#:101195098
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description

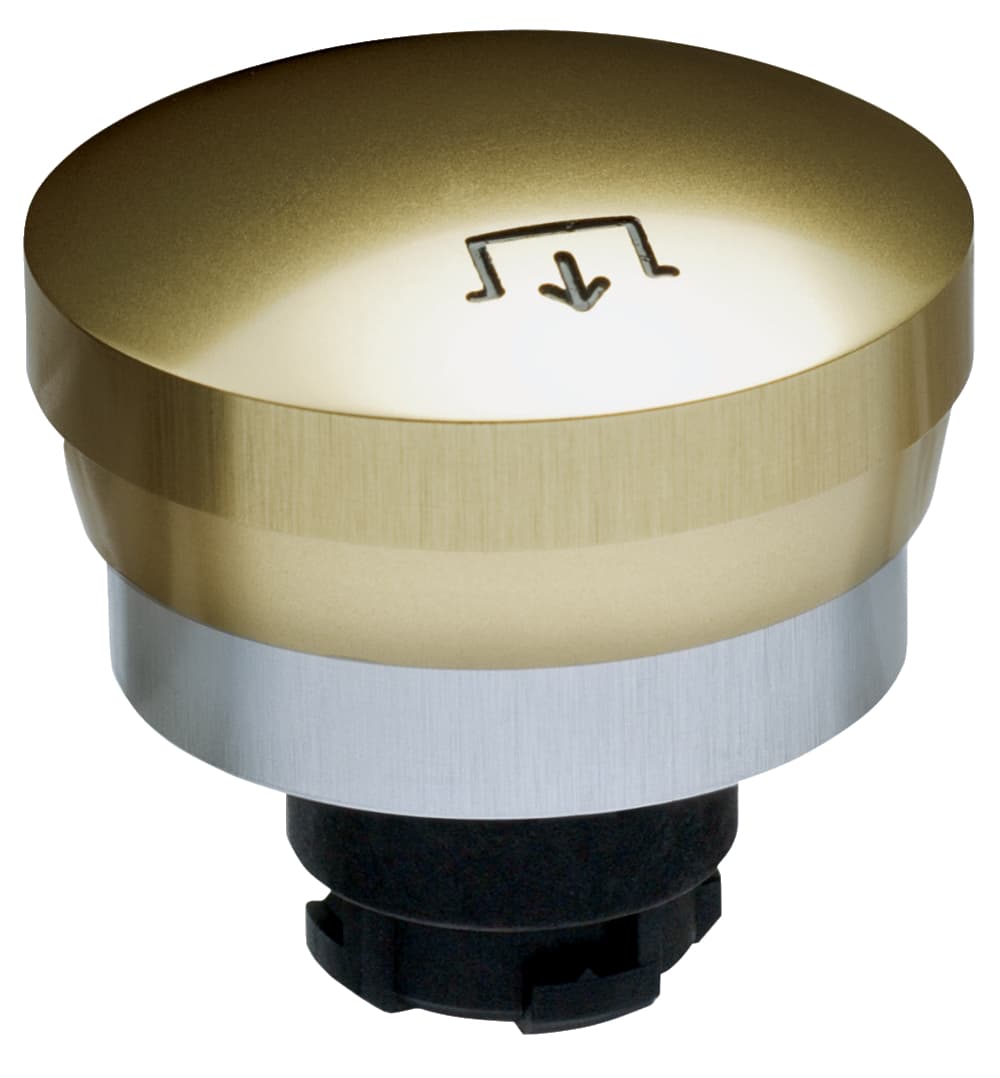

RDRZ45GB Schmersal - Mushroom Button with latching
Product Details
- Ambient temperature, maximum +75 °C
- Spacing 50 x 60 mm
- Ambient temperature, minimum -25 °C
- Restistance to shock 50 g
- Degree of protection IP65
- Thickness, of the front panel, minimum 1 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Thickness of the front panel, maximum 6 mm
- Diameter hole 22.3 mm
- Diameter total 45 mm
- Height 27.5 mm
- Mounting Mounting flange EFM
- diameters for the actuating heads 45 mm
- Tightening torque of the screw 0.6 Nm
- Actuating stroke 4 mm
- Unlocking Draw unlocking
- Snap-action mechanism integrated Yes
- Mechanical life, minimum 100,000 Operations
- Latching Yes
- Fully insulated Yes
- Colour of the operating element Yellow
- Material of the front ring Aluminium
- Mounting flange Yes
- Colour of the front ring Silver
- Design Round
- Material of the operators Aluminium powder-coated
- Versions Latched pushbutton - Front plate mounting
- Installation conditions (mechanical) arbitrarily
- Gross weight 70 g
- Sealing type Membrane, Lip gaskets, Form seals
- Standards EN ISO 13850, IEC/EN 60947-5-5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RDRZ45GB on Advantage Electric Supply is $112.00. Order now.
