RDP40SW Schmersal Pushbuttons
Part#:RDP40SW
Alt. Part#:101188289
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description

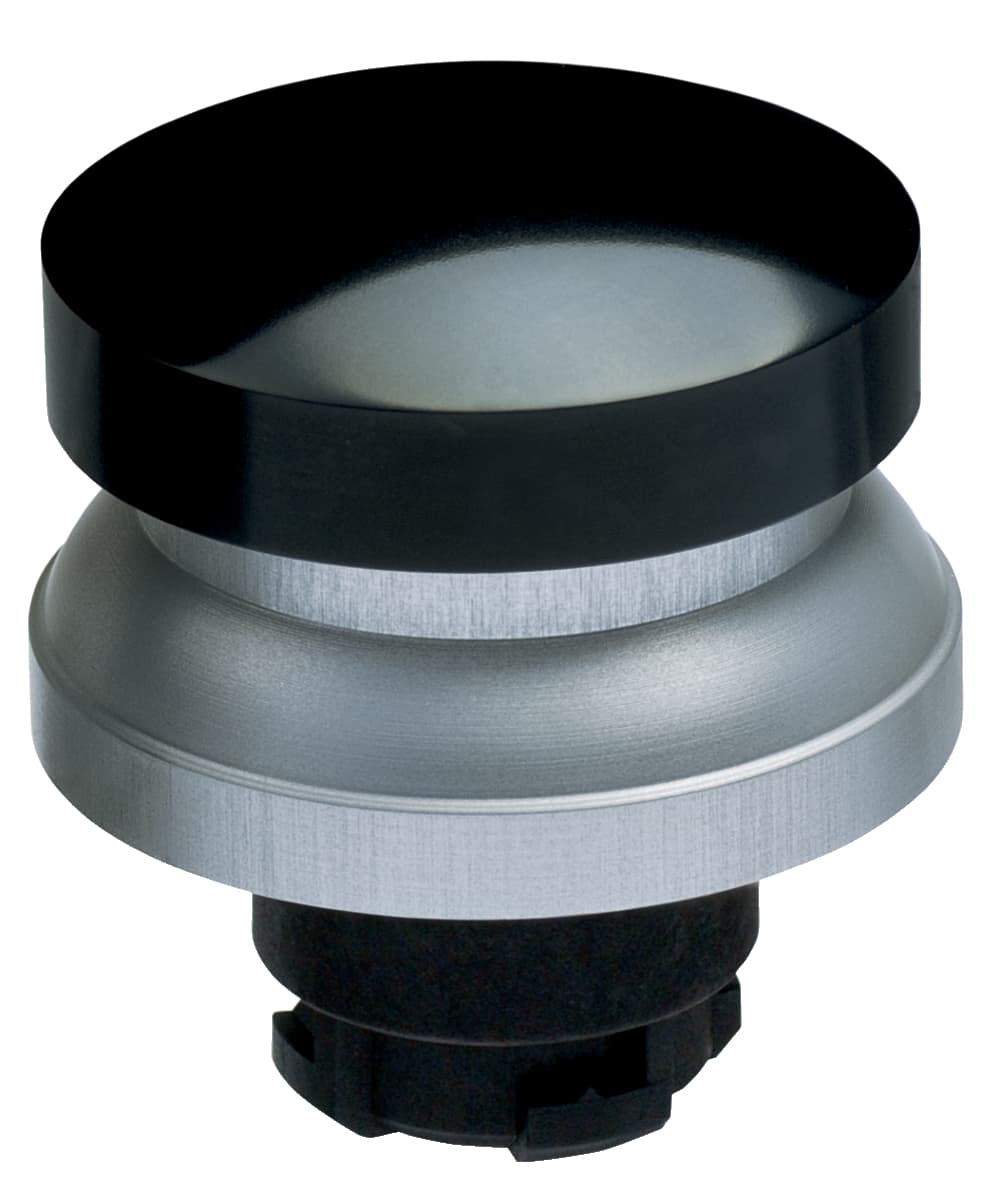

RDP40SW Schmersal - Mushroom Button
Product Details
- Switching frequency 1,200 /h
- Ambient temperature, maximum +75 °C
- Restistance to shock 50 g
- Ambient temperature, minimum -25 °C
- Thickness of the front panel, maximum 6 mm
- Degree of protection IP65
- Spacing 40 x 50 mm
- Thickness, of the front panel, minimum 1 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- diameters for the actuating heads 37 mm
- Diameter hole 22.3 mm
- Diameter of the front ring 39.5 mm
- Diameter total 39.5 mm
- Height 37.5 mm
- Tightening torque of the screw 0.6 Nm
- Mechanical life, minimum 1,000,000 Operations
- Mounting Mounting flange EFM
- Actuating force, approx. 2 N
- Unlocking without
- Actuating stroke 4 mm
- Design Round
- Fully insulated Yes
- Material of the operators Aluminium
- Probing possible Yes
- Standards EN 60947-5-1, IEC/EN 60947-1
- Installation conditions (mechanical) arbitrarily
- Versions Latched pushbutton - Front plate mounting
- Material of the front ring Aluminium
- Gross weight 50 g
- Sealing type Membrane, Lip gaskets, Form seals
- Mounting flange Yes
- Colour of the front ring Silver
- Colour of the operating element Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RDP40SW on Advantage Electric Supply is $71.00. Order now.
