PS226-Z12-K240 Schmersal Safety Switches
Part#:PS226-Z12-K240
Alt. Part#:103015062
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS226-Z12-K240 Schmersal - Position switch; PS226; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 2 x M20 x 1,5; Design to EN 50047
Product Details
- Thermal test current 5 A
- Rated impulse withstand voltage Uimp 4 kV
- Ambient temperature, minimum -30 °C
- Cable section, maximum 1.5 mm²
- Switching principle Snap switch element
- Switching element 1 NO contact, 2 NC contacts
- Utilisation category DC-13 3 A
- Switching frequency 5,000 /h
- Utilisation category AC-15 3 A
- Required rated short-circuit current to EN 60947-5-1 400 A
- Ambient temperature, maximum +80 °C
- Rated insulation voltage Ui 300 V
- Degree of protection IP66, IP67
- Width of sensor 59 mm
- Height of sensor 107 mm
- Length of sensor 33 mm
- Actuating speed, minimum 10 mm/min
- Terminal Connector Screw connection
- Positive break force, minimum 40 N
- Cable section, minimum 0.34 mm²
- Standards IEC 60947-5-1
- Actuating speed, maximum 1 m/s
- Number of safety contacts 2
- Mechanical life, minimum 10,000,000 Operations

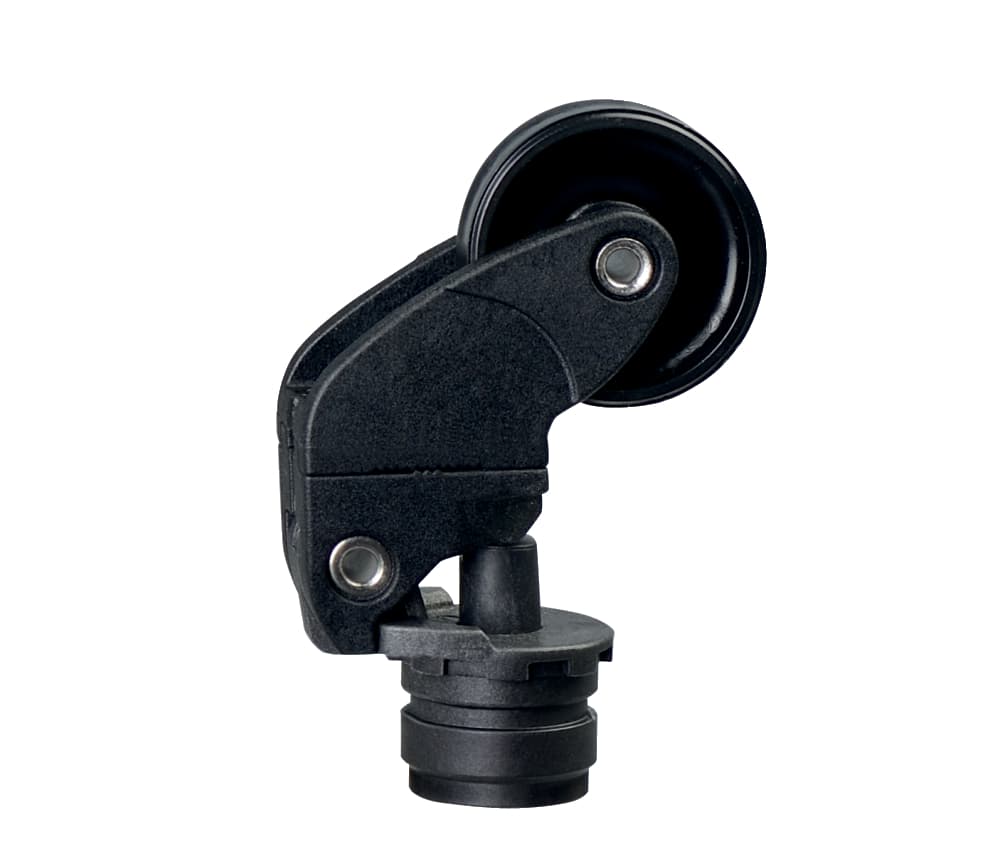

- Actuating element Angle roller lever K240
- Housing construction form Norm construction design
- Safety functions Yes
- Gross weight 89.8 g
- Enclosure material Plastic, glass-fibre-reinforced
- Number of auxiliary contacts 1
- Material of the contacts, electrical Silver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
