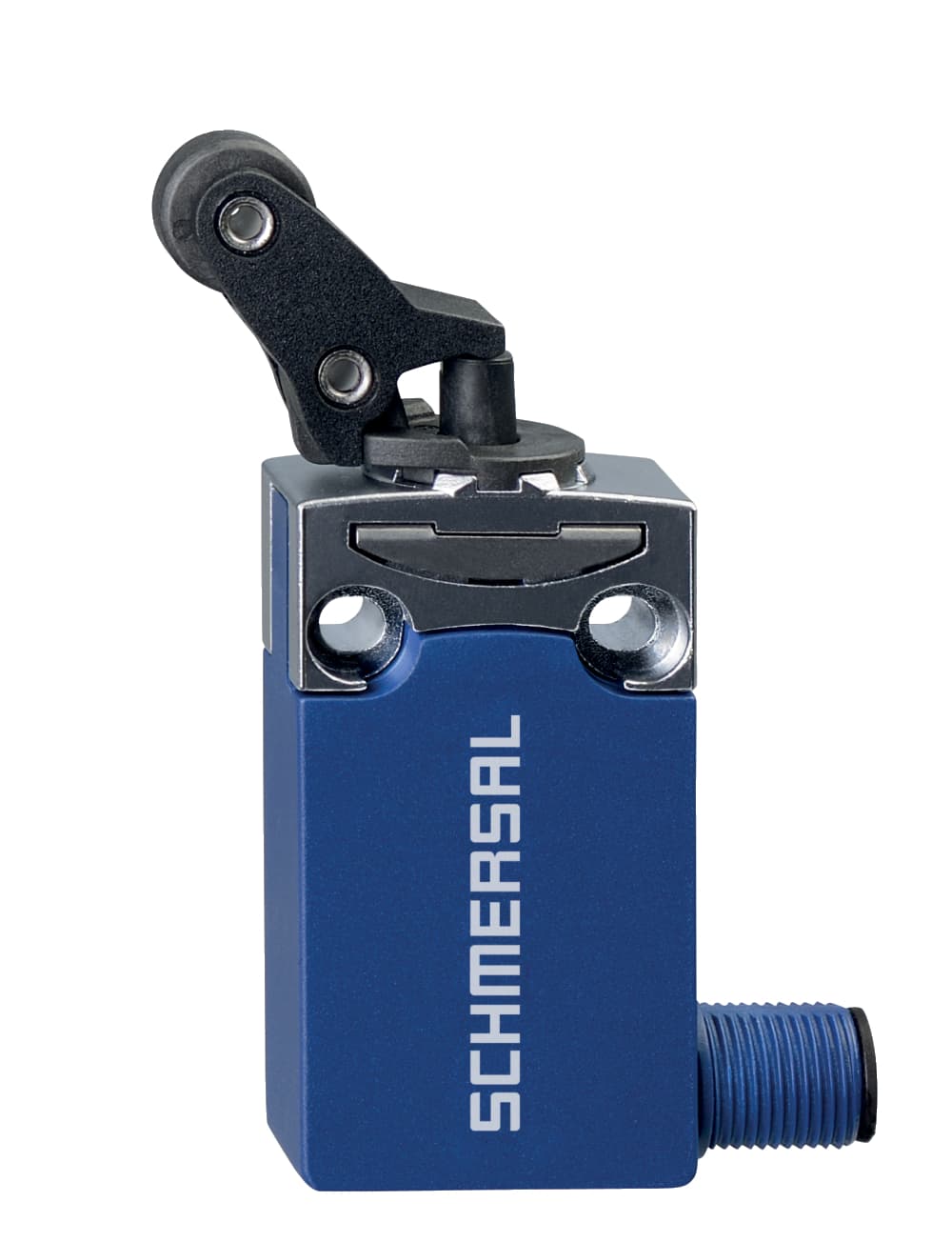

PS116-Z11-STR-K230 Schmersal Safety Switches

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Thermal test current4 A

Switching principleSelf-cleaning pressure conta...

Switchover time, maximum-

Utilisation category DC-13200 VDC

Switching elementOpener (NC)

Utilisation category AC-15230 VAC

Bounce duration, maximum-

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp-

Diameter of Castor-

Degree of protectionIP20 to DIN VDE 0470-1, IP20...

Width of sensor-

Terminal ConnectorScrew terminals M 3

Rated insulation voltage Ui500 V

Ambient temperature, minimum-30 °C

Height of sensor-

Length of sensor-

Positive break force, minimum-

Actuating torque, minimum-

Positive break torque-

Actuating speed, maximum-

Actuating force, minimum-

Actuating speed, minimum-

Mechanical life, minimum1,000,000 Operations

Terminal (mechanical)-

Safety functions-

Number of safety contacts1

Housing construction form-

Enclosure materialPlastic, glass-fibre reinfor...

Actuating element-

Number of auxiliary contacts-

Material of the contacts, electricalSilver-plated Cu rivets

StandardsEN 81

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum2.5 mm²

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Gross weight27 g

Depth21.5 mm

Height27 mm

Width73.5 mm

Note (Cable section)All indications about the ca...

Cable section, minimum0.75 mm²

Cable entrySingle conductor version wit...

MountingEnclosure with mounting slot...

Actuating stroke5 mm

Suitable for elevatorsYes

Actuating panels1

Actuating force, approx.2 N

Switching frequency5,000 /h

Required rated short-circuit current to EN 60947-5-1400 A

Thermal test current2.5 A

Switching principleSnap switch element

Switchover time, maximum5.5 ms

Utilisation category DC-131.5 A

Switching elementNO contact, NC contact

Utilisation category AC-151.5 A

Bounce duration, maximum3 ms

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp2.5 kV

Diameter of Castor14 mm

Degree of protectionIP66, IP67

Width of sensor31 mm

Terminal ConnectorConnector M12, 4-pole

Rated insulation voltage Ui300 V

Ambient temperature, minimum-30 °C

Height of sensor82 mm

Length of sensor16.6 mm

Positive break force, minimum40 N

Actuating torque, minimum0.2 Nm

Positive break torque0.6 Nm

Actuating speed, maximum1 m/s

Actuating force, minimum9.5 N

Actuating speed, minimum27 mm/min

Mechanical life, minimum10,000,000 Operations

Terminal (mechanical)right

Safety functionsYes

Number of safety contacts1

Housing construction formNorm construction design

Enclosure materialPlastic, glass-fibre reinfor...

Actuating elementAngle roller lever K230

Number of auxiliary contacts1

Material of the contacts, electricalSilver

StandardsIEC 60947-5-1

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum-

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Gross weight-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, minimum-

Cable entry-

Mounting-

Actuating stroke-

Suitable for elevators-

Actuating panels-

Actuating force, approx.-

Switching frequency10,000 /h

Required rated short-circuit current to EN 60947-5-1-

Thermal test current10 A

Switching principleSnap action

Switchover time, maximum5 ms

Utilisation category DC-136 A

Switching element-

Utilisation category AC-152.5 A

Bounce duration, maximum3 ms

Ambient temperature, maximum+85 °C

Rated impulse withstand voltage Uimp4 kV

Diameter of Castor-

Degree of protectionIP40

Width of sensor-

Terminal Connector-

Rated insulation voltage Ui250 V

Ambient temperature, minimum-30 °C

Height of sensor-

Length of sensor-

Positive break force, minimum-

Actuating torque, minimum-

Positive break torque-

Actuating speed, maximum-

Actuating force, minimum-

Actuating speed, minimum1 mm/min

Mechanical life, minimum1,000,000 Operations

Terminal (mechanical)Screw connection

Safety functions-

Number of safety contacts-

Housing construction form-

Enclosure materialGlass-fibre, reinforced ther...

Actuating element-

Number of auxiliary contacts-

Material of the contacts, electricalGold-plated silver

StandardsIEC/EN 60947-5-1

Degree of pollution to VDE 01003

Degree of protection of clips or terminalsIP00 (without connector)

Cable section, maximum2 x 1.5 mm²

Repeat accuracy of switching points0.02

Actuating speed1 mm/min

Number of openers1

Number of shutters1

Contact opening> 2 x 1.25 mm

Actuating force12 N

Material of the actuatorThermoplastic

Gross weight45 g

Depth-

Height-

Width-

Note (Cable section)-

Cable section, minimum-

Cable entry-

Mounting-

Actuating stroke-

Suitable for elevators-

Actuating panels-

Actuating force, approx.-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Thermal test current4 A

Switching principleSelf-cleaning pressure conta...

Switchover time, maximum-

Utilisation category DC-13200 VDC

Switching elementOpener (NC)

Utilisation category AC-15230 VAC

Bounce duration, maximum-

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp-

Diameter of Castor-

Degree of protectionIP20 to DIN VDE 0470-1, IP20...

Width of sensor-

Terminal ConnectorScrew terminals M 3

Rated insulation voltage Ui500 V

Ambient temperature, minimum-30 °C

Height of sensor-

Length of sensor-

Positive break force, minimum-

Actuating torque, minimum-

Positive break torque-

Actuating speed, maximum-

Actuating force, minimum-

Actuating speed, minimum-

Mechanical life, minimum1,000,000 Operations

Terminal (mechanical)-

Safety functions-

Number of safety contacts1

Housing construction form-

Enclosure materialPlastic, glass-fibre reinfor...

Actuating element-

Number of auxiliary contacts-

Material of the contacts, electricalSilver-plated Cu rivets

StandardsEN 81

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum2.5 mm²

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Gross weight27 g

Depth21.5 mm

Height27 mm

Width73.5 mm

Note (Cable section)All indications about the ca...

Cable section, minimum0.75 mm²

Cable entrySingle conductor version wit...

MountingEnclosure with mounting slot...

Actuating stroke5 mm

Suitable for elevatorsYes

Actuating panels1

Actuating force, approx.2 N

Switching frequency5,000 /h

Required rated short-circuit current to EN 60947-5-1400 A

Thermal test current2.5 A

Switching principleSnap switch element

Switchover time, maximum5.5 ms

Utilisation category DC-131.5 A

Switching elementNO contact, NC contact

Utilisation category AC-151.5 A

Bounce duration, maximum3 ms

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp2.5 kV

Diameter of Castor14 mm

Degree of protectionIP66, IP67

Width of sensor31 mm

Terminal ConnectorConnector M12, 4-pole

Rated insulation voltage Ui300 V

Ambient temperature, minimum-30 °C

Height of sensor82 mm

Length of sensor16.6 mm

Positive break force, minimum40 N

Actuating torque, minimum0.2 Nm

Positive break torque0.6 Nm

Actuating speed, maximum1 m/s

Actuating force, minimum9.5 N

Actuating speed, minimum27 mm/min

Mechanical life, minimum10,000,000 Operations

Terminal (mechanical)right

Safety functionsYes

Number of safety contacts1

Housing construction formNorm construction design

Enclosure materialPlastic, glass-fibre reinfor...

Actuating elementAngle roller lever K230

Number of auxiliary contacts1

Material of the contacts, electricalSilver

StandardsIEC 60947-5-1

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum-

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Gross weight-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, minimum-

Cable entry-

Mounting-

Actuating stroke-

Suitable for elevators-

Actuating panels-

Actuating force, approx.-
