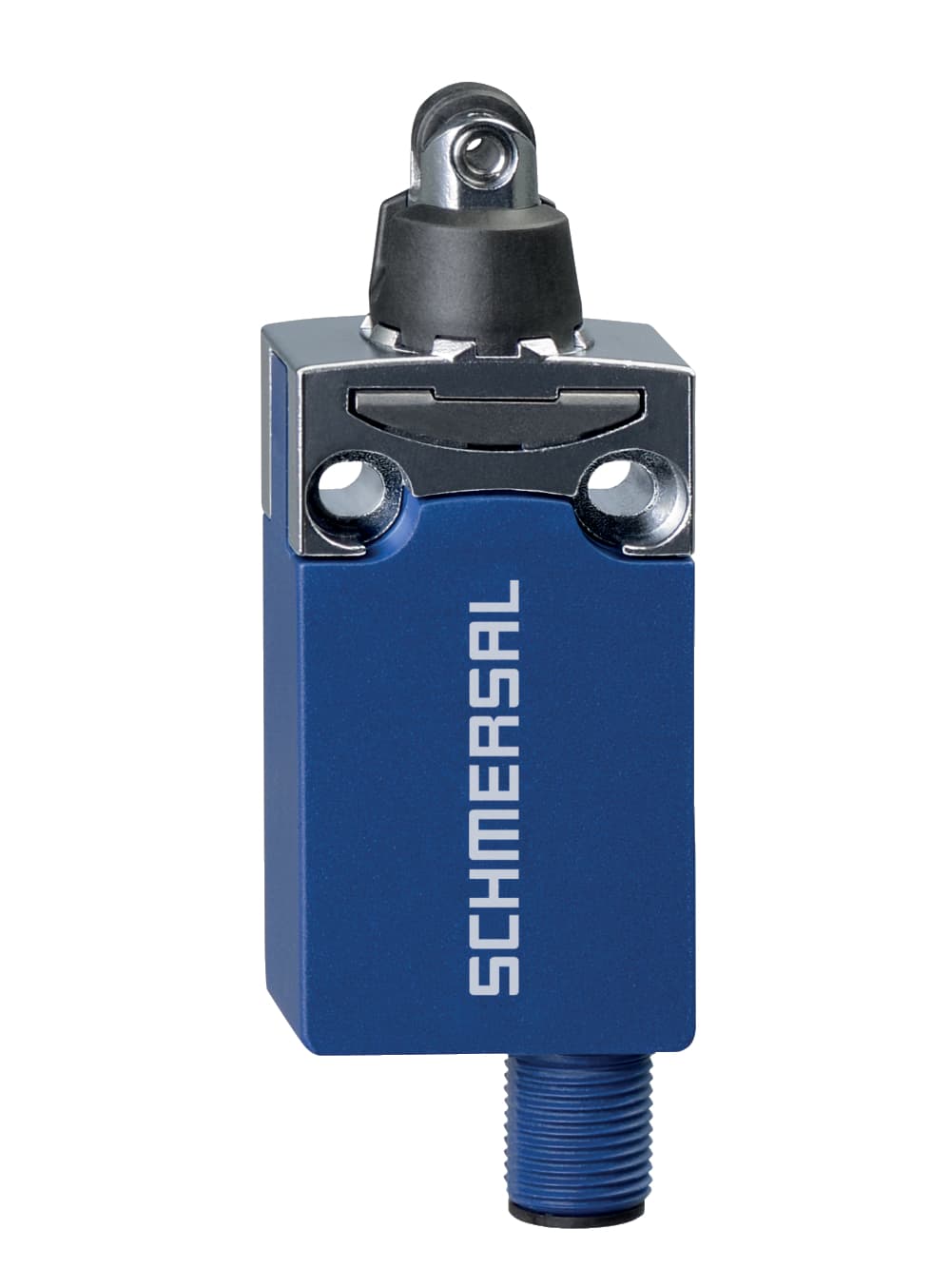

PS116-Z02-ST-R200 Schmersal Safety Switches

Switchover time, maximum-

Switching frequency-

Bounce duration, maximum-

Switching principleSelf-cleaning pressure conta...

Utilisation category AC-15230 VAC

Switching elementOpener (NC)

Utilisation category DC-13200 VDC

Required rated short-circuit current to EN 60947-5-1-

Thermal test current4 A

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp-

Rated insulation voltage Ui500 V

Diameter of Castor-

Degree of protectionIP20 to DIN VDE 0470-1, IP20...

Width of sensor-

Terminal ConnectorScrew terminals M 3

Actuating speed, minimum-

Length of sensor-

Actuating speed, maximum-

Height of sensor-

Actuating element-

Actuating force, minimum-

Positive break force, minimum-

Enclosure materialPlastic, glass-fibre reinfor...

Mechanical life, minimum1,000,000 Operations

Material of the contacts, electricalSilver-plated Cu rivets

Actuator type to DIN EN 50047-

Gross weight27 g

Housing construction form-

Number of safety contacts1

Safety functions-

StandardsEN 81

Terminal (mechanical)-

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum2.5 mm²

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Depth21.5 mm

Height27 mm

Width73.5 mm

Note (Cable section)All indications about the ca...

Cable section, minimum0.75 mm²

Cable entrySingle conductor version wit...

MountingEnclosure with mounting slot...

Actuating stroke5 mm

Suitable for elevatorsYes

Actuating panels1

Actuating force, approx.2 N

Switchover time, maximum5.5 ms

Switching frequency5,000 /h

Bounce duration, maximum3 ms

Switching principleSnap switch element

Utilisation category AC-15240 VAC

Switching elementNO contact, NC contact

Utilisation category DC-1324 VDC

Required rated short-circuit current to EN 60947-5-11,000 A

Thermal test current2 A

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp0.8 kV

Rated insulation voltage Ui30 V

Diameter of Castor9.5 mm

Degree of protectionIP66, IP67

Width of sensor31 mm

Terminal ConnectorConnector M12, 6-pole

Actuating speed, minimum20 mm/min

Length of sensor16.6 mm

Actuating speed, maximum0.5 m/s

Height of sensor74.1 mm

Actuating elementRoller plunger R200

Actuating force, minimum10 N

Positive break force, minimum40 N

Enclosure materialPlastic, glass-fibre reinfor...

Mechanical life, minimum10,000,000 Operations

Material of the contacts, electricalSilver

Actuator type to DIN EN 50047c

Gross weight76 g

Housing construction formNorm construction design

Number of safety contacts2

Safety functionsYes

StandardsIEC 60947-5-1

Terminal (mechanical)bottom

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum-

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, minimum-

Cable entry-

Mounting-

Actuating stroke-

Suitable for elevators-

Actuating panels-

Actuating force, approx.-

Switchover time, maximum5 ms

Switching frequency10,000 /h

Bounce duration, maximum3 ms

Switching principleSnap action

Utilisation category AC-152.5 A

Switching element-

Utilisation category DC-136 A

Required rated short-circuit current to EN 60947-5-1-

Thermal test current10 A

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+85 °C

Rated impulse withstand voltage Uimp4 kV

Rated insulation voltage Ui250 V

Diameter of Castor-

Degree of protectionIP40

Width of sensor-

Terminal Connector-

Actuating speed, minimum1 mm/min

Length of sensor-

Actuating speed, maximum-

Height of sensor-

Actuating element-

Actuating force, minimum-

Positive break force, minimum-

Enclosure materialGlass-fibre, reinforced ther...

Mechanical life, minimum1,000,000 Operations

Material of the contacts, electricalGold-plated silver

Actuator type to DIN EN 50047-

Gross weight45 g

Housing construction form-

Number of safety contacts-

Safety functions-

StandardsIEC/EN 60947-5-1

Terminal (mechanical)Screw connection

Degree of pollution to VDE 01003

Degree of protection of clips or terminalsIP00 (without connector)

Cable section, maximum2 x 1.5 mm²

Repeat accuracy of switching points0.02

Actuating speed1 mm/min

Number of openers1

Number of shutters1

Contact opening> 2 x 1.25 mm

Actuating force12 N

Material of the actuatorThermoplastic

Depth-

Height-

Width-

Note (Cable section)-

Cable section, minimum-

Cable entry-

Mounting-

Actuating stroke-

Suitable for elevators-

Actuating panels-

Actuating force, approx.-

Switchover time, maximum-

Switching frequency-

Bounce duration, maximum-

Switching principleSelf-cleaning pressure conta...

Utilisation category AC-15230 VAC

Switching elementOpener (NC)

Utilisation category DC-13200 VDC

Required rated short-circuit current to EN 60947-5-1-

Thermal test current4 A

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp-

Rated insulation voltage Ui500 V

Diameter of Castor-

Degree of protectionIP20 to DIN VDE 0470-1, IP20...

Width of sensor-

Terminal ConnectorScrew terminals M 3

Actuating speed, minimum-

Length of sensor-

Actuating speed, maximum-

Height of sensor-

Actuating element-

Actuating force, minimum-

Positive break force, minimum-

Enclosure materialPlastic, glass-fibre reinfor...

Mechanical life, minimum1,000,000 Operations

Material of the contacts, electricalSilver-plated Cu rivets

Actuator type to DIN EN 50047-

Gross weight27 g

Housing construction form-

Number of safety contacts1

Safety functions-

StandardsEN 81

Terminal (mechanical)-

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum2.5 mm²

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Depth21.5 mm

Height27 mm

Width73.5 mm

Note (Cable section)All indications about the ca...

Cable section, minimum0.75 mm²

Cable entrySingle conductor version wit...

MountingEnclosure with mounting slot...

Actuating stroke5 mm

Suitable for elevatorsYes

Actuating panels1

Actuating force, approx.2 N

Switchover time, maximum5.5 ms

Switching frequency5,000 /h

Bounce duration, maximum3 ms

Switching principleSnap switch element

Utilisation category AC-15240 VAC

Switching elementNO contact, NC contact

Utilisation category DC-1324 VDC

Required rated short-circuit current to EN 60947-5-11,000 A

Thermal test current2 A

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+80 °C

Rated impulse withstand voltage Uimp0.8 kV

Rated insulation voltage Ui30 V

Diameter of Castor9.5 mm

Degree of protectionIP66, IP67

Width of sensor31 mm

Terminal ConnectorConnector M12, 6-pole

Actuating speed, minimum20 mm/min

Length of sensor16.6 mm

Actuating speed, maximum0.5 m/s

Height of sensor74.1 mm

Actuating elementRoller plunger R200

Actuating force, minimum10 N

Positive break force, minimum40 N

Enclosure materialPlastic, glass-fibre reinfor...

Mechanical life, minimum10,000,000 Operations

Material of the contacts, electricalSilver

Actuator type to DIN EN 50047c

Gross weight76 g

Housing construction formNorm construction design

Number of safety contacts2

Safety functionsYes

StandardsIEC 60947-5-1

Terminal (mechanical)bottom

Degree of pollution to VDE 0100-

Degree of protection of clips or terminals-

Cable section, maximum-

Repeat accuracy of switching points-

Actuating speed-

Number of openers-

Number of shutters-

Contact opening-

Actuating force-

Material of the actuator-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, minimum-

Cable entry-

Mounting-

Actuating stroke-

Suitable for elevators-

Actuating panels-

Actuating force, approx.-
