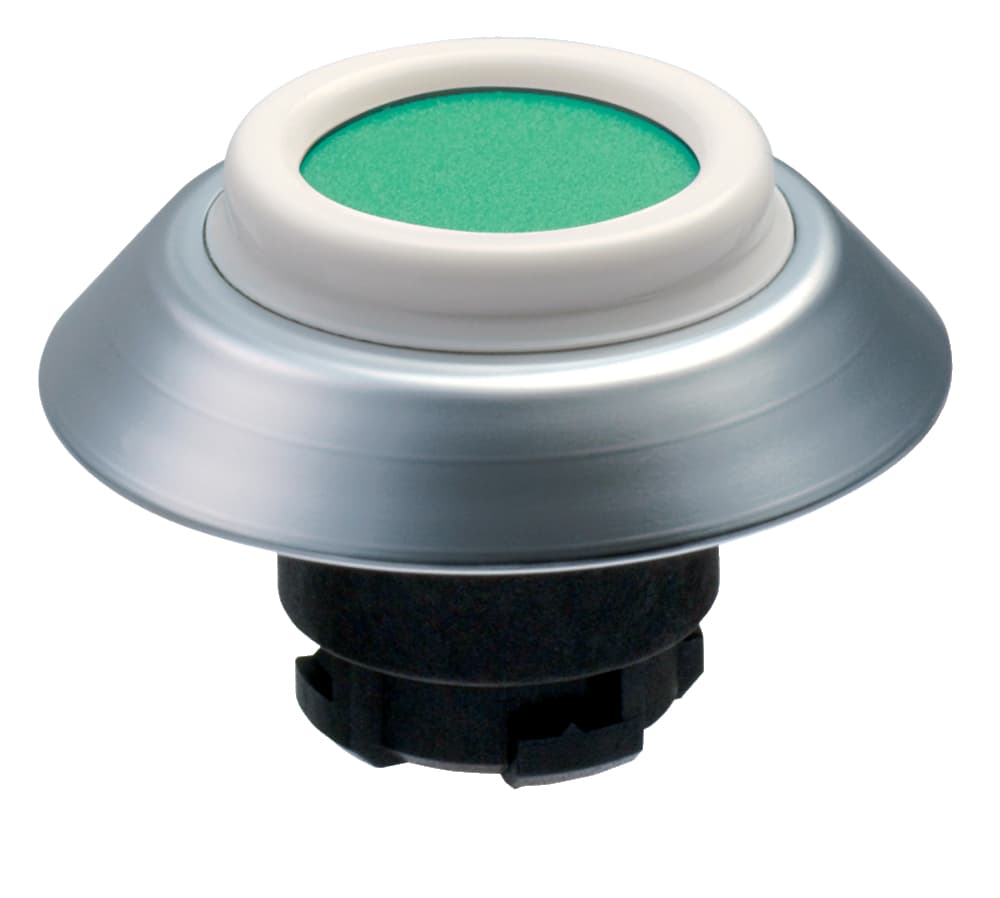

NDTBL/GN Schmersal Pushbuttons

NDTBL/GN on Advantage Electric Supply
Schmersal

Part#:NDTBL/GN

Manufacturer:Schmersal

Category:Pushbuttons

Alt. Part#:103009714

Product Lifecycle:Active

Get a quick Quote!

Command and signalling devices; "N" program

About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.

Check out the NDTBL/GN Schmersal price in the box on the right side or send a quick quote.

Product Details

  • Ambient temperature, minimum
    -25 °C
  • Ambient temperature, maximum
    +80 °C
  • Thickness of the front panel, maximum
    6 mm
  • Degree of protection
    IP67, IP69K
  • Diameter hole, with tolerance indication
    22.3 + 0.4 mm
  • Spacing
    50 x 50 mm
  • Thickness, of the front panel, minimum
    1.5 mm
  • Diameter hole
    22.3 mm
  • diameters for the actuating heads
    44.5 mm
  • Actuating stroke
    5 mm
  • Height
    11 mm
  • Mounting
    Mounting flange EFM
  • Tightening torque of the screw
    0.6 Nm
  • Unlocking
    without
  • Gross weight
    25 g
  • Probing possible
    Yes
  • Fully insulated
    Yes
  • Design
    Round
  • Mounting flange
    Yes
  • Material of the operators
    ABS
  • Sealing type
    Membrane, Lip gaskets
  • Colour of the front ring
    Silver
  • Standards
    EN 60947-5-1, IEC/EN 60947-1
  • Colour of the bellows
    Blue
  • Material of the front ring
    ABS, chrome-plated
  • Colour of the operating element
    Green
  • Versions
    Embeddable button - Front plate mounting

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents NDTBL/GN Specs

NDTBL/GN Datasheet.pdf

Manufacturer warranty

$31.00

This part usually ships in 3-5 days

Select Qty:

$31.00

$31.00 each
