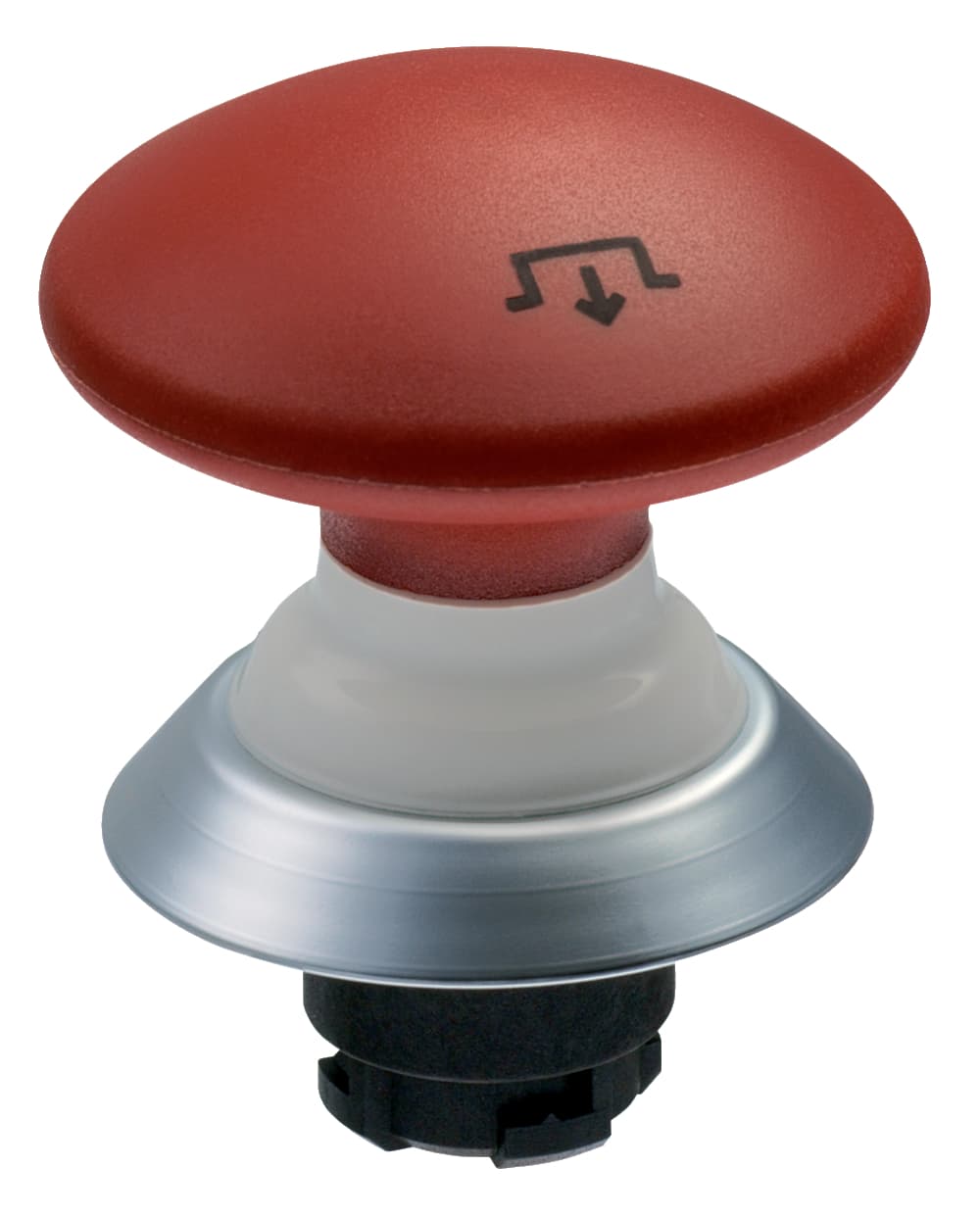

NDRZ50RT-2905-1 Schmersal Electronic Components
Part#:NDRZ50RT-2905-1
Alt. Part#:103011890
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Command and signalling devices; "N" program; with latching
Product Details
- Degree of protection IP67, IP69K
- Restistance to shock 30 g / 18 ms
- Ambient temperature, maximum +80 °C
- Ambient temperature, minimum -25 °C
- Spacing 50 x 50 mm
- diameters for the actuating heads 50 mm
- Thickness of the front panel, maximum 6 mm
- Thickness, of the front panel, minimum 1.5 mm
- Diameter hole 22.3 mm
- Height 45 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Tightening torque of the screw 0.6 Nm
- Mechanical life, minimum 100,000 Operations
- Unlocking Draw unlocking
- Fully insulated Yes
- Latching Yes
- Mounting Mounting flange EFM
- Mounting flange Yes
- Snap-action mechanism integrated Yes
- Safety functions Yes
- Emergency-Stop button Yes
- Gross weight 30 g
- Standards EN 60947-5-1, IEC/EN 60947-1
- Colour of the bellows White
- Colour of the front ring Yellow
- Sealing type Membrane, Lip gaskets
- Material of the operators ABS
- Versions Emergency stop pushbutton with latching - front plate mounting
- Material of the front ring ABS, chrome-plated
- Colour of the operating element Red
- Material of the bellows Silicone
- Design Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDRZ50RT-2905-1 on Advantage Electric Supply is $52.00. Order now.
