NDP50GR/BL Schmersal Pushbuttons

NDP50GR/BL on Advantage Electric Supply
Schmersal

Part#:NDP50GR/BL

Manufacturer:Schmersal

Category:Pushbuttons

Alt. Part#:101163577

Product Lifecycle:Active

Get a quick Quote!

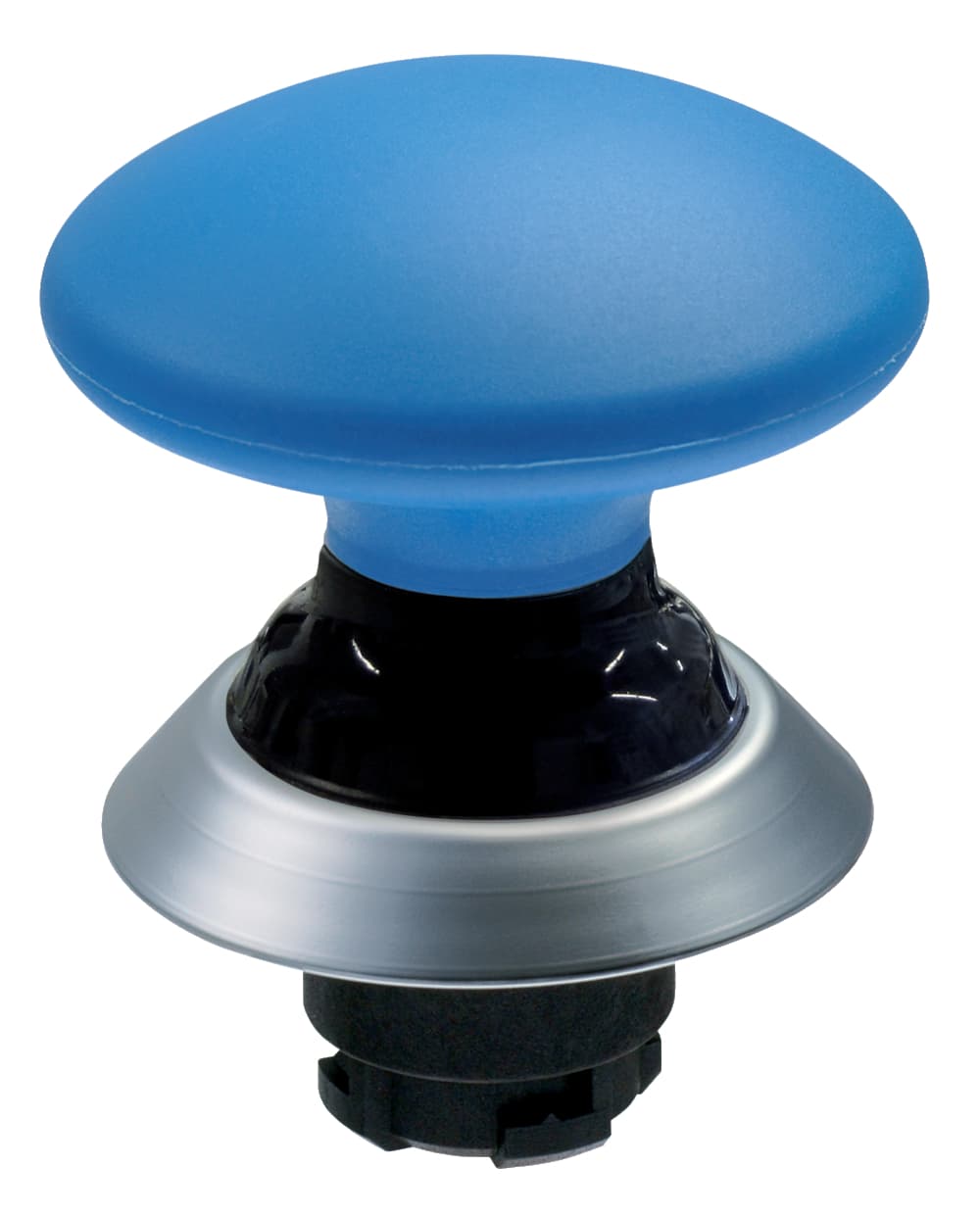

NDP50GR/BL Schmersal - Mushroom Button from N Series (IP69K)

About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.

Check out the NDP50GR/BL Schmersal price in the box on the right side or send a quick quote.

Product Details

  • Degree of protection
    IP67, IP69K
  • Ambient temperature, maximum
    +80 °C
  • Spacing
    50 x 50 mm
  • Thickness of the front panel, maximum
    6 mm
  • Ambient temperature, minimum
    -25 °C
  • Diameter hole, with tolerance indication
    22.3 + 0.4 mm
  • diameters for the actuating heads
    50 mm
  • Thickness, of the front panel, minimum
    1.5 mm
  • Diameter hole
    22.3 mm
  • Height
    45 mm
  • Tightening torque of the screw
    0.6 Nm
  • Mounting
    Mounting flange EFM
  • Mounting flange
    Yes
  • Actuating stroke
    5 mm
  • Fully insulated
    Yes
  • Gross weight
    50 g
  • Colour of the bellows
    Black
  • Material of the front ring
    ABS, chrome-plated
  • Colour of the front ring
    Silver
  • Colour of the operating element
    Blue
  • Material of the bellows
    Silicone
  • Standards
    EN 60947-5-1, IEC/EN 60947-1
  • Design
    Round
  • Versions
    round, Push button
  • Material of the operators
    ABS
  • Sealing type
    Membrane, Lip gaskets

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NDP50GR/BL Description

NDP50GR/BL Schmersal - Mushroom Button from N Series (IP69K)

Related documents NDP50GR/BL Specs

NDP50GR/BL Datasheet.pdf
