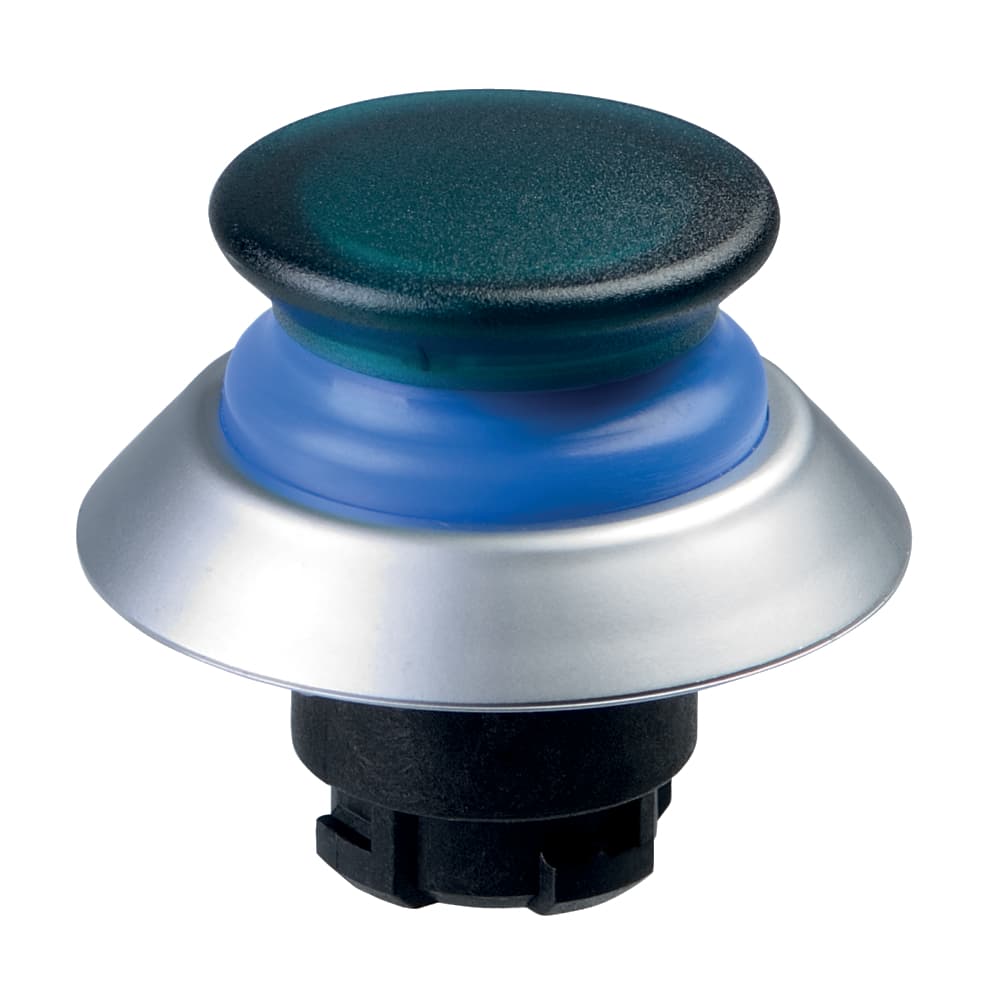

NDLP30BL/GN Schmersal Pushbuttons
Part#:NDLP30BL/GN
Alt. Part#:103009740
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description
Command and signalling devices; "N" program
Product Details
- Ambient temperature, maximum +80 °C
- Ambient temperature, minimum -25 °C
- Degree of protection IP67, IP69K
- Spacing 50 x 50 mm
- Thickness of the front panel, maximum 6 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Diameter hole 22.3 mm
- Thickness, of the front panel, minimum 1.5 mm
- Height 20 mm
- diameters for the actuating heads 30 mm
- Mounting Mounting flange EFM
- Tightening torque of the screw 0.6 Nm
- Actuating stroke 5 mm
- Gross weight 36 g
- Illuminable Yes
- Fully insulated Yes
- Mounting flange Yes
- Probing possible Yes
- Colour of the bellows Blue
- Versions round, Mushroom button
- Colour of the operating element Green
- Colour of the front ring Silver
- Standards EN 60947-5-1, IEC/EN 60947-1
- Design Round
- Sealing type Membrane, Lip gaskets
- Material of the operators Plastic
- Material of the front ring ABS, chrome-plated
- Material of the bellows Silicone
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDLP30BL/GN on Advantage Electric Supply is $53.00. Order now.
