M. 250-11Z-1224 Schmersal Electronic Components

Name: M. 250-11Z-1224
Brand: Schmersal

M. 250-11Z-1224 on Advantage Electric Supply

Part#:M. 250-11Z-1224

Alt. Part#:101057978

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

Position switch; heavy-duty position switches; Metal enclosure; 4 Contacts

Product Details

Voltage, Utilisation category AC15
230 VAC
Current, Utilisation category AC-15
2.5 A
Bounce duration, maximum
5 ms
Switching frequency
3,000 /h
Required rated short-circuit current to EN 60947-5-1
1,000 A
Switchover time, maximum
35 ms
Thermal test current
16 A
Rated insulation voltage Ui
500 V
Switching principle
Snap action
Rated impulse withstand voltage Uimp
6 kV
Number of openers
1
Material temperature resistance (short-term), maximum
+90 °C
Gross weight
4,623 g
Ambient temperature, maximum
+60 °C
Number of shutters
1
Terminal (mechanical)
Screw connection
Material of the contacts, electrical
Gold-plated silver
Enclosure material
Grey cast iron, galvanised
Ambient temperature, minimum
-20 °C
Degree of protection
IP65, IP66, IP67 to EN 60529

Note (Cable section)

All indications about the cable section are including the conductor ferrules.

Contact opening

2 x 2.5 mm

Impact energy, maximum

7 J

Mechanical life, minimum

10,000,000 Operations

Cable section, maximum

2.5 mm²

Enclosure coating material

painted

Cable entry

2 x M25 x 1.5

Actuating speed, maximum

1 m/s

Standards

IEC 60947-5-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M. 250-11Z-1224 Related Documents

Datasheet.pdf

Similar products from: Schmersal Electronic Components

Z 6881-11-1-80R-I

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

3 in stock

Manufacturer warranty

M. 250-11Z-1224 Schmersal

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare M. 250-11Z-1224 with other Electronic Components products

Voltage, Utilisation cate...

Current, Utilisation cate...

Bounce duration, maximum

Switching frequency

Required rated short-circ...

Switchover time, maximum

Thermal test current

Rated insulation voltage ...

Switching principle

Rated impulse withstand v...

Selected product

Backordered

Schmersal

Position switch; heavy-duty position switches; Metal enclosure; 4 Contacts

Voltage, Utilisation category AC15230 VAC

Current, Utilisation category AC-152.5 A

Bounce duration, maximum5 ms

Switching frequency3,000 /h

Required rated short-circuit current to EN 60947-5-11,000 A

Switchover time, maximum35 ms

Thermal test current16 A

Rated insulation voltage Ui500 V

Switching principleSnap action

Rated impulse withstand voltage Uimp6 kV

184 in stock

Weidmuller

Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, dark beige, 20A...

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

200 in stock

Weidmuller

W-Series, Feed-through terminal, Thermocouple, Rated cross-section: 2.5 mm², Screw connection, 8A, W...

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

3 in stock

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

184 in stock

Weidmuller

Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, dark beige, 20A...

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

200 in stock

Weidmuller

W-Series, Feed-through terminal, Thermocouple, Rated cross-section: 2.5 mm², Screw connection, 8A, W...

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

3 in stock

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

184 in stock

Weidmuller

Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, dark beige, 20A...

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

200 in stock

Weidmuller

W-Series, Feed-through terminal, Thermocouple, Rated cross-section: 2.5 mm², Screw connection, 8A, W...

Voltage, Utilisation category AC15-

Current, Utilisation category AC-15-

Bounce duration, maximum-

Switching frequency-

Required rated short-circuit current to EN 60947-5-1-

Switchover time, maximum-

Thermal test current-

Rated insulation voltage Ui-

Switching principle-

Rated impulse withstand voltage Uimp-

About the manufacturer

Advantage Electric Supply is an authorized Schmersal distributor, proudly offering a comprehensive range of industrial safety solutions that ensure the protection and efficiency of your operations. Schmersal is renowned for their extensive portfolio of safety products designed to meet the highest standards of industrial safety protocols. With a long-standing reputation for innovation and quality, ...

Relevant products

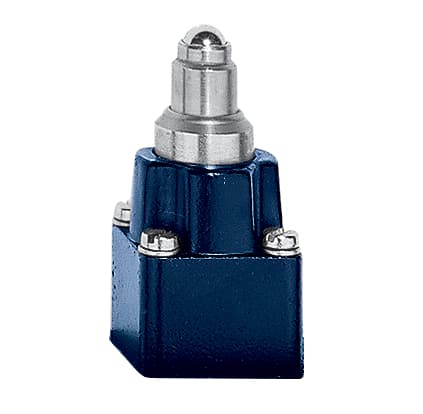

M2S 461-22Y

Verified stock: 0

Position switch; Medium-duty position switches; 2 cable entries M 20 x 1.5; Metal enclosure; 118 mm x 155 mm x 64 mm ( basic component); With large after-travel; Actuator head with captive stainless steel ball actuator

Schmersal

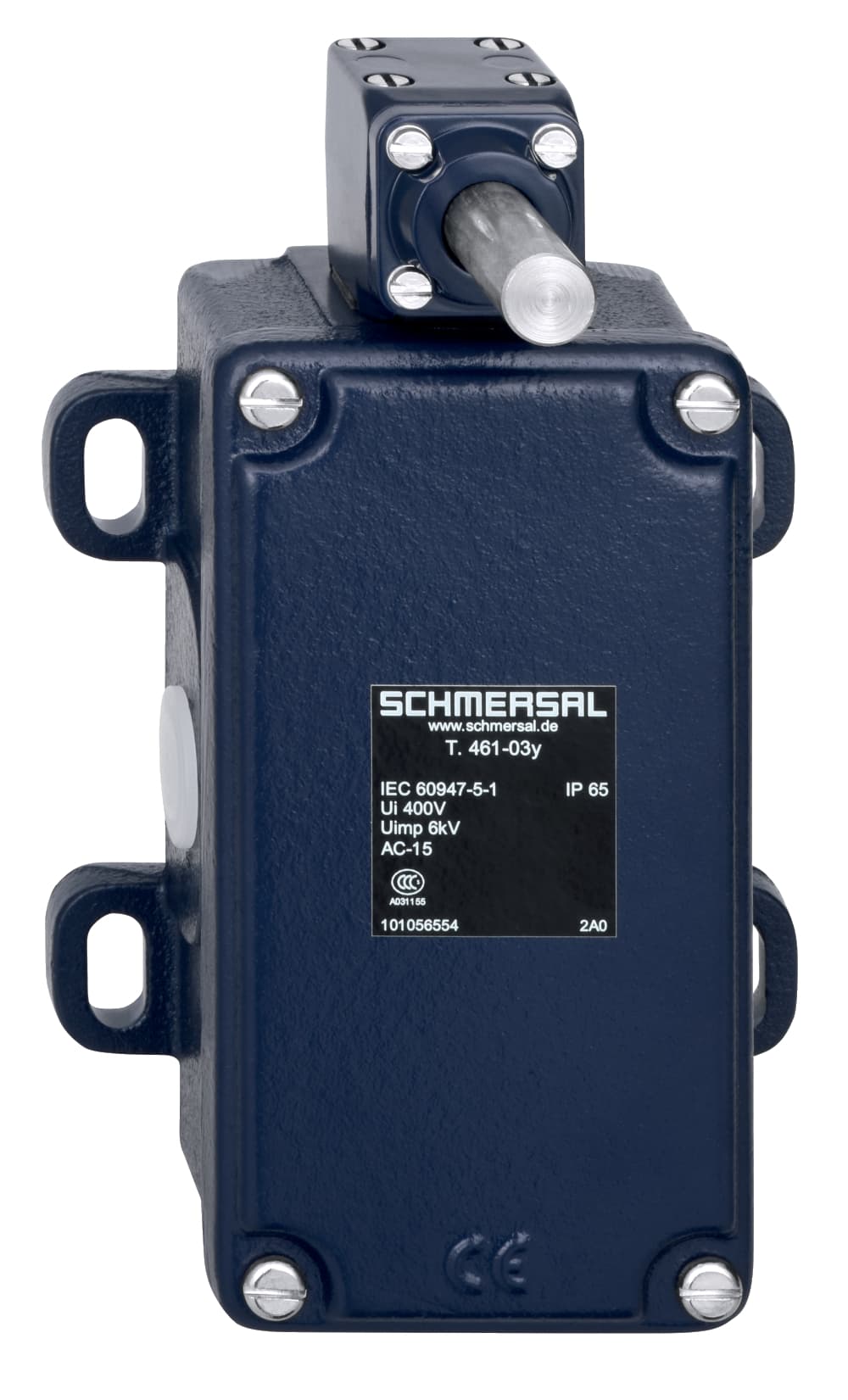

M2C 461-22Y-M20

Verified stock: 0

Position switch; Medium-duty position switches; 2 cable entries M 20 x 1.5; Metal enclosure; 118 mm x 155 mm x 64 mm ( basic component); With latching end position; Actuator heads can be repositioned by 4 x 90°; Change in actuating direction by reposition

Schmersal

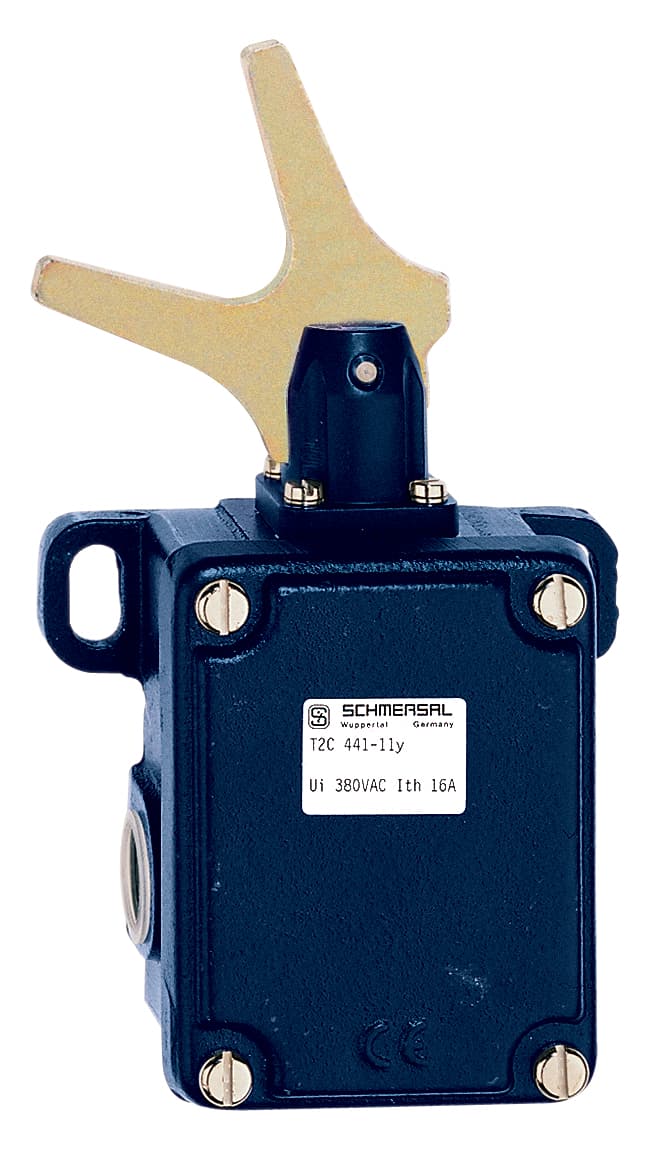

M2C 441-11Y

Verified stock: 0

Position switch; Medium-duty position switches; 2 cable entries M 20 x 1.5; Metal enclosure; With latching end position; Actuator heads can be repositioned by 4 x 90°; Change in actuating direction by repositioning actuator head; 2 Contacts; 106 mm x 99 m

Schmersal

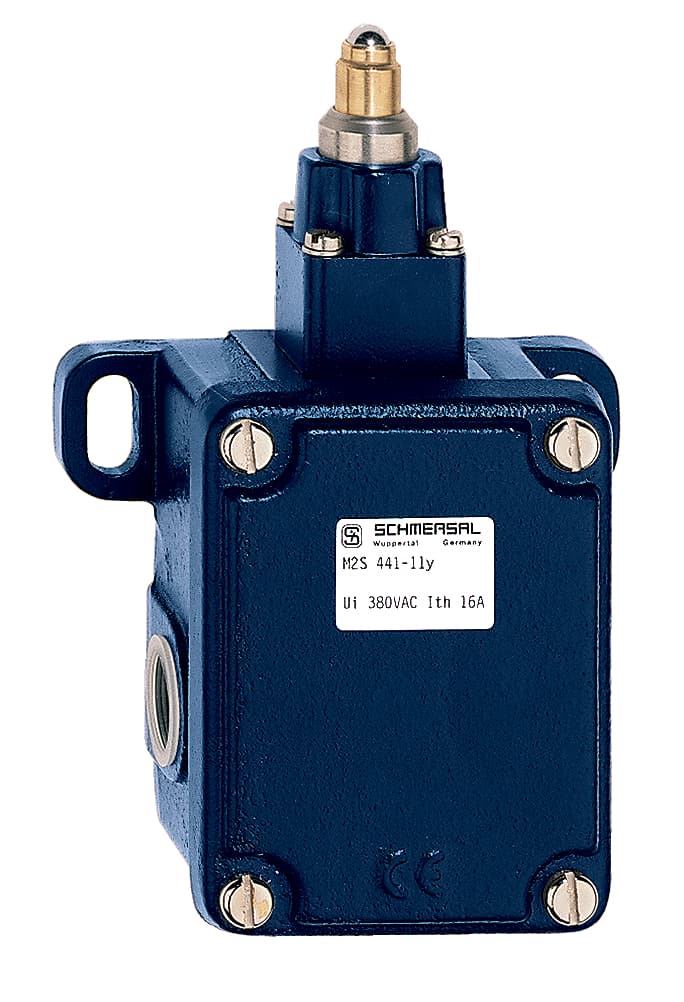

M2S 441-11Y
