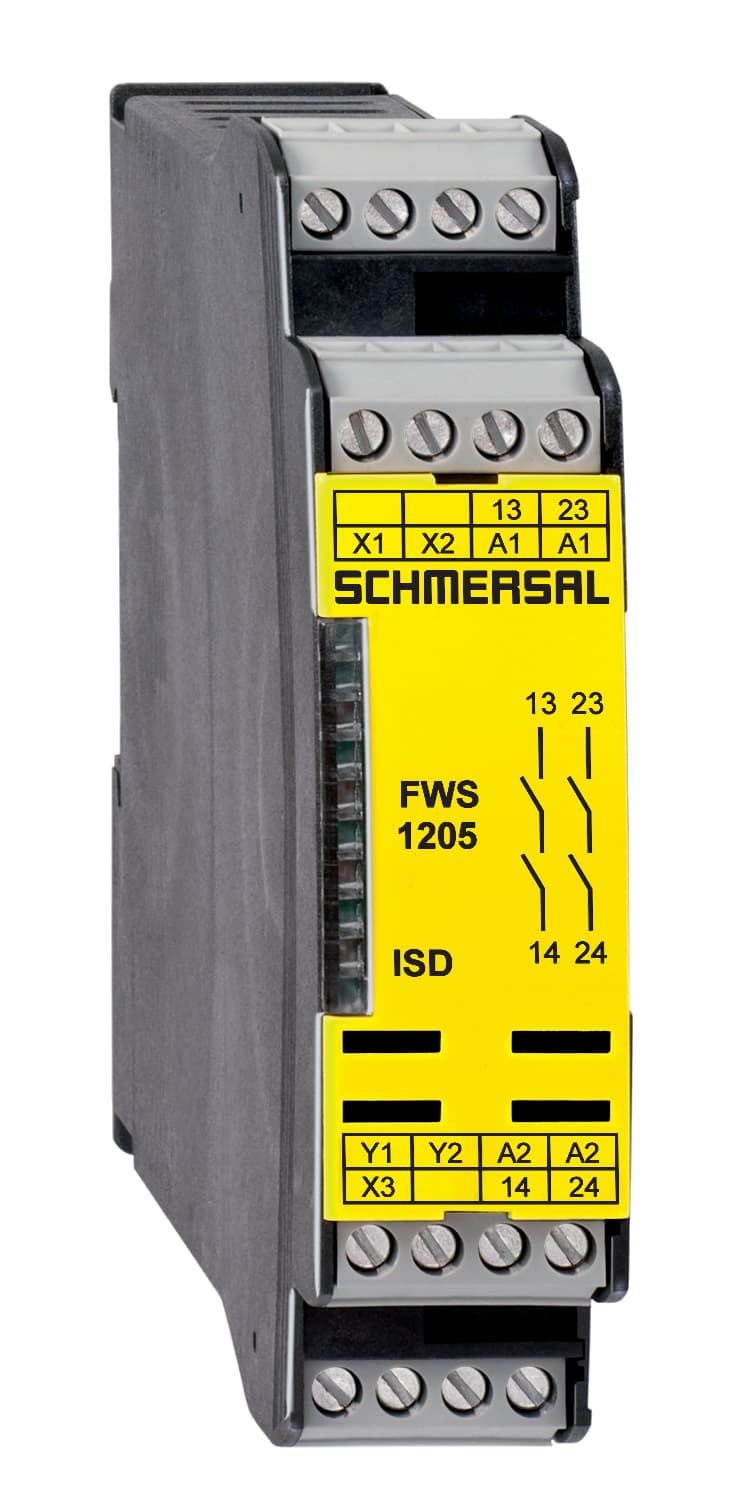

FWS 1205 B Schmersal Electronic Components

Product Details

• Input signal, LOW Signal 0
  0 … 2 VDC
• Conduction resistance, maximum
  40 Ω
• Input signal, HIGH Signal 1
  10 … 30 VDC
• Current, Utilisation category AC-15
  3 A
• Note (Contact resistance)
  in new state
• Rated control voltage at DC, maximum
  28.8 VDC
• Rated control voltage at AC 50 Hz, maximum
  26.4 VAC
• Thermal test current
  6 A
• Rated AC voltage for controls, 50 Hz, minimum
  20.4 VAC
• Overvoltage category
  II
• Storage and transport temperature, maximum
  +70 °C
• Depth
  121 mm
• Height
  100 mm
• Terminal Connector
  Screw connection, rigid or flexible
• Number of undelayed semi-conductor outputs with signaling function
  2
• Reset after disconnection of supply voltage
  Yes
• Enclosure material
  Glass-fibre reinforced thermoplastic, ventilated
• EMC rating
  10 V/m
• Current, Utilisation category DC13
  2 A
• Switching capacity, maximum
  2 A
Switching capacity, minimum
10 mA
Voltage, Utilisation category DC13
24 VDC
Voltage, Utilisation category AC15
230 VAC
Rated AC voltage for controls at DC minimum
20.4 VDC
Electrical power consumption, maximum
5 W
Contact resistance, maximum
0.1 Ω
Rated control voltage at AC 60 Hz, maximum
26.4 VAC
Rated AC voltage for controls, 60 Hz, minimum
20.4 VAC
Rated operating voltage
24 VDC ± 15 %
Degree of pollution to VDE 0110
3
Restistance to shock
30 g / 11 ms
Rated impulse withstand voltage Uimp
4.8 kV
Resistance to vibrations to EN 60068-2-6
10 ... 55 Hz, Amplitude 0.35 mm
Degree of protection of clips or terminals
IP20
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
+0 °C
Ambient temperature, maximum
+55 °C
Degree of protection of the mounting space
IP54
Width
22.5 mm
Cable section, maximum
2.5 mm²
Degree of protection of the enclosure
IP40
Tightening torque of Clips
0.6 Nm
Cable section, minimum
0.2 mm²
Terminal designations
IEC/EN 60947-1
Mounting
Snaps onto standard DIN rail to EN 60715
Mechanical life, minimum
20,000,000 Operations
Number of LEDs
1
Number of signalling outputs
2
Number of safety contacts
2
Integral System Diagnostics, status
Yes
Earth connection detection
Yes
Material of the contacts, electrical
Ag-Ni 10 and 0.2 µm gold-plated
Wire breakage detection
Yes
Automatic reset function
Yes
Stop-Category
0
Standards
IEC/EN 60204-1, BG-GS-ET-20, EN ISO 13849-1
Gross weight
195 g
Climatic stress
EN 60068-2-3, BG-GS-ET-14
