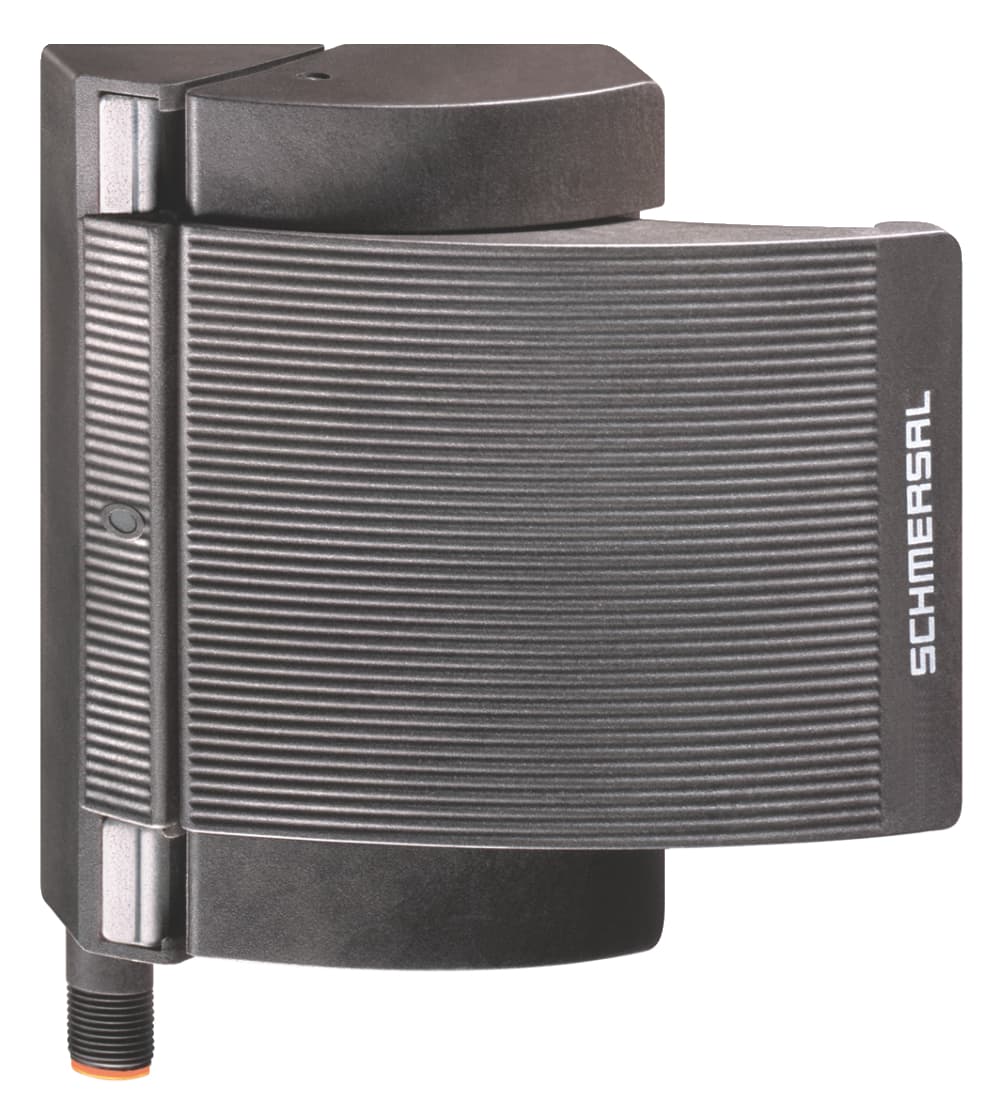

BNS-B20-12ZG-ST-L Schmersal Safety Switches
Part#:BNS-B20-12ZG-ST-L
Alt. Part#:101177733
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
BNS-B20-12ZG-ST-L Schmersal - Safety sensors; Magnetic safety sensors; Connector M12 x 1, 8-pole; Thermoplastic enclosure; Non-contact safety switch; Does not protrude into the door opening; 119,5 mm x 140 mm x 43,3 mm; Substitutes door-handle and safety switch, no further door fittin
Product Details
- Voltage type DC (direct current)
- Switching current, maximum 0.01 A
- Switching voltage, maximum 24 VDC
- Switching capacity, maximum 0.2 W
- Switching frequency, maximum 5 Hz
- Restistance to shock 30 g / 11 ms
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Ambient temperature, maximum +70 °C
- Storage and transport temperature, maximum +70 °C
- Storage and transport temperature, minimum -25 °C
- Ambient temperature, minimum -25 °C
- Degree of protection IP67
- Width of sensor 119.5 mm
- Height of sensor 140 mm
- Door weight, Hinged guard, maximal 5 kg
- Length of sensor 43.3 mm
- Ensured switch distance OFF Sar 22 mm
- Latching force 100 N
- Terminal Connector Connector M12
- Ensured switch distance ON Sao 0 mm
- Door hinge Left
- Door weight, Sliding guard, maximal 3 kg
- Actuating element Magnet
- Number of safety contacts 2
- Gross weight 105 g
- Active principle Magnetic drive
- Coding level according to ISO 14119 Low
- Standards IEC 60947-5-3, BG-GS-ET-14
- Integral System Diagnostics, status Yes
- Enclosure material Glass-fibre, reinforced thermoplastic
- Installation conditions (mechanical) quasi-flush
- Number of shutters 1
- Number of openers 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BNS-B20-12ZG-ST-L on Advantage Electric Supply is $152.00. Order now.
